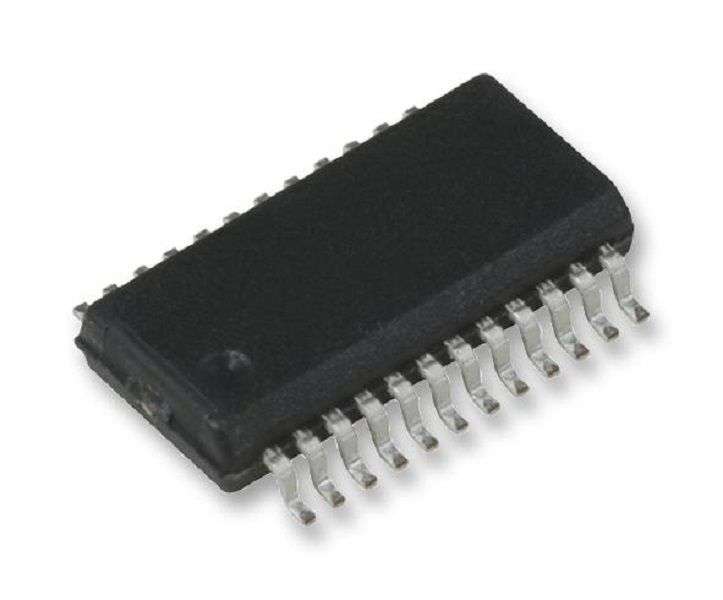

Maxim Integrated (MAX7314AEG+) I/O Expander, 400 kHz

Product OverviewThe MAX7314AEG+ is an 18 port GPIO device with LED intensity control, interruptand hot insertion protection in 24 pin QSOP package. This I2C compatible serialinterfaced peripheral provides microprocessors with 16 I/O ports plus oneoutput-only port and one input-only port. Each I/O port can be individuallyconfigured as either an open-drain current sinking output rated at 50mA and 5.5Vor logic input with transition detection. The output-only port can be assignedas an interrupt output for transition detection. An 8bit PWM current control isbuilt in for all 17 output ports. A 4bit global control applies to all LEDoutputs and provides coarse adjustment of current from fully off to fully onwith 14 intensity steps in between Each output has independent blink timing withtwo blink phases. The MAX7314 supports hot insertion. It is used in LCDbacklights, LED status indication, relay drivers, keypad backlights, RGB LEDdrivers and system I/O ports.Supply voltage range from 2V to 3.6VOperating temperature range from -40°C to 125°C400Kbps 2-wire serial interface (5.5V tolerant) and 400KHz serial clockfrequencyOutputs capable of driving LED or providing logic outputs with externalresistive pull-up up to 5.5VGlobal 16 step intensity control and individual 16 step intensity controls2-phase LED blinking and outputs are 5.5V rated open-drainInputs are overvoltage protected to 5.5VTransition detection with interrupt output and PWM clock frequency of 32KHzStandby current (interface idle, PWM disabled) of 1.2µA at TA = +25°CSupply current (interface idle, PWM enabled) of 8.5µA at TA = +25°CApplicationsLED LightingProduct InformationChip Configuration: -Bus Frequency: 400kHzIC Interface Type: I2CSupply Voltage Min: 2VSupply Voltage Max: 3.6VInterface Case Style: QSOPNo. of Pins: 24PinsNo. of I/O's: 18I/O'sProduct Range: -Automotive Qualification Standard: -MSL: MSL 1 - Unlimited
