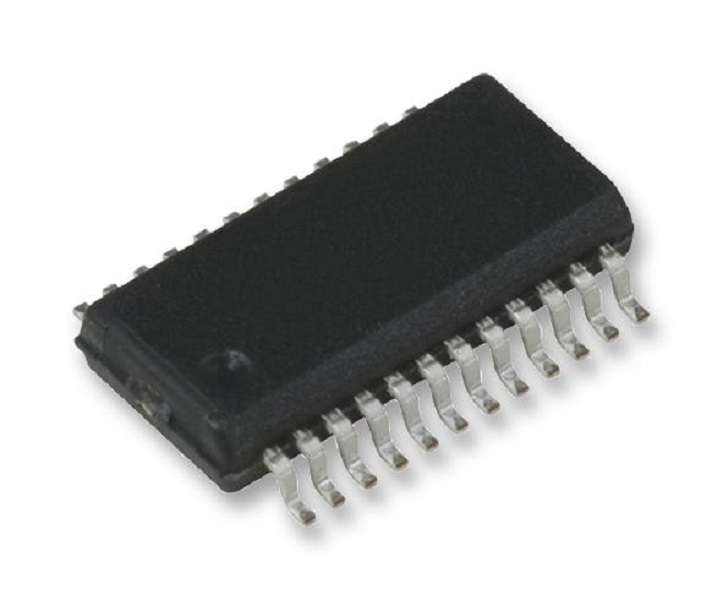

Maxim Integrated (MAX7324AEG+) I/O Expander, 400 kHz

Product OverviewThe MAX7324AEG+ is an I2C port expander with eight push-pull outputs and eightinputs in 24 pin QSOP package. The 2-wire serial interface peripheral features16 I/O ports that are divided into eight push-pull outputs and eight inputs.Each input features selectable internal pull-ups, over voltage protection to +6Vand transition detection with an interrupt output. All input ports arecontinuously monitored for state changes (transition detection). The interruptis latched and allows detection of transient changes. The push-pull outputs arerated to sink 20mA and are capable of driving LEDs.Supply voltage range is 1.71V to 5.5VOperating temperature range from -40°C to +125°C400KHz, +6V-tolerant I2C serial interfaceEight input ports with maskable, latching transition detectionSupports between read operationsINT (complementary) output alerts change on any selection of inputsLow standby current of 0.6µAProduct InformationChip Configuration: -Bus Frequency: 400kHzIC Interface Type: I2CSupply Voltage Min: 1.71VSupply Voltage Max: 5.5VInterface Case Style: QSOPNo. of Pins: 24PinsNo. of I/O's: 8I/O'sProduct Range: -Automotive Qualification Standard: -MSL: MSL 1 - Unlimited
