Maxim Integrated (MAX823TEUK+T) MPU Supervisor, 1.2V-5.5V supply

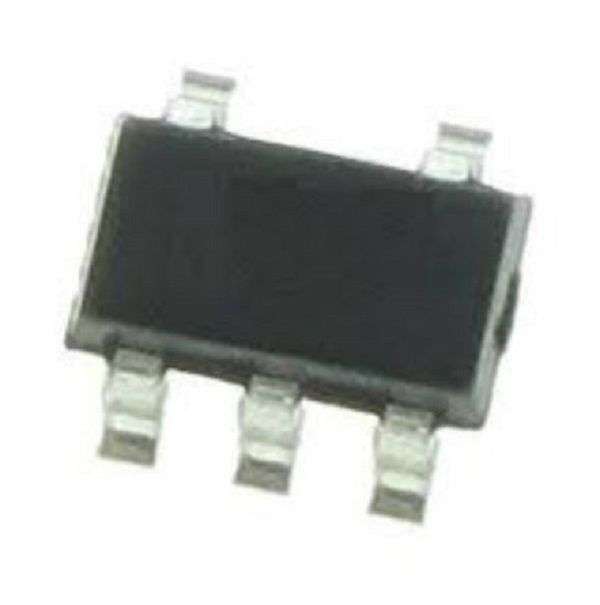

MPU Supervisor, 1.2V-5.5V supply, Active-Low, Push-Pull reset, 0.2s delay/3.08Vthreshold, SOT-23-5Product OverviewThe MAX823TEUK+T is a microprocessor supervisory circuit with watchdog timer andmanual reset in 5 pin SOT-23 package. This microprocessor's (µP's) reset inputstarts the µP in a known state and µP supervisory circuit assert a reset toprevent code execution errors during power-up, power-down and brownoutconditions. It is specifically designed to ignore fast transients on VCC andsignificantly improve system reliability, accuracy compared to separate ICs ordiscrete components.Supply voltage range is 1.2V to 5.5VOperating temperature range from -40°C to 125°CPrecision monitoring of +2.5V, +3V, +3.3V and +5V power suppliesReset threshold voltage is 3.08VWatchdog input and manual reset inputFully specified over temperaturePower on reset is 200msReset (complimentary) valid to VCC = 1VPower supply transient immunityNo external components for watchdog or reset functionApplicationsSystem Monitoring, Portable Devices, AutomotiveProduct InformationThreshold Voltage: 3.08VNo. of Supervisors / Monitors: 1MonitorsSupply Voltage Min: 1.2VSupply Voltage Max: 5.5VReset Type: Active-Low, Push-PullDigital IC Case: SOT-23No. of Pins: 5PinsDelay Time: 200msOperating Temperature Min: -40°COperating Temperature Max: 125°CMSL: MSL 1 - Unlimited
