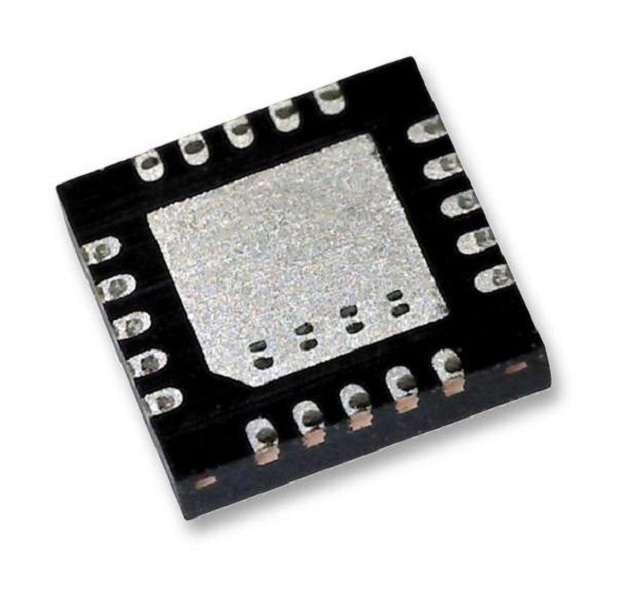

Maxim Integrated (MAX8521ETP+T) Laser Diode Driver

Product OverviewThe MAX8521ETP+T is a smallest TEC power driver for optical modules in 20 pinTQFN package. It is designed to drive thermo electric coolers (TECs) in spaceconstrained optical modules. It delivers ±1.5A output current and control theTEC current to eliminate harmful current surges. On-chip FETs minimize externalcomponents and high switching frequency reduces size of external components. Itoperates from a single supply and bias TEC between outputs of two synchronousbuck regulators. This operation allows for temperature control without 'deadzones' or other nonlinearities at low current. This arrangement ensures that thecontrol system does not hunt when set-point is very close to natural operatingpoint, requiring small amount of heating or cooling. An analogue control signalprecisely sets TEC current.Supply voltage range is 3V to 5.5VOperating temperature range from -40°C to +85°CLow profile design, on-chip power MOSFETsHigh efficiency switch mode designRipple cancellation for low noise, ITEC monitors TEC currentDirect current control prevents TEC current surges5% accurate adjustable heating/cooling current limits2% accurate TEC voltage limit, 1% accurate voltage referenceNo dead zone or hunting at low output currentSwitching frequency up to 1MHz, synchronizationApplicationsPower ManagementProduct InformationLaser Driver Type: Thermoelectric CoolerDriver Case Style: TQFNNo. of Pins: 20PinsSupply Voltage Min: 3VSupply Voltage Max: 5.5VProduct Range: -MSL: MSL 1 - Unlimited
