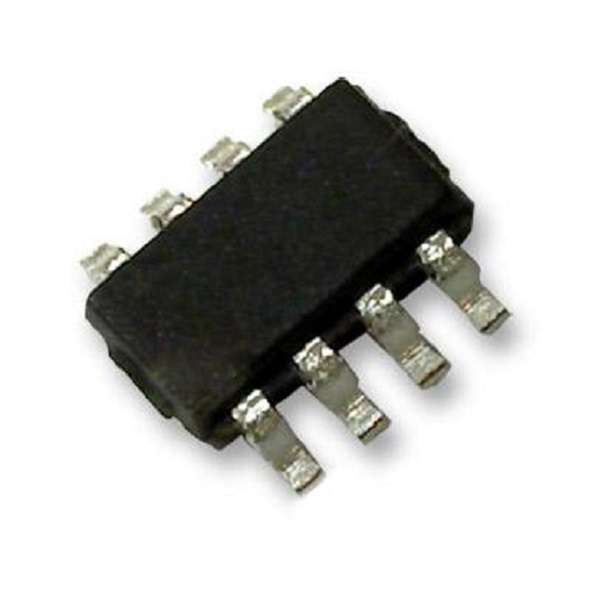

Maxim Integrated (MAX9172EKA+T) LVDS Driver, LVDS Line Receiver, 9 mA

Product OverviewThe MAX9172EKA+T from Maxim Integrated Products is a dual LVDS line receiverswith in-path fail-safe circuitry in 8 pin SOT-23 package. This low voltagedifferential signalling (LVDS) receiver is designed for high speed applicationsrequiring minimum power consumption, space and noise. It supports switchingrates exceeding 500Mbps while operating from a single 3.3V supply. This devicehas in-path fail-safe that is compatible with in-path fail-safe receivers suchas DS90LV018A and DS90LV028A. It conforms to the ANSI TIA/EIA-644 LVDS standardand converts LVDS to LVTTL/LVCMOS compatible outputs. A fail-safe feature setsoutputs high when the inputs are undriven and open, terminated, or shorted.Typical applications include multipoint backplane interconnect, laser printers,digital copiers, cellular phone base stations, LCD displays, networkswitches/routers and clock distribution.Input accepts LVDS and LVPECLFail-safe circuitry sets output high for open, undriven shorted or undriventerminated outputFlow through pin-out simplifies PCB layout500Mbps data rate3.3V supply voltage, low power dissipationSupply current is 7mAMaximum operating frequency is 300MHz (VOL(MAX) = 0.4V, VOH(MIN) = 2.7V, 40%
