Maxim Integrated (MAX9406ETJ+) Display Interface

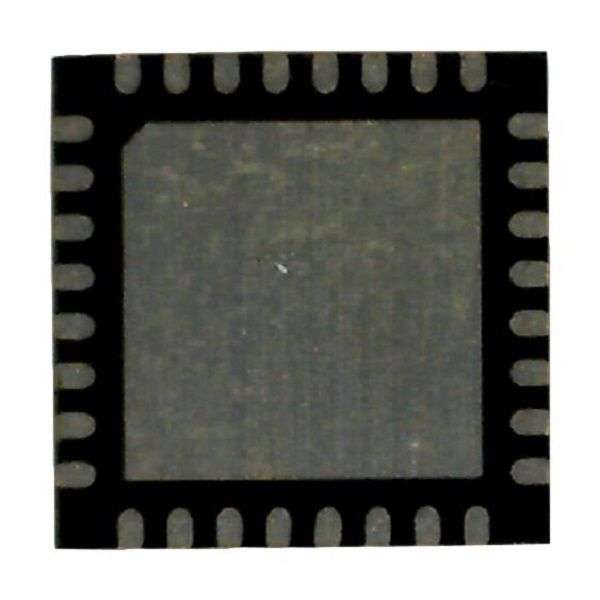

Product OverviewThe MAX9406ETJ+ is a display port to DVI/HDMI level shifter in 32 pin TQFNpackage. It is a high speed, low-skew, quad differential input to current-modelogic (CML) translator features high speed signal conversion of the DisplayPort(DP) to High-Definition Multimedia Interface (HDMI) technology. This devicefeatures ultra low propagation delay of 350ps and channel to channel skew ofless than 20ps. The MAX9406 supports typical data rates of 2Gbps. The MAX9406provides the level shift for HDMI's display data channel (DDC) and hot-plugdetection (HPD) which converts the 5V single ended logic to 3.3V single endedlogic. Typical applications include level conversion for DP to HDMI, data andclock driver and buffer, backplane data and clock distribution, base stationsand ATE.Supply voltage range is 3V to 3.6VOperating temperature range from -40°C to 85°C500mV differential HDMI output at 2Gbps data rateLow jitters of DJ = 11psP-P and RJ = 0.5psRMSLevel shifter of 5V to 3.3V for I/OsIntegrated 50 ohm input terminations and biasingApplicationsCommunications & Networking, MultimediaProduct InformationIC Interface Type: DVI, HDMISupply Voltage Min: 3VSupply Voltage Max: 3.6VInterface Case Style: TQFNNo. of Pins: 32PinsOperating Temperature Min: -40°COperating Temperature Max: 85°CProduct Range: -Automotive Qualification Standard: -MSL: MSL 1 - Unlimited
