Maxim (MAX6575LZUT+T) Temperature Sensor IC, Serial, Digital, ± 0.8°C

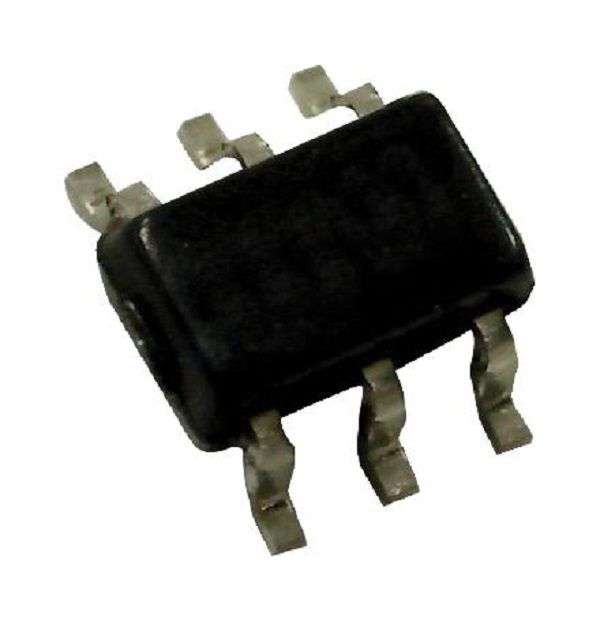

Temperature Sensor IC, Serial, Digital, ± 0.8°C, -40 °C, 125 °C, SOT-23, 6 PinsProduct OverviewThe MAX6575LZUT+T is a temperature sensor with multidrop single-wire digitalinterface in 6 pin SOT-23 package. It is a low-cost, low-current temperaturesensor with a single-wire digital interface. It features accuracy of ±3°C at+25°C, ±4.5°C at +85°C and ±5°C at +125°C. The MAX6575L is a monostable,externally triggered temperature sensor that allows a microprocessor (µP) tointerface with up to eight temperature sensors using a single control line.Temperatures are sensed by measuring the time delay between the falling edge ofthe external triggering pulse and the falling edge of the subsequent pulsedelays reported from the device. Different sensors on the same I/O line usedifferent timeout multipliers to avoid overlapping signals. It features eightdifferent timeout multipliers these are selectable by using the two time-selectpins on each device. It provides four delays ranges less than 50ms.Supply voltage range is 2.7V to 5.5VOperating temperature range from -40°C to 125°CTimeout multipliers of 5µs/°K, 20µs/°K, 40µs/°K, 80µs/°KSimple single wire interface to µP or µCLow 150µA (typ) supply currentApplicationsSensing & Instrumentation, Portable Devices, Communications & NetworkingProduct InformationIC Output Type: DigitalSensing Accuracy Range: ± 0.8°CSensing Temperature Min: -40°CSensing Temperature Max: 125°CSensor Case Style: SOT-23No. of Pins: 6PinsSupply Voltage Min: 2.7VSupply Voltage Max: 5.5VProduct Range: -MSL: MSL 1 - Unlimited
