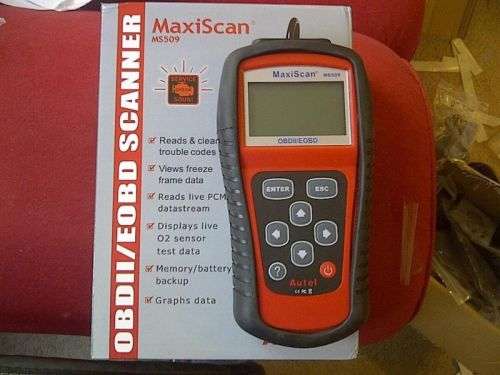

MaxiScan MS509 OBDII OBD2 Diagnostic Scanner
Brand New Boxed.
Does majority of vehicles.
Reads, diagnoses and turns off engine faults (lights)
R980 each
Available for Countrywide Postage.
Registered Letter R30 (5-7 days)
Economy Courier (Major Centres only) R60
Speedpost overnight to counter R82
Overnight Courier to Door (only Jhb, Pta, Bloem, Kimberley, Nelspruit, Dbn, PMB, Pietersburg) R75
Overnight Courier to Door (only C. Town, PE, EL & George) R85
Door Courier to All other areas (1-2 day delivery) R100
Included in this package:
Ms509 Code Reader
Instruction Manual CD with DTC definitions
User's Manual and update program
Computer USB connecting lead
OBD2 lead
Handy carry case
MaxiScan MS509
The MS509 OBDII/EOBD Code Reader supports all nine OBDII test modes on all OBDII EOBD compliant vehicles to enable technicians and home users to accurately diagnose even the toughest problems.
Sophisticated yet easy-to-use, this hand-held scanning tool enables fast and easy access to engine based EOBD Fault codes. The CAN enabled tool gives clear, concise DTC definitions on its large back-lit LCD screen retrieves generic P0, P2 and P3 and U0 codes for engine emissions and also picks up manufacturer specific P1, P3 and U1 codes.
Turns off MIL light, Stores freeze frame data for later evaluation and will also display monitor and I/M readiness status.
Product Features & Functions:
Works on all 1996 and later OBDII compliant US, European and Asian vehicles
Easily determines the cause of the Check Engine Light ( MIL)
Retrieves generic (P0, P2, P3, and U0) and manufacturer specific (P1, P3, and U1) codes
Turns off Check Engine Light (MIL), clears codes and resets monitors
Displays DTC definitions on unit screen
Views freeze frame data
Displays monitor and I/M readiness status (emissions)
Identifies pending codes
Reads live PCM datastream
Displays live O2 sensor test data
Graphs data C (1996 and newer)
Reads, stores & playbacks live sensor data
Memory/battery backup for off-vehicle data review and analysis
Multilingual menu and DTC definitions--- English, Spanish, French,German and etc
Performs modules present test
Retrieves vehicle information (VIN, CIN and CVN)
Supports CAN (Controller Area Network) and all other current OBD-II protocols
Built-in OBD-II DTC lookup library
Large easy-to-read backlit LCD screen
Software upgradeable via internet
Prints data via PC
Works with the following:
OBDII/EOBD coverage(US, Asian & European) Reads & clears generic and some maunfactures trouble codes.
Supported Protocols
ISO 15765-4 CAN (29 bit ID, 250 kbaud)
ISO 15765-4 CAN (11 bit ID, 250 kbaud)
ISO 15765-4 CAN (29 bit ID, 500 kbaud)
ISO 15765-4 CAN (11 bit ID, 500 kbaud)
ISO 14230-4 KWP 2000 (fast init, 10.4 kbaud)
ISO 14230-4 KWP 2000 (5 baud init, 10.4 kbaud)
ISO 9141-2 (5 baud init, 10.4 kbaud)
SAE J1850 VPW (10.4 kbaud)
SAE J1850 PWM (41.6 kbaud)
