SELECTED OPTION:
MODEL: MT900COMBO

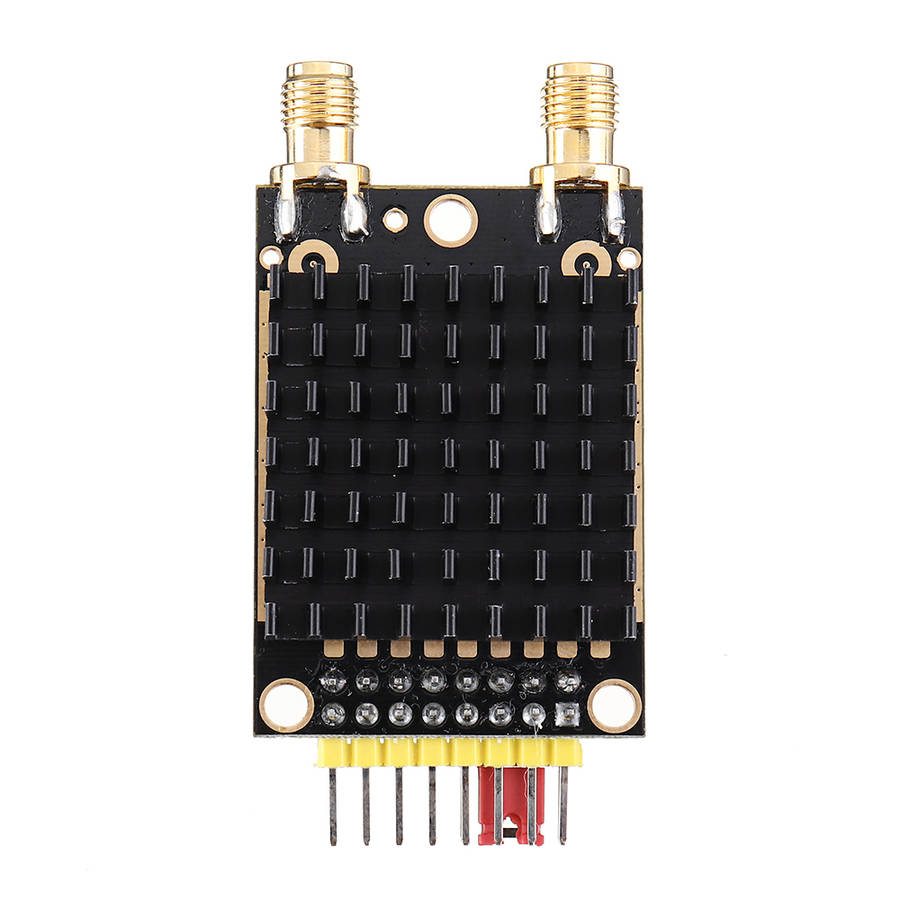

Description: ? ? ? The Mayatech MT900 is a high performance ISM band wireless modem. Operating frequency range 902 MHz a?? 928 MHz. It is a communication device that can be used for long-distance data transmission. This device has been used in Autopilot (APM) and paparazzi.
Specifications: Brand Name: Mayatech
Item Name: MT900
Version: Only MT900 module, MT900 Combo (optional)
Operating Frequency Range: 902 - 928MHz
Outdoor ZUI Large Communication Distance:?>40km (transmit power adjustable)
Operating Temperature: -40a?? ~ +85a??
RF Port: RP-SMA Communication Port: RS 232 interface Power Port: +5V, 800mA peak' (maximum transmit power) I/O: 6 General' Purpose I/O (Digital, ADC, PWM)
RF Output Power: 1W (+30 dBm), which can be increased or decreased by 1dB through software. Over-the-air Data Transfer Rates: 4, 8, 16, 19, 24, 32, 48, 64, 96, 128, 192 and 250 kbit/sec (64K/128K default) Receive Sensitivity: > 121 dBm at low data rates, high data rates (TBA) Size: 30x57X12.8mm
Weight: 15g/single module
Features: - Dual antenna design automatically switches one of the antennas based on signal quality. - Low-pass filtering with low-pass amplifier with greater than 20DB. - Data air transmission rate up to 250kbps. - Support dual antenna.

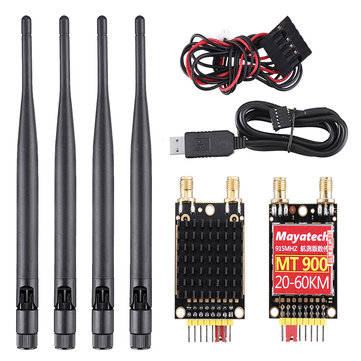

Package Included: 1x?Mayatech MT900 Module
or 2x?Mayatech MT900 Module

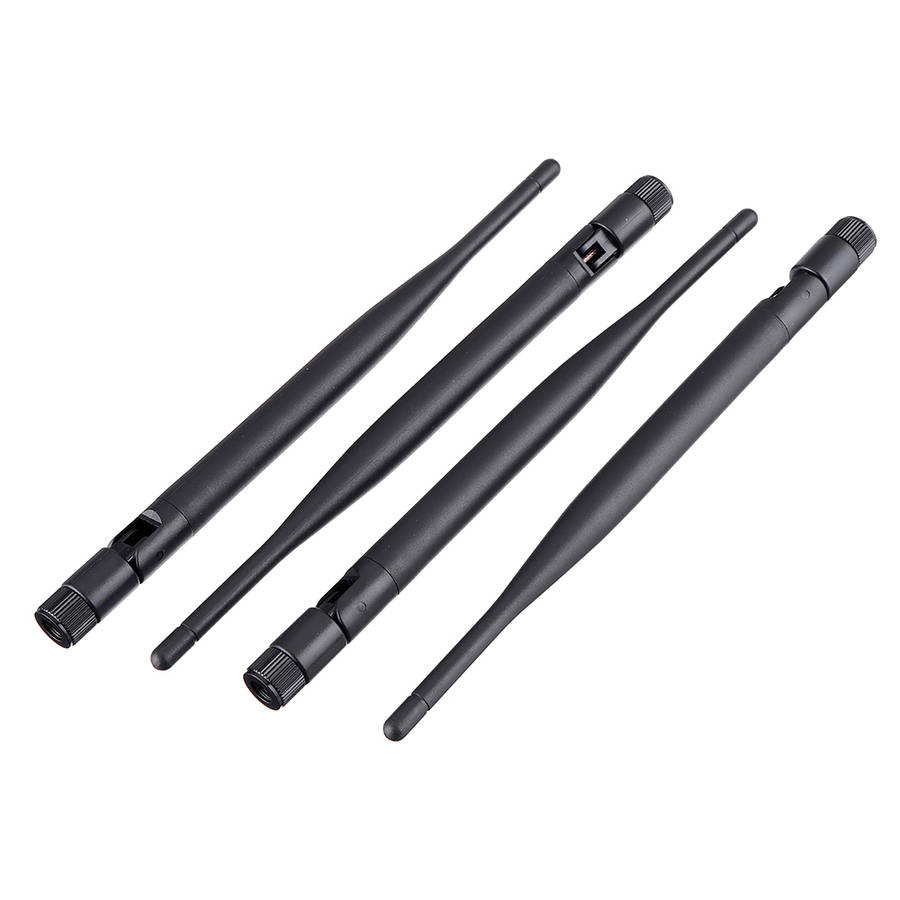

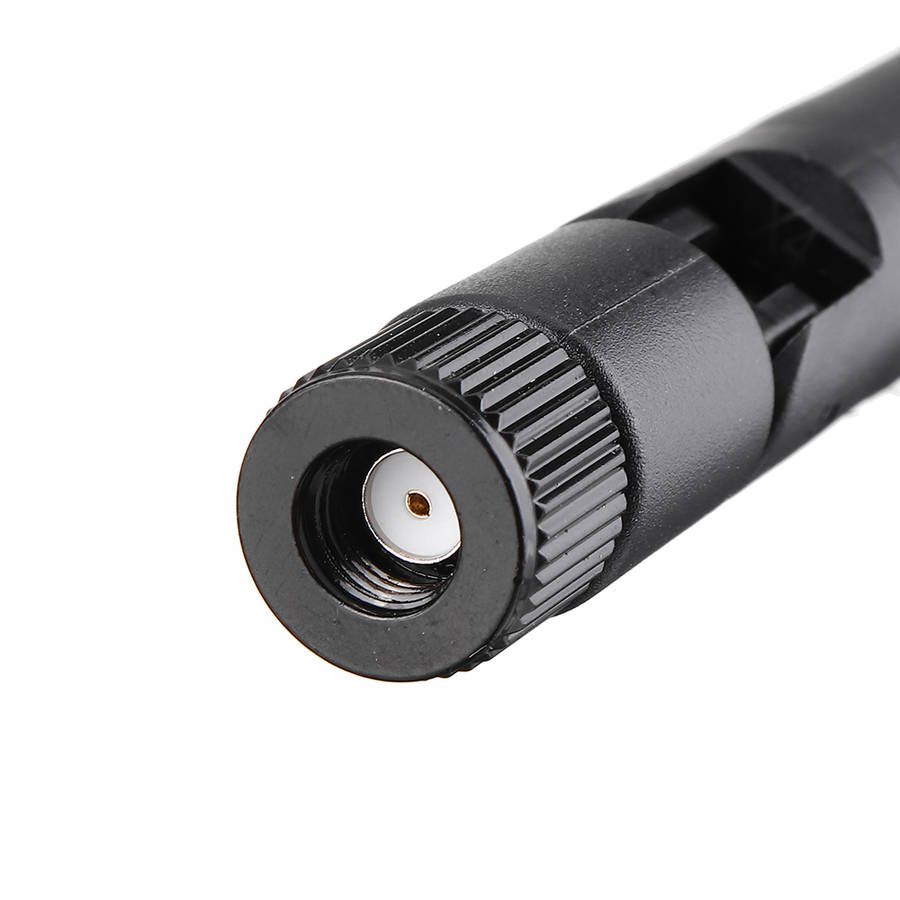

4x Antenna

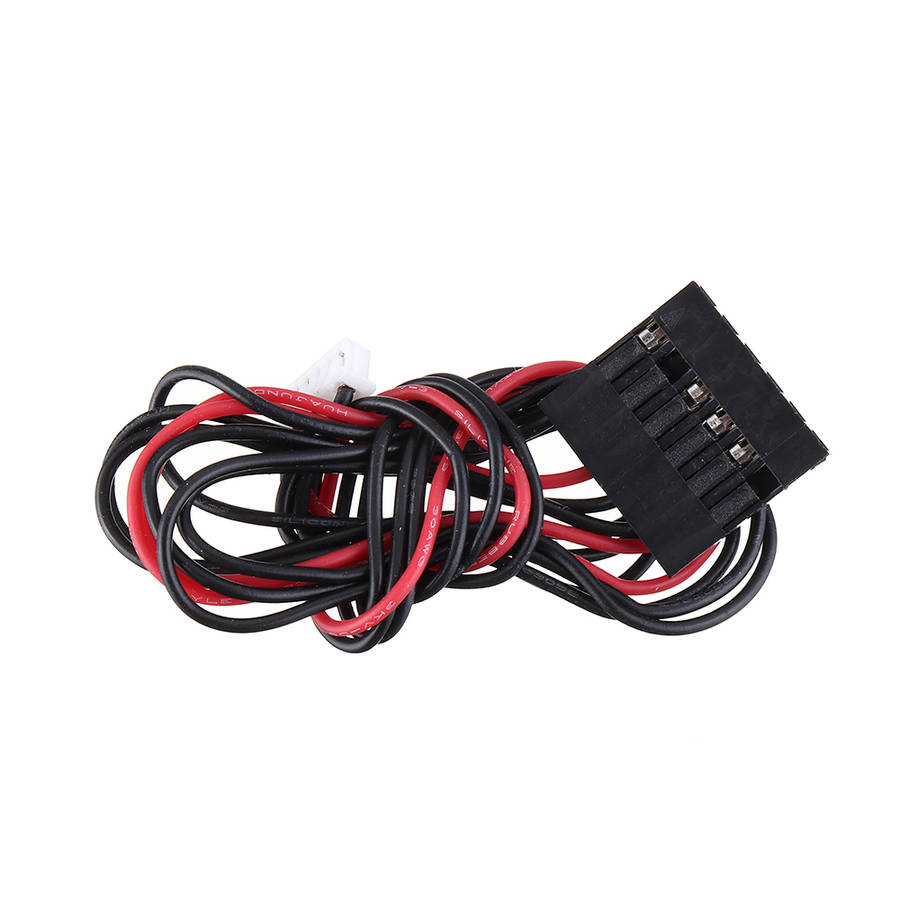

1x Connecting Cable?

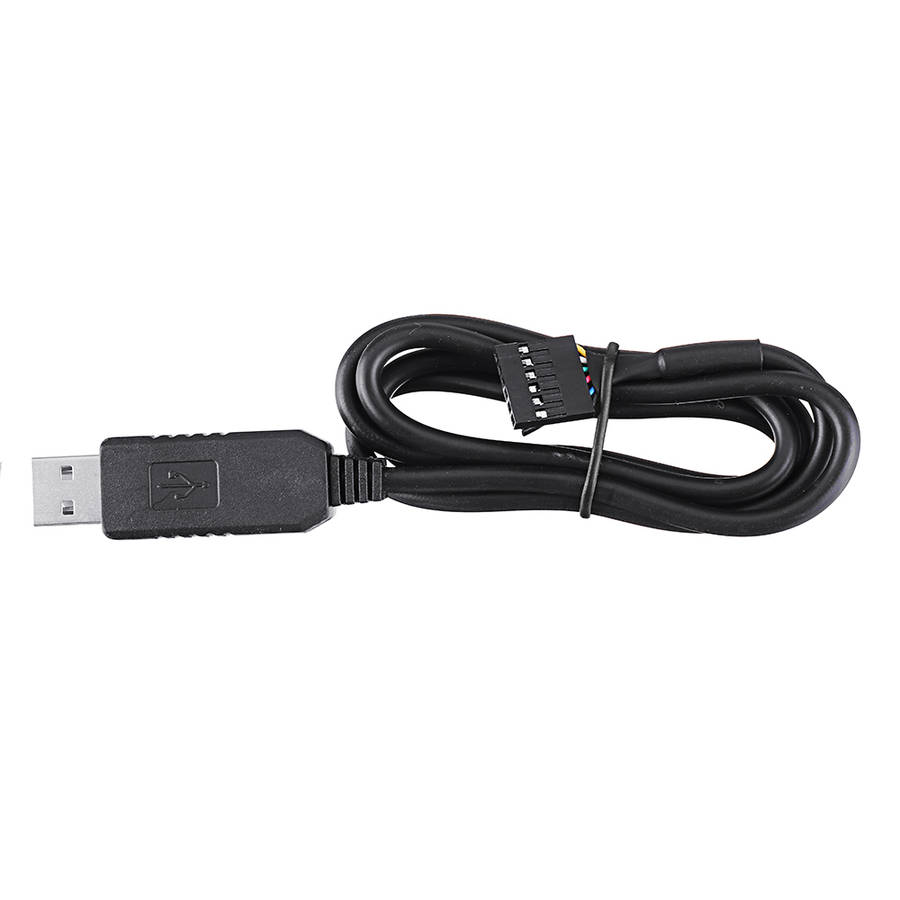

1x Data Cable
