Mayatech RFD900X 915Mhz 3DR Radio Telemetry Modem Module UAV 40KM Ultra L... (MODEL: FULLSETVERSION)
Sold

Mayatech RFD900X 915Mhz 3DR Radio Telemetry Modem Module UAV 40KM Ultra L... (MODEL: FULLSETVERSION)

10 were available / new
R2,899.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
553517656

SELECTED OPTION:
MODEL: FULLSETVERSION


With more and mora demand of aerial survey UAV, the problem of needing a suitable data transmission is growing. Our company has been engaged in aerial survey operations for a long time, and has been surching for asuitable data transmission radio. However, the cheap stuff on the market are unstable and unreliable. So we tested all the radios on the market, and the result of countless flight test led us to this module. Stable performance, affordable price and compatable to PIX APM flight control.

Description:
Brand: Mayatech
Model: RFD900X

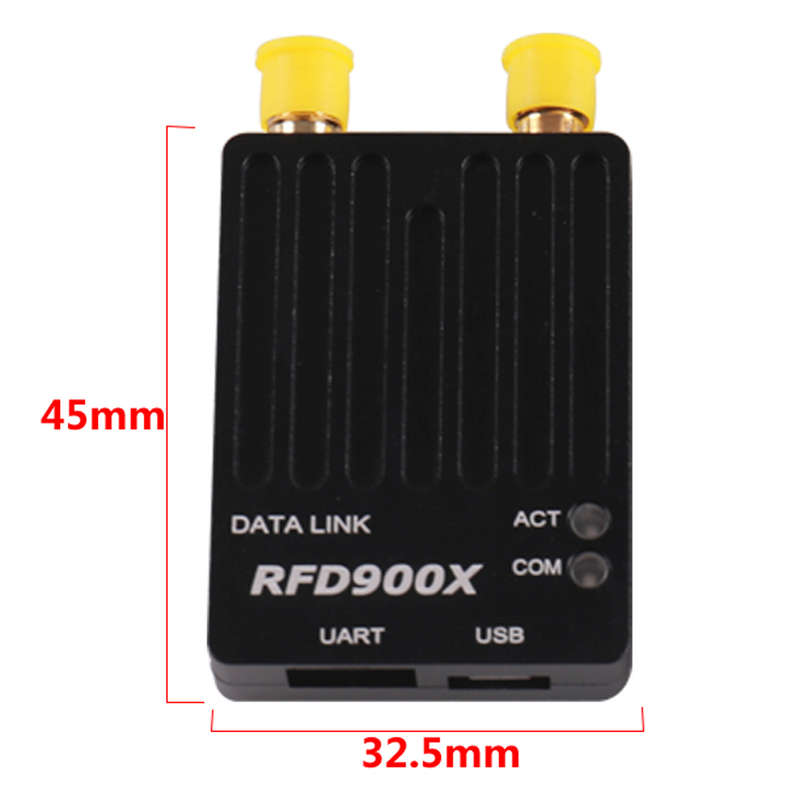

Communication rate: 4,8,16,19,24,32,48,64,96,128,192 and 250 kbps. Transmitting power: 0 to 30 dBm, 1 dBm stepping adjustable. Power supply voltage rated 5V minimum 4V maximum 5.5V; Emission current: 1A (maximum power mode); Acceptance current: 60 mA; Working temperature: - 40 to + 85 degrees Celsius; Dimensions: 32.5 mm * 53 mm * 9.5 mm Weight: 23g

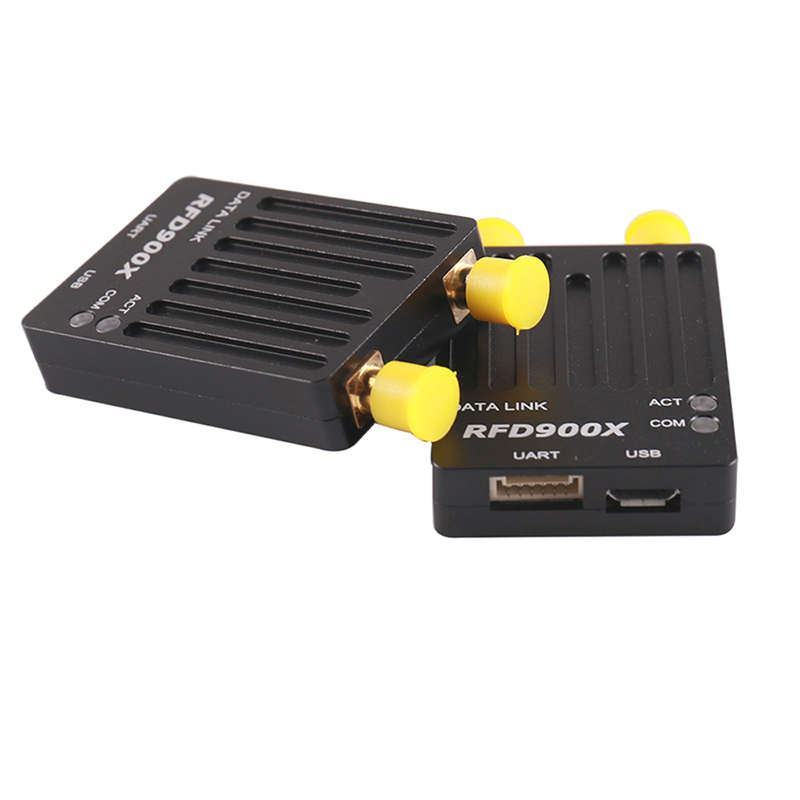

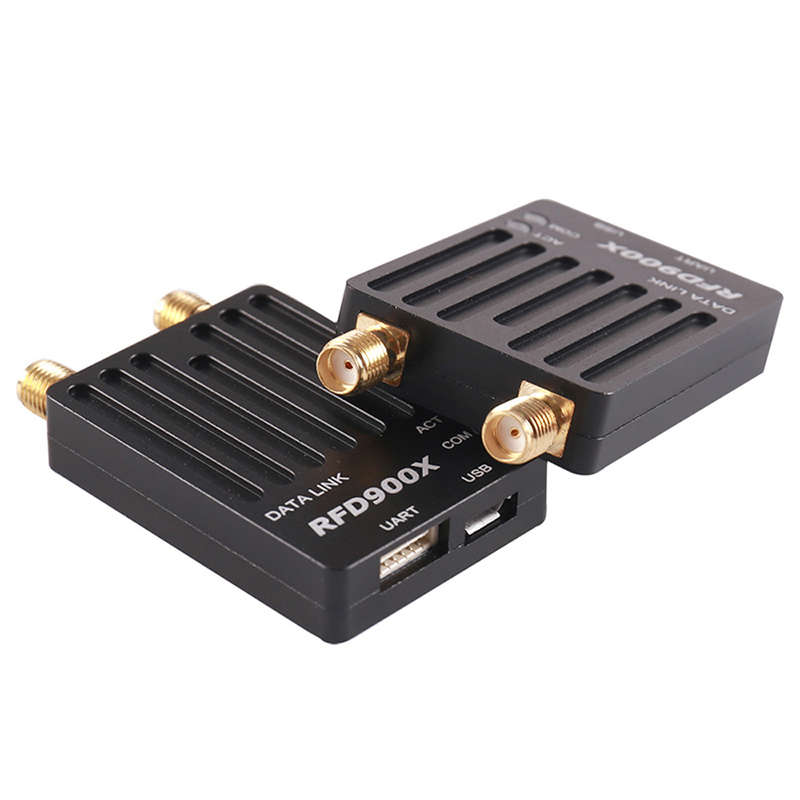

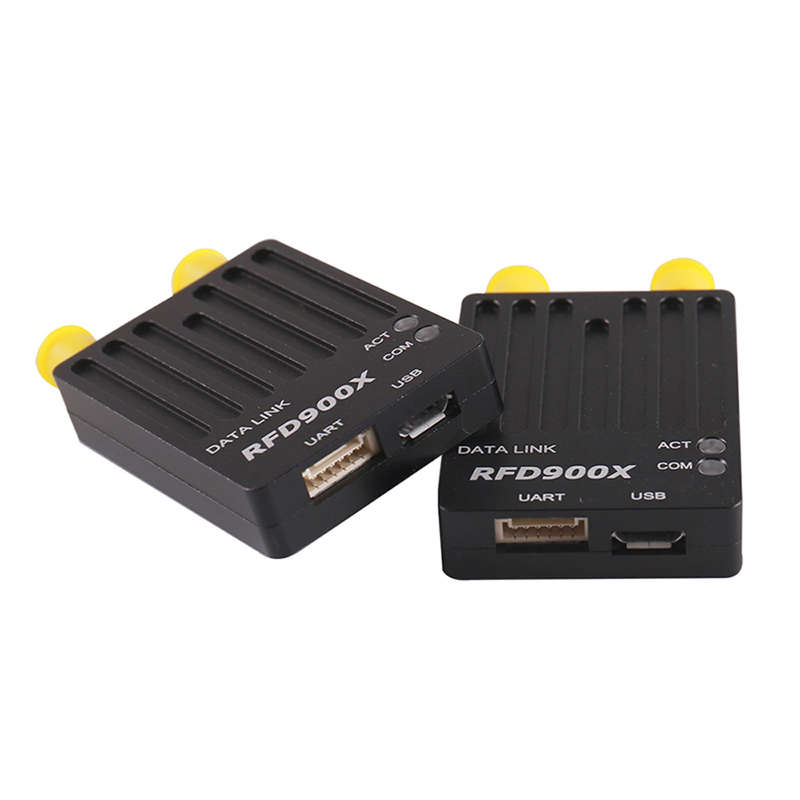

RFD900X is a compact wireless data transmission module with excellent performance 1. No distinction between transceiver design, each module is integrated with USB serial chip, USB and UART interface automatic switching, USB priority. 2. Working frequency range 902-928 MHz, ISM band. 3. The transmitter circuit is designed with a low noise amplifier larger than 20DB and a low pass filter unit is added. 4. Adjustable transmitting power, maximum 1W. 5. Acoustic meter filter is used to filter spurious signal in receiving circuit. 6. Outdoor communication distance can reach 40 km or more in straight line and 500 M-1 km in indoor distance. 7. Air data rates can reach up to 250 Kbps.
8. Dual Antenna interface, supporting antenna diversity, differential antenna configuration. 9. Support AT command configuration for local radio station and RT command configuration for remote radio station. 10. It has the function of module temperature monitoring and adjusts automatically according to the duty cycle of temperature to avoid overheating. 11. CNC metal shell is conducive to module heat dissipation and more stability. 12. The plug with lock is not easy to fall off.

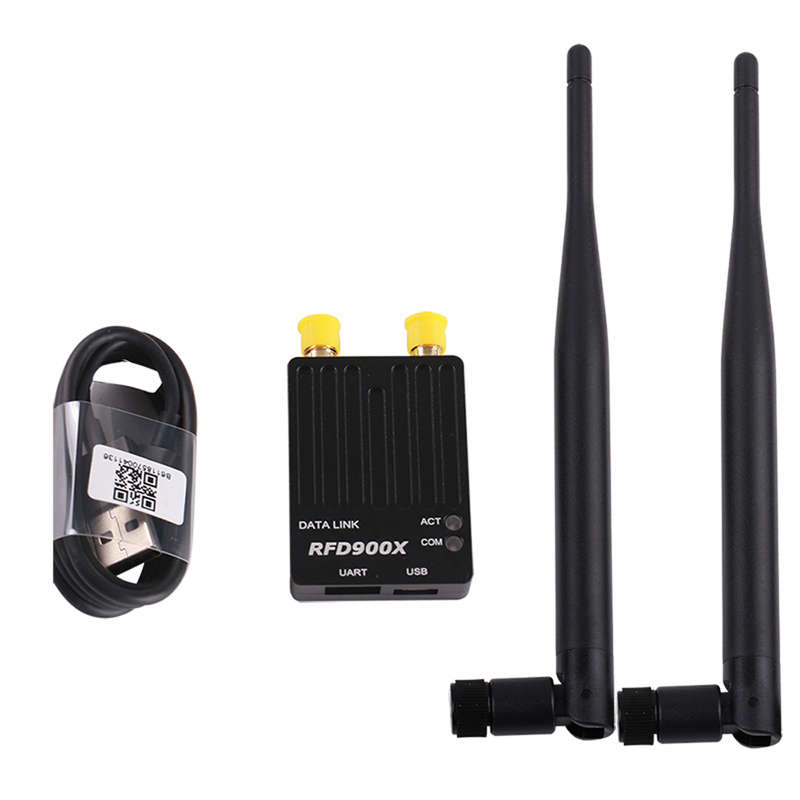

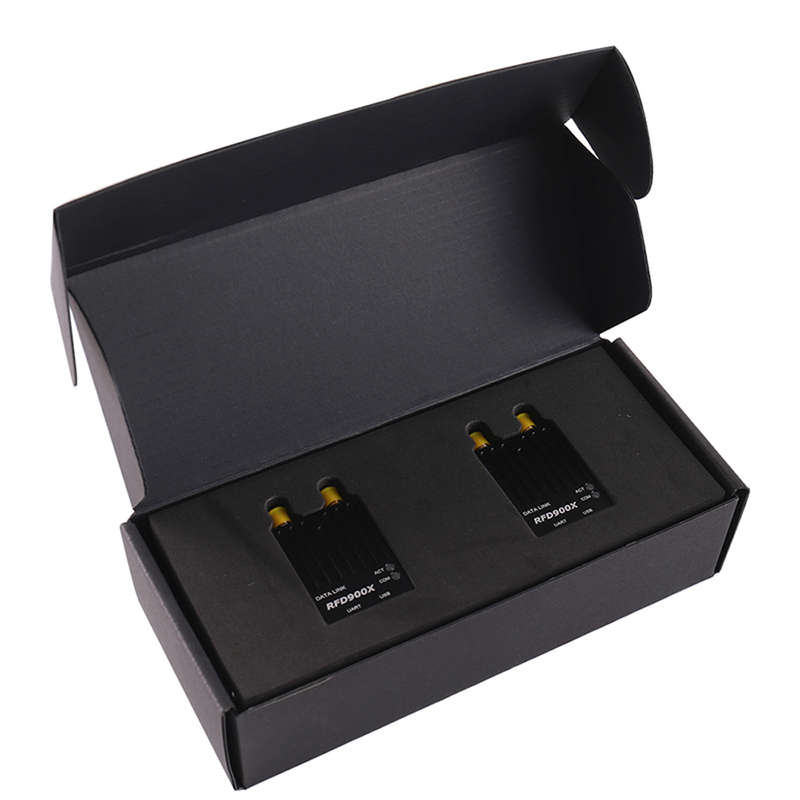

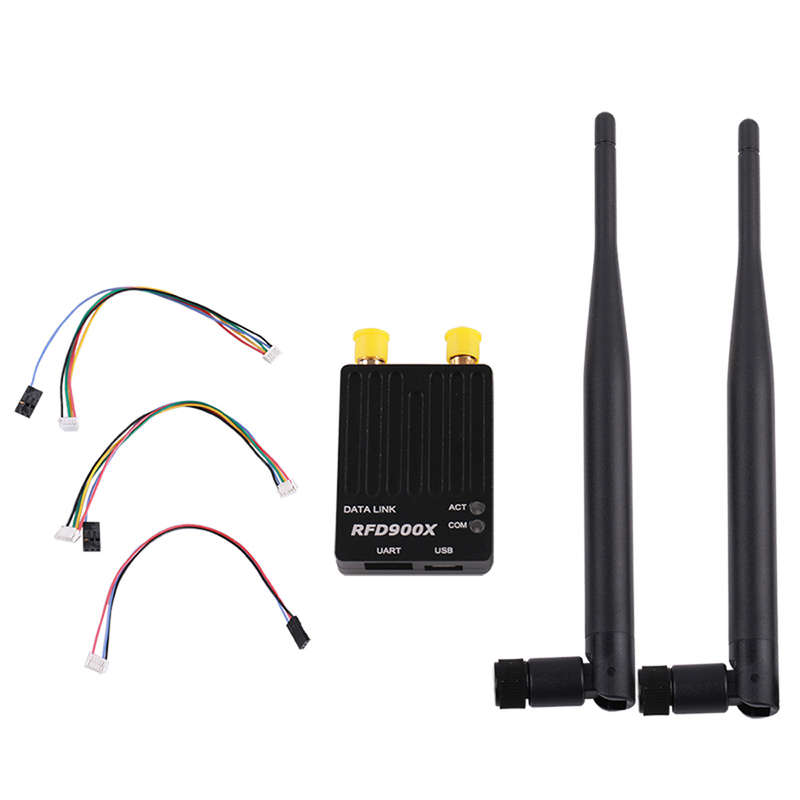

Package Included:
1x Mayatech? RFD900X Module
