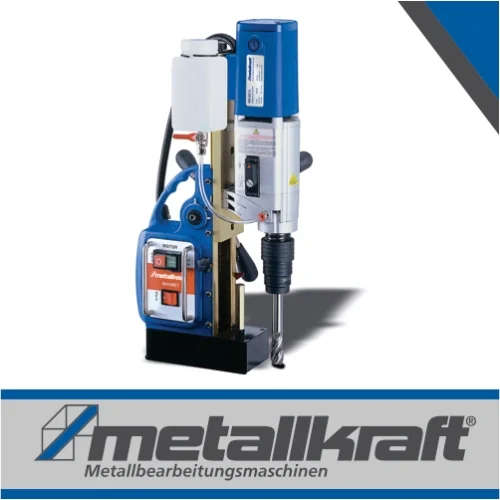

Magnetic core drill
Technical specifications
Drill Ø max. with core drill 35 mm
Drilling depth max. with core drill 50 mm
Drill Ø max. Full drill bit with adapter & drill chuck mounted 13 mm
Drilling depth max. Full drill bit with adapter & drill chuck mounted 110 mm
Spindle taper firmly
Recording Weldonschaft 19 mm
Speed (s) 330 1 / min
engine power 1100 W
Electrical voltage 230V
Phase (s) 1 Ph
Current Type ~
power frequency 50 Hz
Magnetic holding power 15000 N
Dimensions magnetic base 180 x 80 mm
Dimension max. 280 x 205 x 395 mm
Weight (device) 13.7 kg
Sound pressure level Lp 94 dB (A)
Sound power level Lw 107 dB (A)
Measurement uncertainty K 3 dB (A)
vibration
description
MB High-quality magnetic core drilling machines for versatile use
For core drills with 19 mm Weldon shank
Stable drill guide due to the long and especially deep mounted quill holder
Device is earthed and double insulated, making it ideal for the job site
High magnetic holding force
High quality construction
The coolant is passed through the drill
Conversion from core drilling to full drilling in just a few steps
Safe and reliable functions
Special features MB 202 G
Integrated and automatic coolant supply
Reversal of the direction of rotation of the tap without changing the direction or stopping the motor
3 functions: thread cutting, core drilling and solid drilling
Room amenities:
Integrated autom. Coolant supply
Change of direction of the tap
(without changing direction or stopping the motor) 3 functions: thread cutting, core drilling and solid drilling
Optimum stable drill guide due to long-dimensioned and particularly deep mounted quill guide
Conversion from core drilling to full drilling in just a few steps
Scope of delivery & equipment
1 coolant tank and coolant line
1 protection device
operating tool
Plastic carrying case
