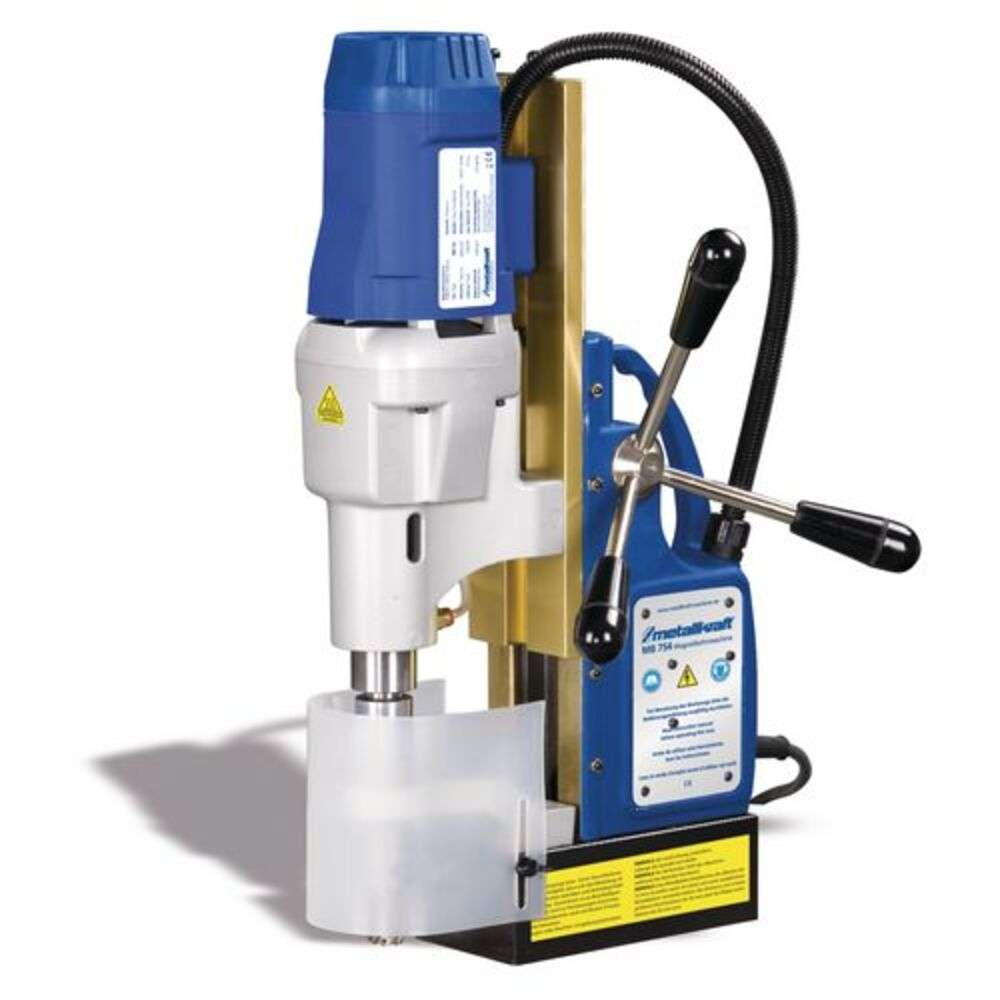

MB754 MAGNETIC DRILL
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
Description
Magnetic drilling machine
Technical Specifications
Max. drill / Core drilling 75 mm
Max. drilling depth / Core drilling 50 mm
Max. drill / Full drilling directly mounted 32 mm
Max. drilling depth / Full directly mounted 150 mm
Max. drill / Full drilling adapter and drill chuck 16 mm
Max. drilling depth / Full drilling adapter and drill chuck 110 mm
Spindle chuck MK 3
Weldon shaft holder 19 mm
Speed under load 90 / 120 / 180 / 230 rpm
Motor output 2 kW
Electrical connections 230 V
Phase(s) 1 Ph
Kind of current ~
Mains frequency 50 Hz
Magnetic holding force 32000 N
Magnetic foot dimensions 200 x 100 mm
Max. dimension 330 x 125 x 476 mm
Weight 24.8 kg
Sound pressure level 97 dB(A)
Sound power level 110 dB(A)
Uncertainty of measurement K 3 dB(A)
Vibration
Description
High-quality magnetic core drilling machines for versatile use. Drilling large diameters economically and rapidly.
For core drills with 19 mm Weldon shaft
Stable drilling guidance thanks to long and especially deep-mounted spindle sleeve guidance
Device is earthed and double isolated, hence ideal for building sites
High magnetic holding force
Highest-quality design
The coolant is routed through the drill
Conversion from core to full drilling in just a few actions
Safe and reliable function
Special features MB 754
4 speeds
with 2000 Watt motor
Max. magnetic holding force of 32,000 N
With spindle chuck MK 3
Clockwise/Anti-clockwise rotation
Features:
Four speeds
With 2000 Watt motor
Max. magnetic holding force of 32,000 N
With spindle chuck MK 3
Clockwise/Anti-clockwise rotation
Multiple speed ranges adjustable
Conversion from core to full drilling with just a few actions
Delivery Information
Coolant tank and coolant line
Protection device
Operating tool
Plastic carrying case
Chain
clearing cotter
