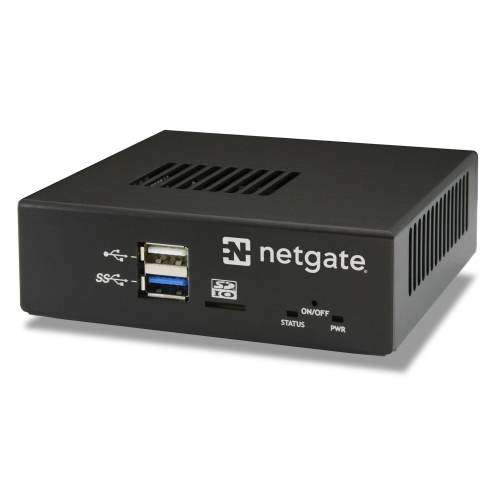

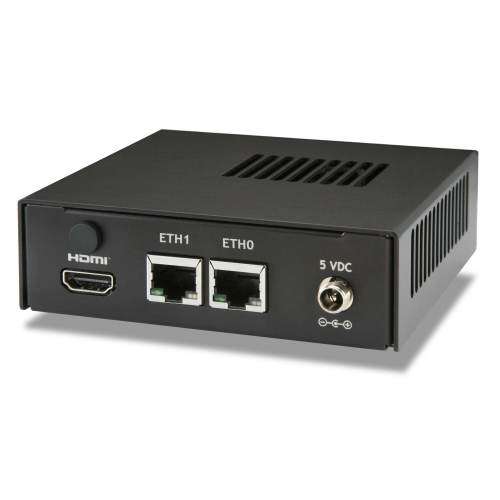

MinnowBoard Turbot Dual Ethernet Quad Core System
This system features a Quad Core Intel® Atom™ E3845 1.91 GHz CPU. The system includes 2GB RAM, a 32 GB M.2 SSD, SIM socket, USB & HDMI ports, as well as high speed and low speed MinnowBoard connectors for expansion using any MinnowBoard Lure.
CPU:
Intel® Atom™ E3845 (4 x 1.91 GHz, 1MB cache, AES-NI)
DRAM:
2GB DDR3L 1067MT/s, Memory down (non expandable)
Networking:
2x 1Gb Ethernet RJ45, based on Intel i210
Storage:
32GB M.2 SSD included (no OS)
I/O Connectors:
1x USB 2.0 host (Type-A)
1x USB 3.0 host (Type-A)
8x buffered GPIO
Console:
HDMI, serial via FTDI header
Boot Loader:
TianoCore UEFI / CoreBoot / SeaBIOS
Battery:
BR1225 or CR1225 RTC backup battery (included)
Certifications:
FCC Part 15 Class A, CE Class A, IEC-60950, RoHS/WEEE
Power:
5VDC, 5A via coaxial power jack (threaded locking connector)
