SELECTED OPTION:
TYPE: HANDLETYPE
Paramters:

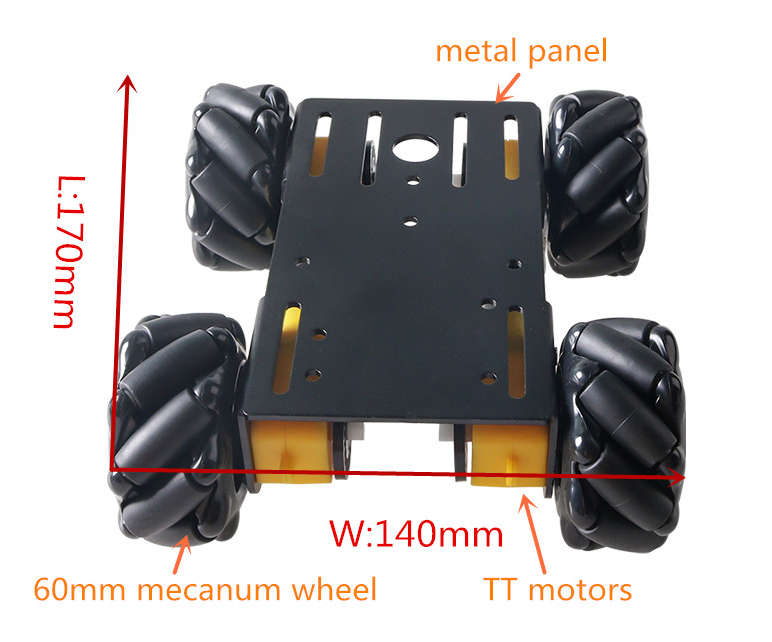

a Name: MC100 four-wheel drive metal smart car chassis
a Aluminum alloy panel material: 2mm
a Surface treatment: sandblasting oxidation
a Panel color: silver/black/blue

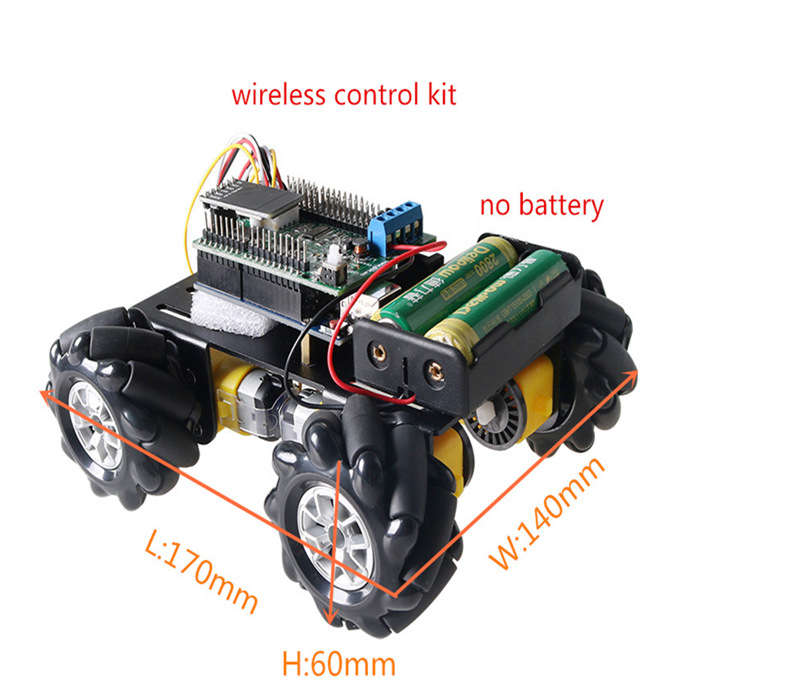

a Size: 170 * 140 * 60 mm (length * width * height)
a Motor: TT motor
a Wheels: 60 mm mecanum omni wheel
a Weight: about 380g

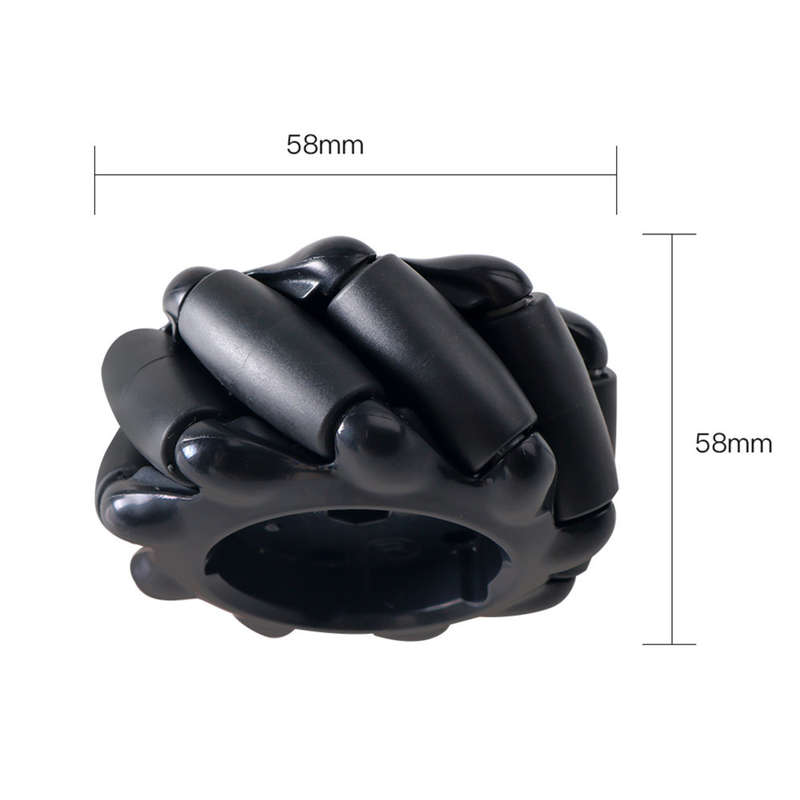

60mm Mecanum wheel:
a Name: 60mm mecanum omni wheel
a Colour: Black
a Material: plastic
a Inner wheel diameter: 35.5 mm
a Outer wheel diameter: 60 mm
a Thickness: 27 mm
a Number of sub-rounds: 9
a Carrying capacity: 10 kg (4 wheels)
Motor parameters:
a The best voltage at 3-6V is 6V (recommended)
a 1:48, faster
a 1:120, the speed is also slightly slower
a Voltage: 6 v
a No-load current: a250 ma rpm
a Idling speed: 240±10%
a Voltage: 3v
a No-load current: a170 ma rpm
a Idling speed: 110±10%
Package Included: (battery is not included,and choose one controller type you wanted)
one set MC100 4WD Wheeled Trolley
