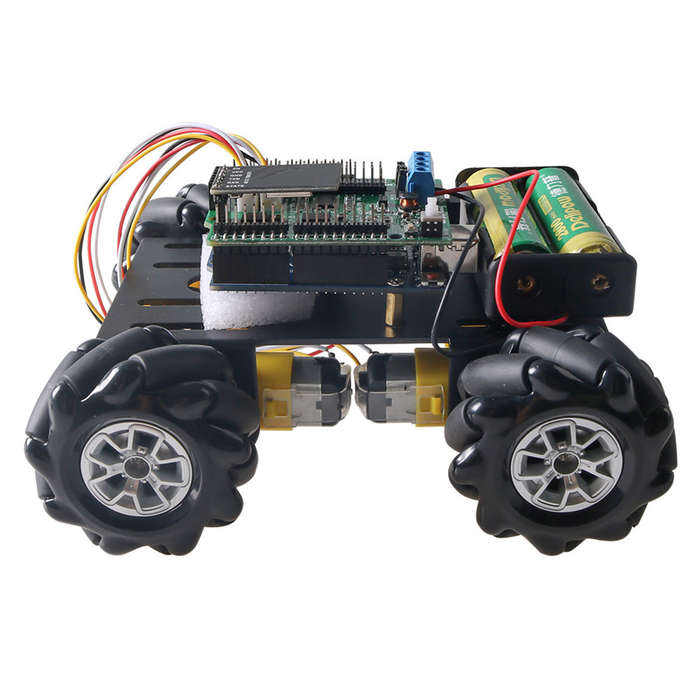

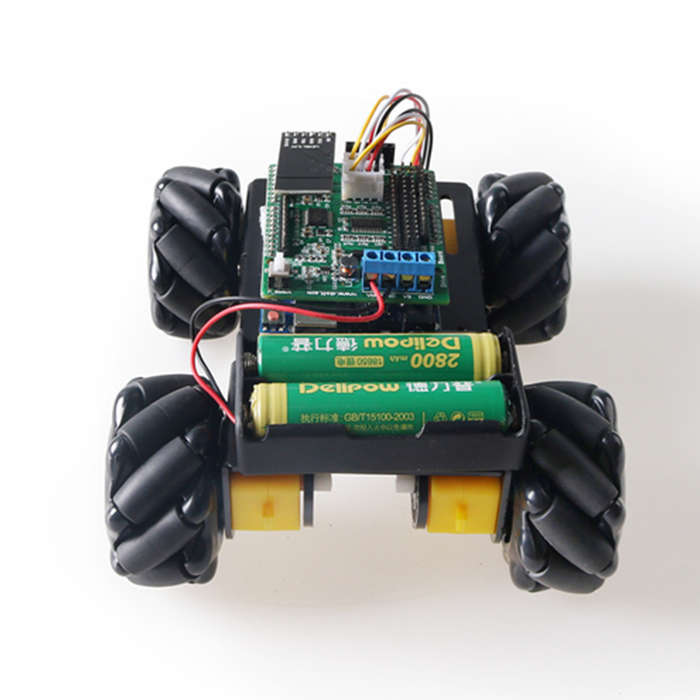

MC100 4WD Wheeled Trolley Smart Car Kit with Mecanum Wheel 1:48 Reduction Rati... (TYPE: HANDLETYPE)

SELECTED OPTION:
TYPE: HANDLETYPE

Paramters:

a Name: MC100 four-wheel drive metal smart car chassis

a Aluminum alloy panel material: 2mm

a Surface treatment: sandblasting oxidation

a Panel color: silver/black/blue

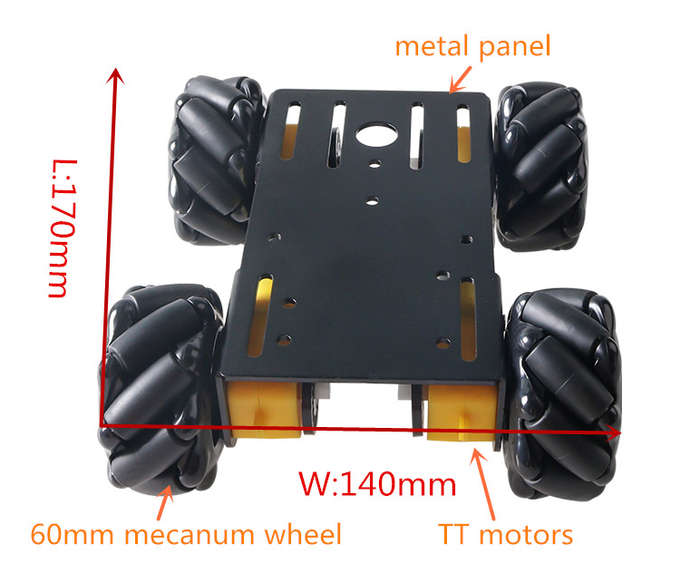

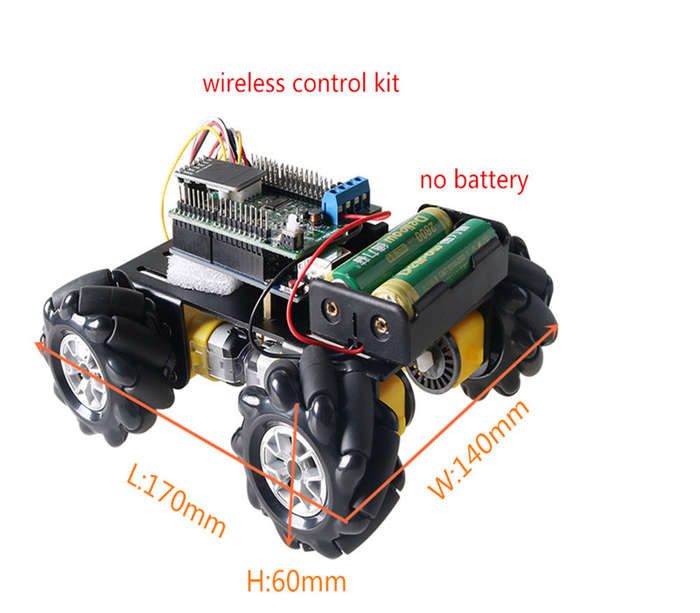

a Size: 170 * 140 * 60 mm (length * width * height)

a Motor: TT motor

a Wheels: 60 mm mecanum omni wheel

a Weight: about 380g

• Control type: WIFI/Bluetooth/Handle

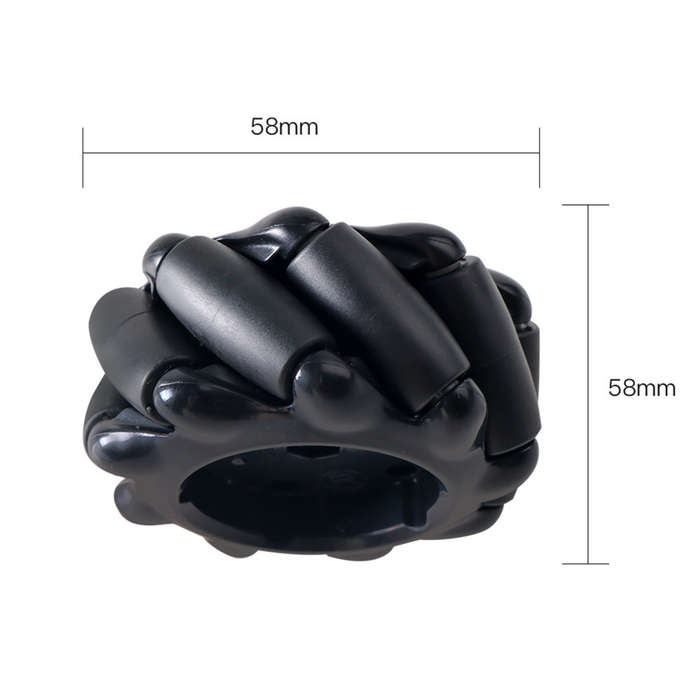

60mm Mecanum wheel:

a Name: 60mm mecanum omni wheel

a Colour: Black

a Material: plastic

a Inner wheel diameter: 35.5 mm

a Outer wheel diameter: 60 mm

a Thickness: 27 mm

a Number of sub-rounds: 9

a Carrying capacity: 10 kg (4 wheels)

Motor parameters:

a The best voltage at 3-6V is 6V (recommended)

a 1:48, faster

a 1:120, the speed is also slightly slower

a Voltage: 6 v

a No-load current: a250 ma rpm

a Idling speed: 240±10%

a Voltage: 3v

a No-load current: a170 ma rpm

a Idling speed: 110±10%

Package Included: (battery is not included,and choose one controller type you wanted)

one set MC100 4WD Wheeled Trolley
