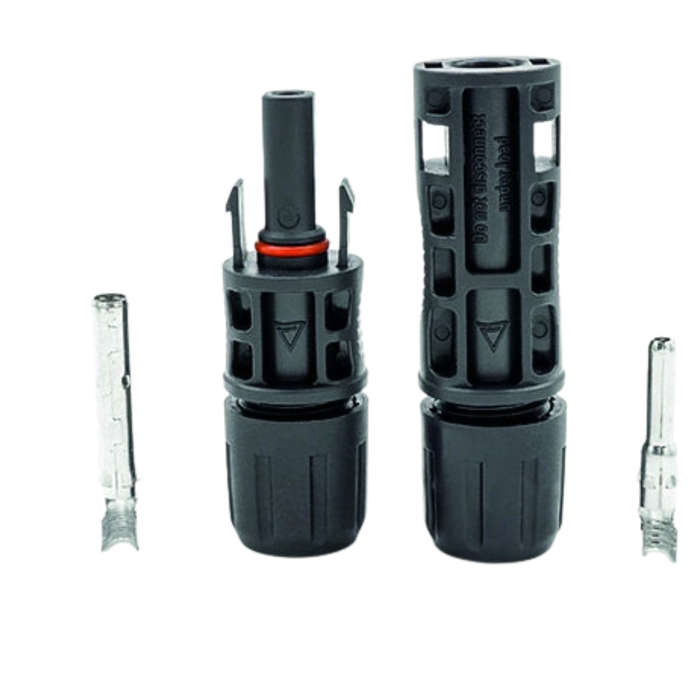

MC4 1-1 Male/Female Connector
This pair of MC4 Solar Connectors (Male & Female) is designed for safe and reliable DC cable connections in solar photovoltaic systems. Rated at 1000VDC and 30A, they offer weather-resistant, high-performance connections for both residential and commercial solar installations. These connectors are made from durable materials to withstand harsh outdoor conditions, and are compatible with industry-standard MC4 crimping tools for proper installation.
Features:
Male & Female MC4 Connector Set
Rated Current: 30A
Rated Voltage: 1000VDC
Temperature Range: -40°C to +90°C
UV and weather-resistant construction
Secure locking system prevents accidental disconnection
Designed for PV cables (use with MC4-approved crimping tools)
Specifications:
Rated Voltage: 1000V DC
Rated Current: 30A
Contact Material: Tinned Copper
Insulation Material: PPO (Polyphenylene Oxide)
Contact Resistance: 0.5 m
Temperature Range: -40°C to +90°C
Cable Compatibility: 2.5mm² / 4mm² / 6mm² (1210 AWG)
What's in the box:
MC4 1-1 Male/Female Connector
