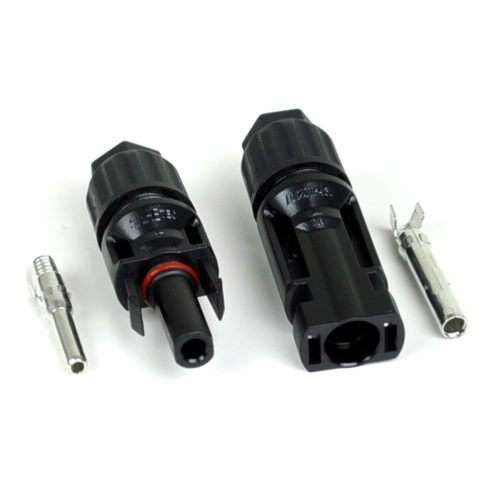

MC4 Solar Panel Connector Female & Male
Easy Solution for joining PV Panels!!!
Specifications:
Product No.: ML MC4 001
Rated Voltage: TUV 1000V DC / UL 600V DC
Rating Current: 20A ~30A
Suitable cable cross sections: 2.5mm2~6.0mm2 / 14AWG~10AWG
Pin dimension: 4.0mm
Proof voltage: DC 8KV(1Min)
Contact Material: Copper, tin-plated
Contact Resistance: 5mW
Degree of Protection IP: IP67(IEC 60529)
Withdrawal Force: 350N
Insertion Force: 50N
Temperature Range: -40 ~ +85o
Flame Class: UL94V - 0
