Product details
Condition
New
Location
International
Bob Shop ID
641128805

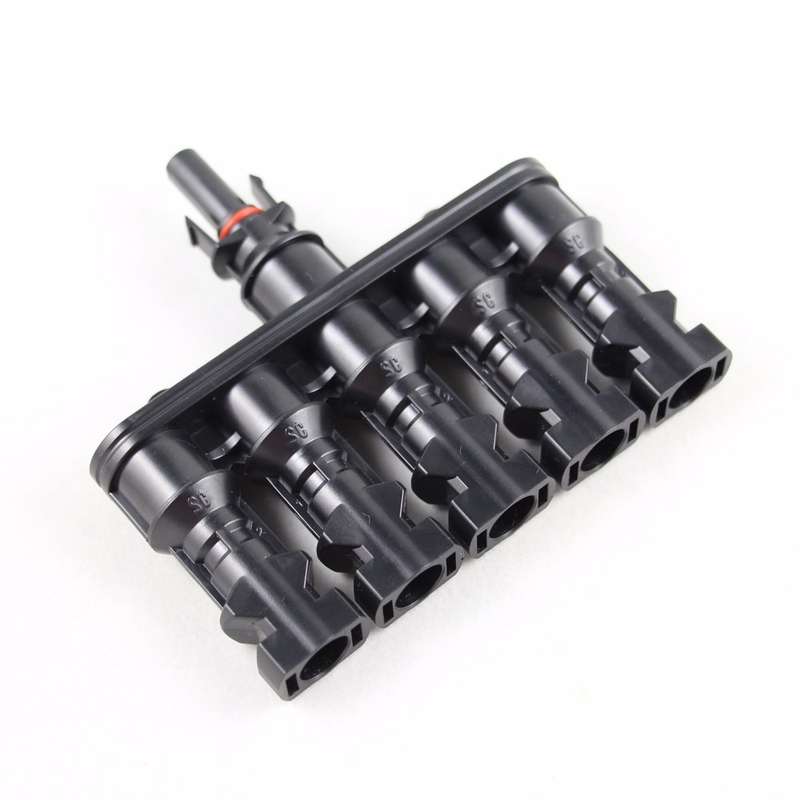

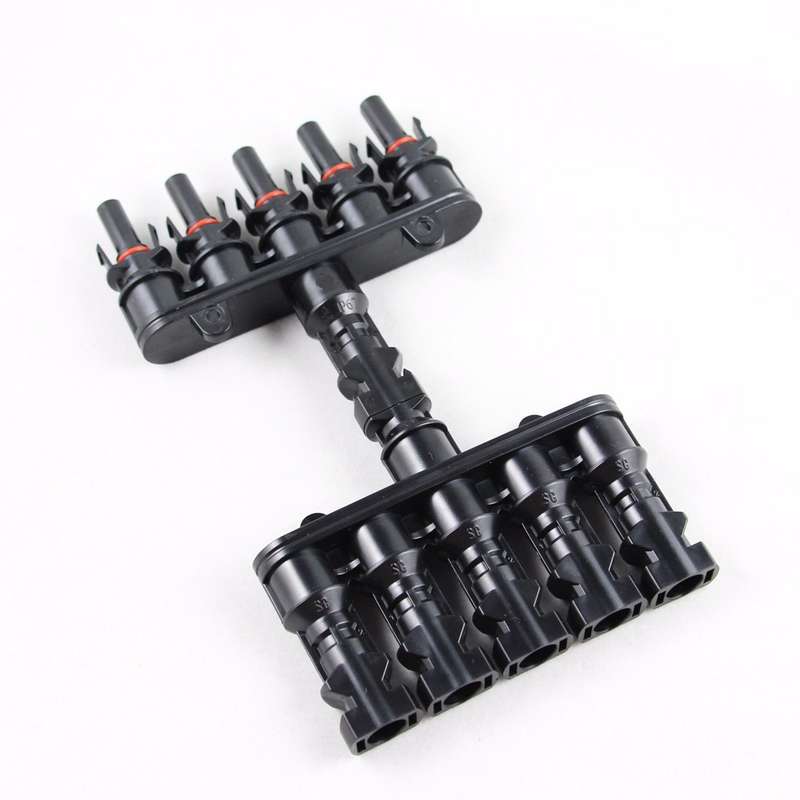

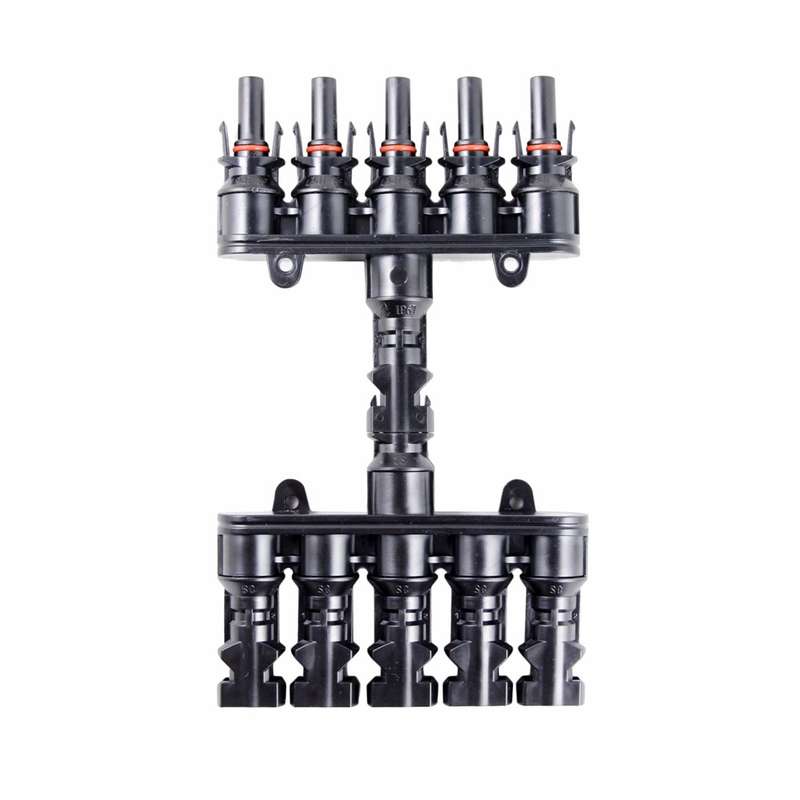

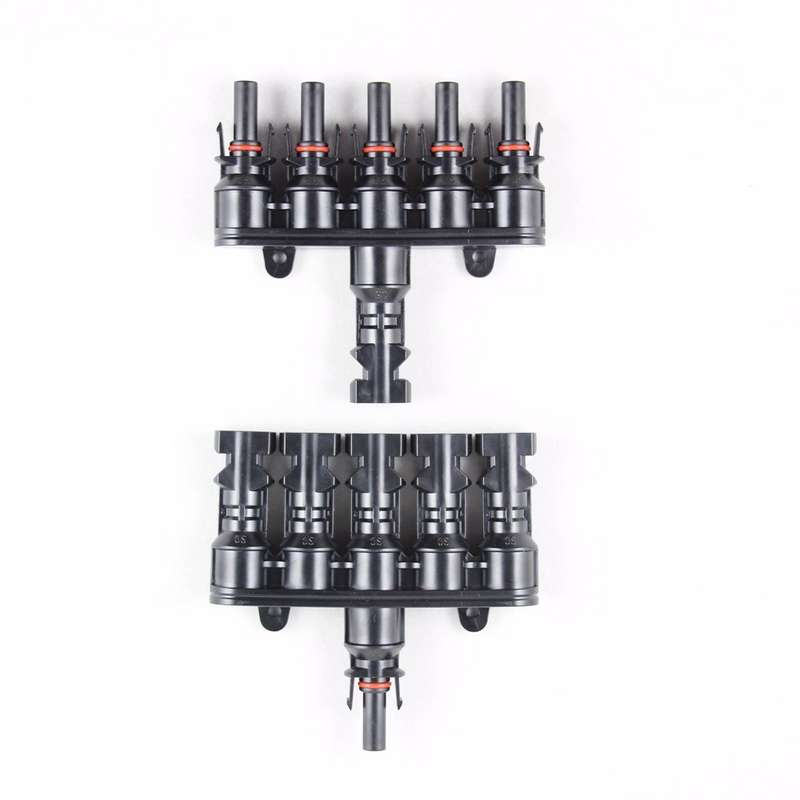

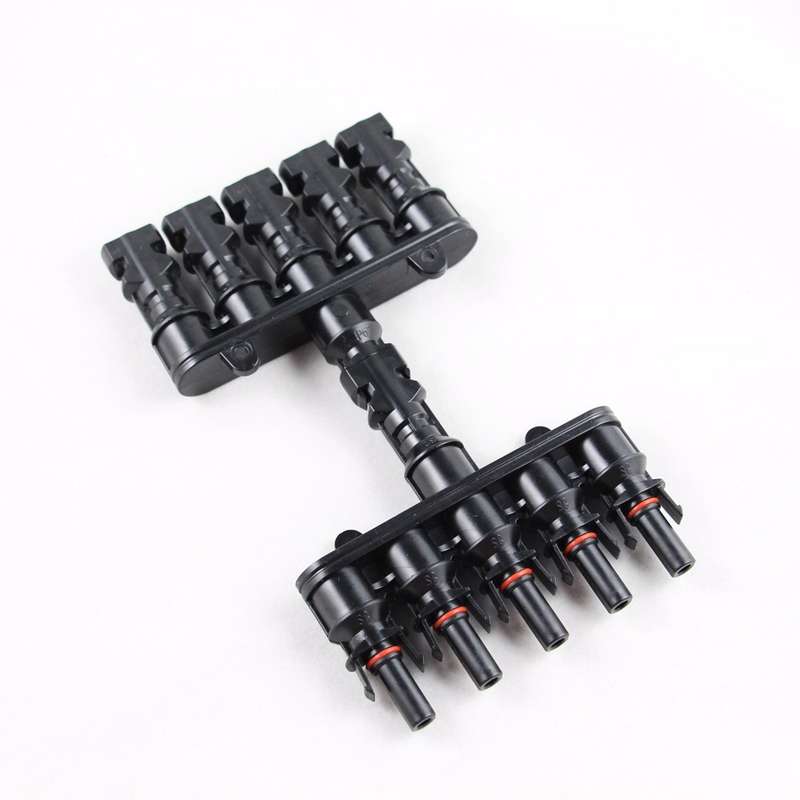

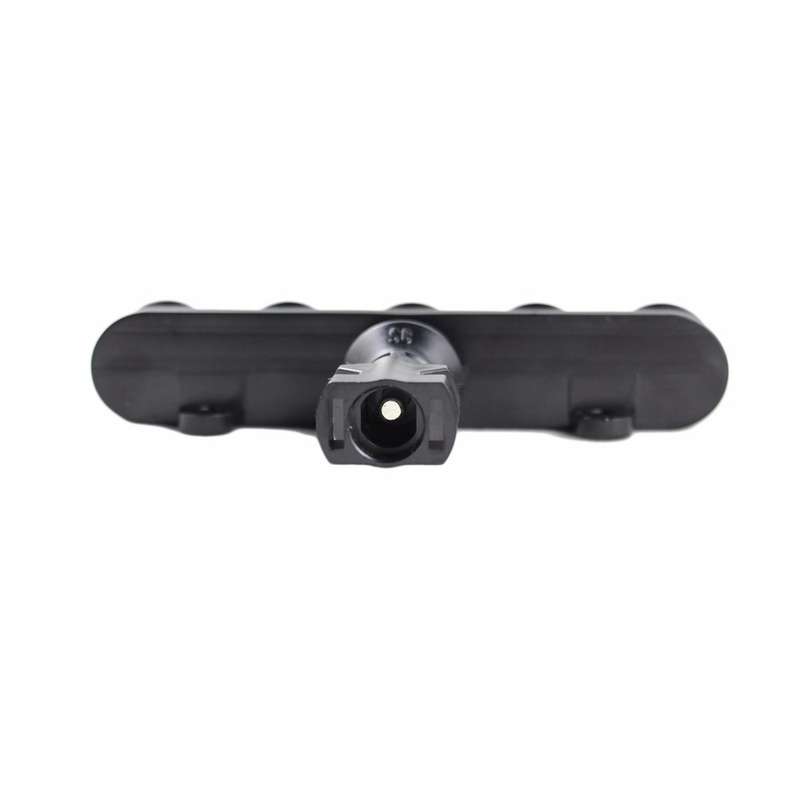

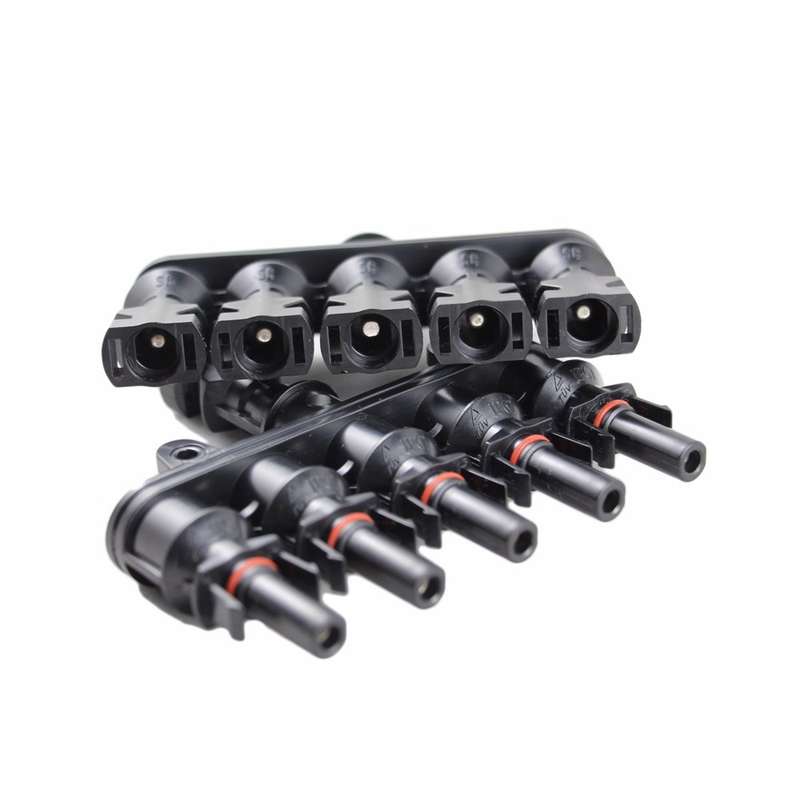

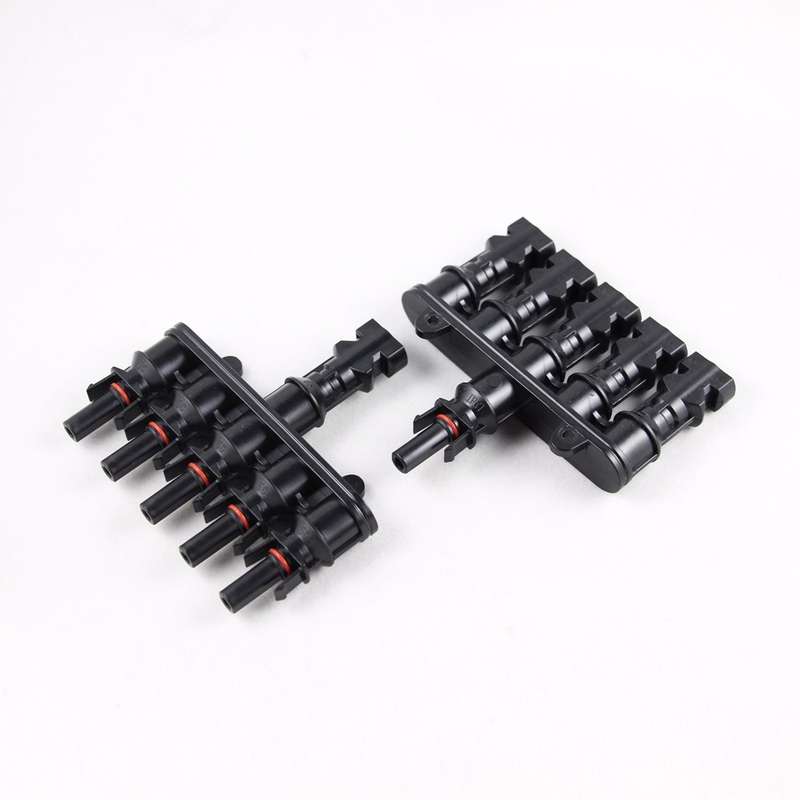

Description: MC4T-A3 MC4 M/FM Solar Panel 5 to 1 T Branch 30A Solar Panel Connector Cable Coupler Combiner MC4 Panel Cable Connectors Features: 1.Low power loss. 2.Solar connector for solar power system. 3.All the connection made by double fixed connection. 4.With the capacity of anti-aging and resistance to ultraviolet radiation on the out cover. With convenient installation, strong commonality. 5.To meet the using requirement under bad outdoor condition.
Specification: Product No.: MC4Z-A3 Rated Voltage: TUV 1000V DC / UL 600V DC Rating Current: 20A~ 30A Suitable cable cross sections: 2.5mm2~ 6.0mm2 / 14AWG~10AWG Pin dimension: 4.0mm Proof voltage: DC 8KV(1Min) Pollution degree: 2 Protection class: Class II Contact Material: Copper, tin-plated Contact Resistance: 5mW Connector Material: PPO Degree of Protection IP: IP67(IEC 60529) Withdrawal Force: 350N Insertion Force: 50N Temperature Range: -40~ +85a Flame Class: UL94V - 0
