MC4T-A3 MC4 M/FM Solar Panel 5 to 1 T Branch 30A Solar Panel Connector Cable Coupler Combiner

20 available / new

R667.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3515

93.45 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

643384077

Description:
MC4T-A3 MC4 M/FM Solar Panel 5 to 1 T Branch 30A Solar Panel Connector Cable Coupler Combiner MC4 Panel Cable Connectors
Features:
1.Low power loss. 2.Solar connector for solar power system. 3.All the connection made by double fixed connection. 4.With the capacity of anti-aging and resistance to ultraviolet radiation on the out cover. With convenient installation, strong commonality. 5.To meet the using requirement under bad outdoor condition.

Specification:
Product No.: MC4Z-A3 Rated Voltage: TUV 1000V DC / UL 600V DC Rating Current: 20A~ 30A Suitable cable cross sections: 2.5mm2~ 6.0mm2 / 14AWG~10AWG Pin dimension: 4.0mm Proof voltage: DC 8KV(1Min) Pollution degree: 2 Protection class: Class II Contact Material: Copper, tin-plated Contact Resistance: 5mW Connector Material: PPO Degree of Protection IP: IP67(IEC 60529) Withdrawal Force: 350N Insertion Force: 50N Temperature Range: -40~ +85a Flame Class: UL94V - 0

Packing included:

1 xMC4T-A3 MC4 M/FM Solar PanelCable Connectors

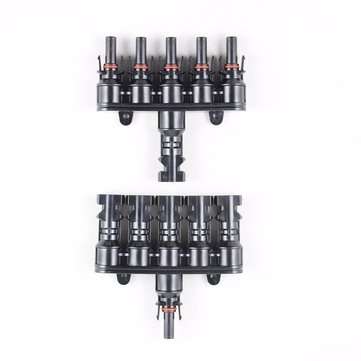

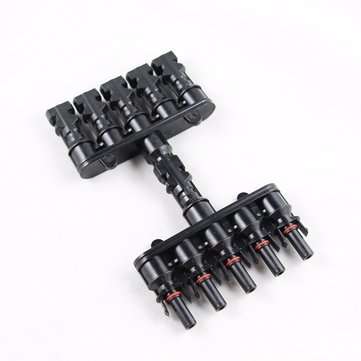

Details pictures:
