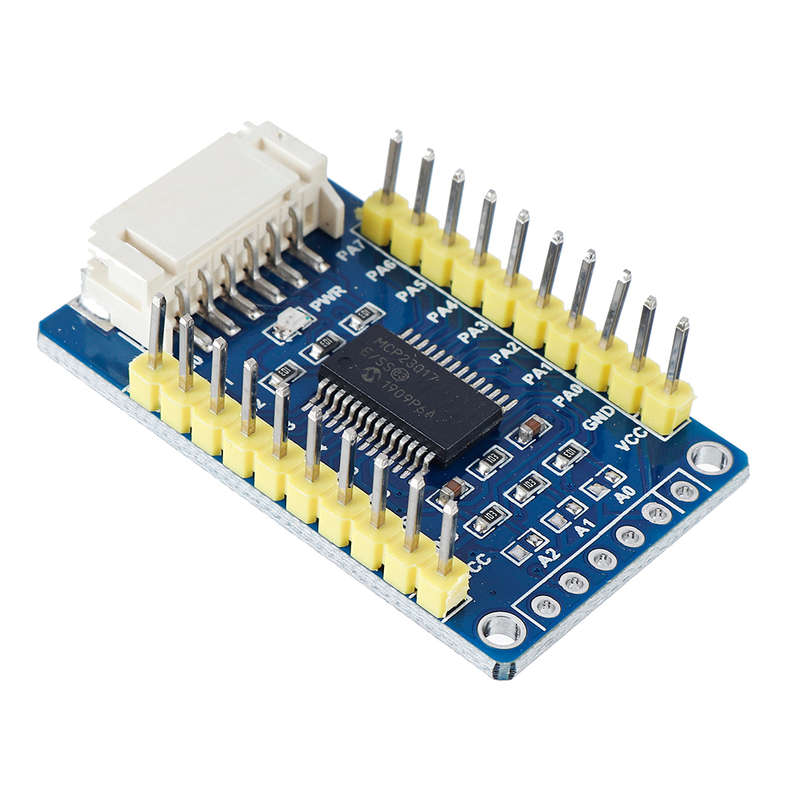

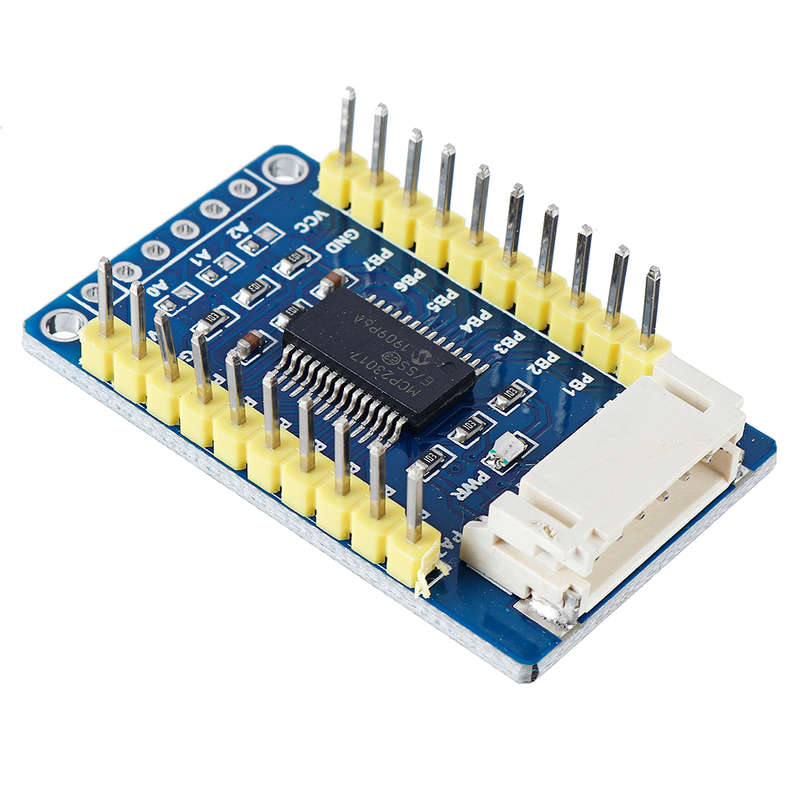

MCP23017 I/O Expansion Module I2C IIC Supports For Arduino Raspberry Pi Micro:bit STM32

20 available / new

R440.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3465

93.39 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641128809

Feature:

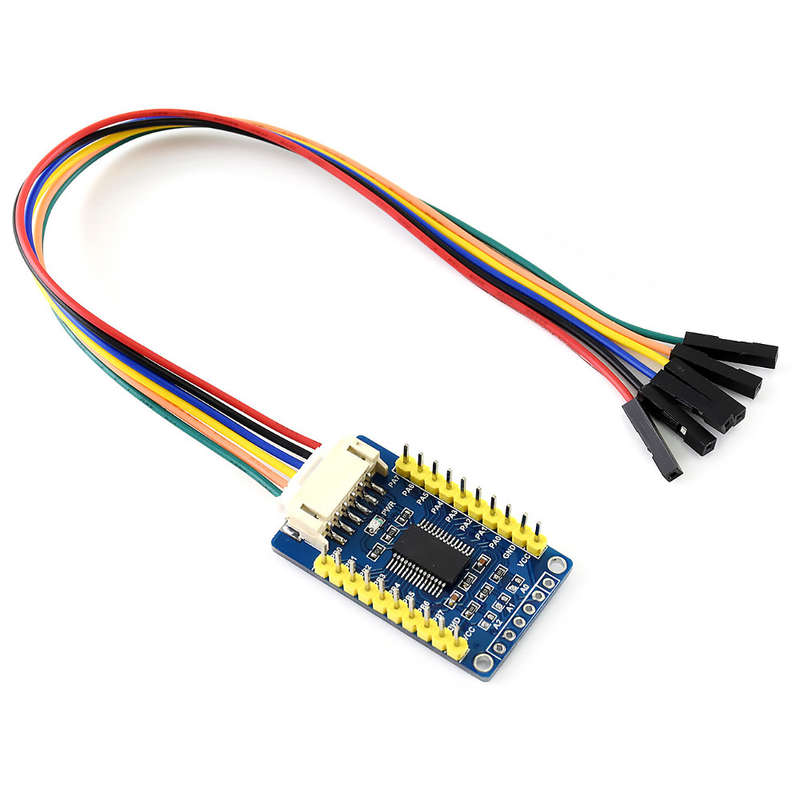

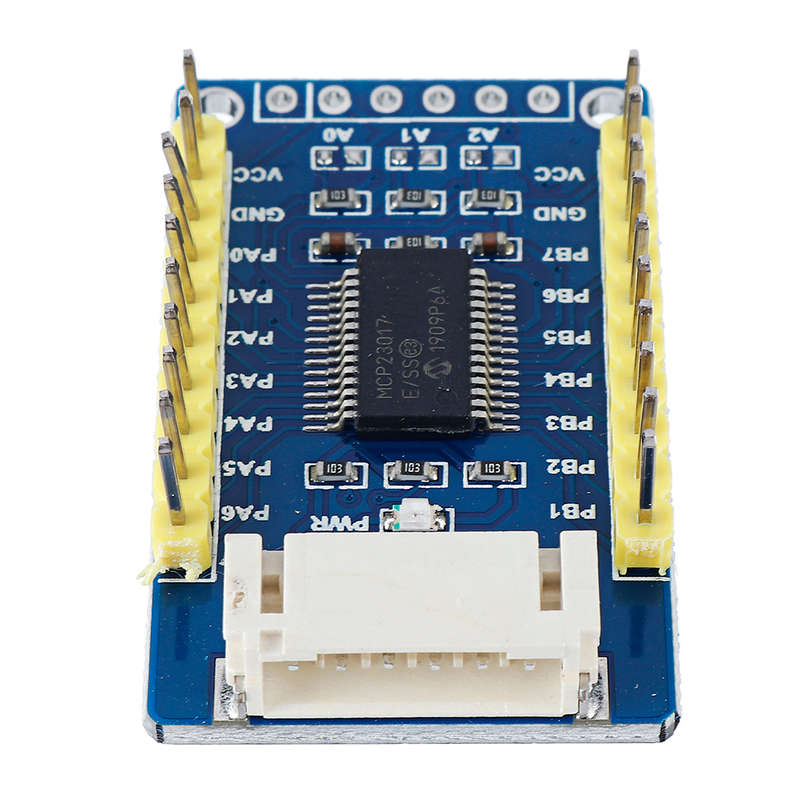

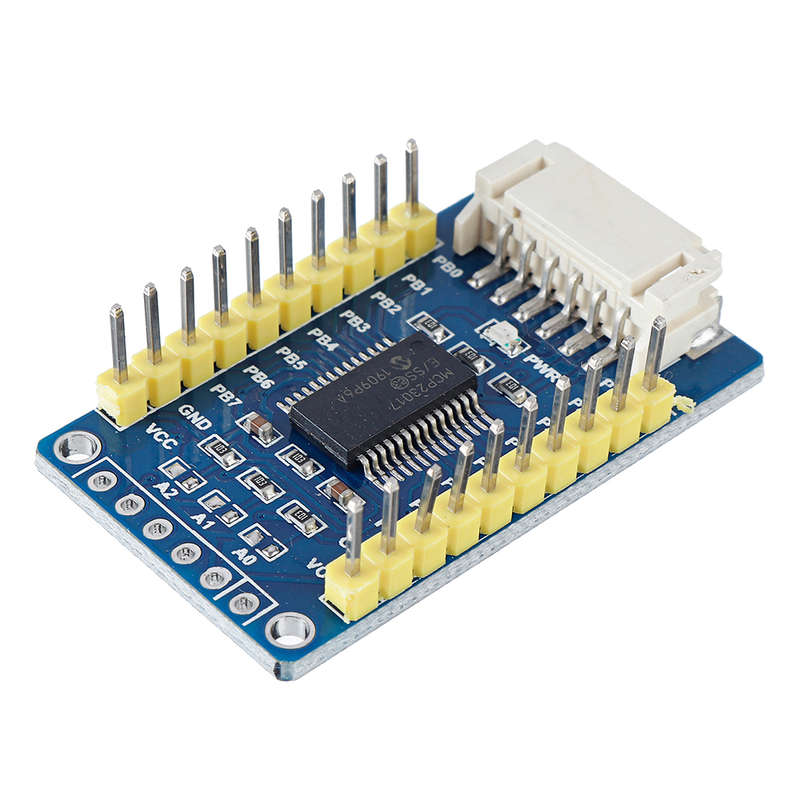

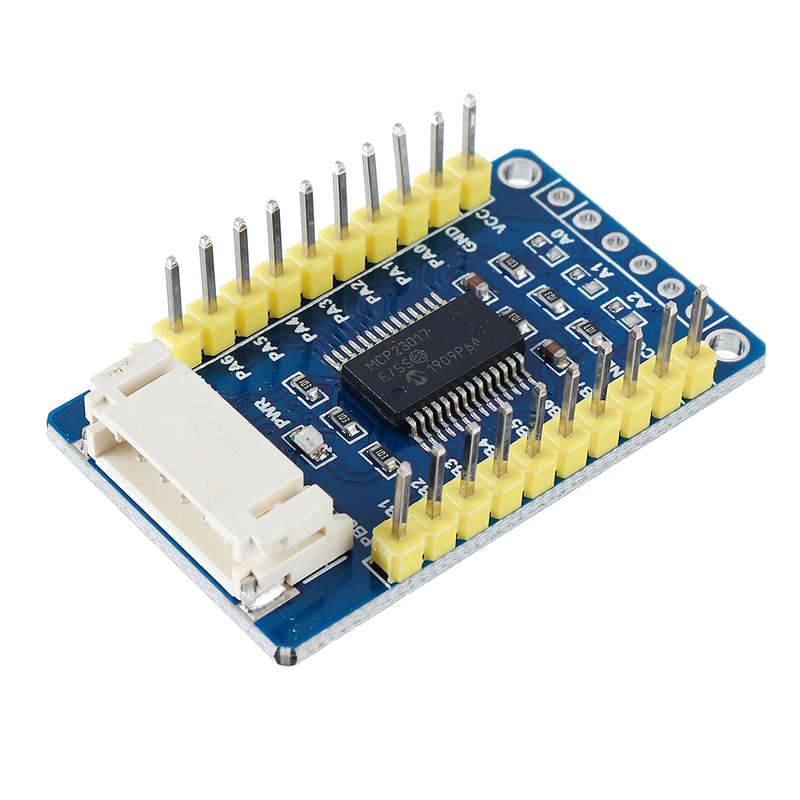

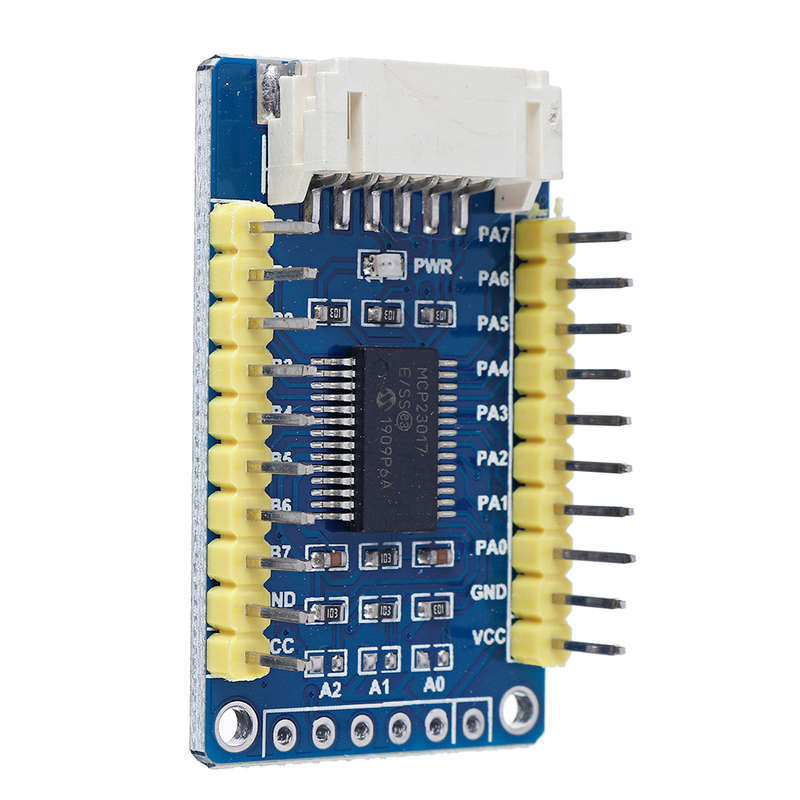

I2C interface control, only 2 signal lines are needed to expand 16 I/O ports I2C communication address can be set, short-circuit A0/A1/A2 solder joint can modify the communication address Provide two interface types: PH2.0 terminal and pad, support multiple I2C modules in parallel Onboard level conversion circuit, compatible with 3.3V/5V working level Provide complete supporting information manual (Raspberry/Micro:bit/Arduino/STM32 sample program and user manual, etc.) Parameter:

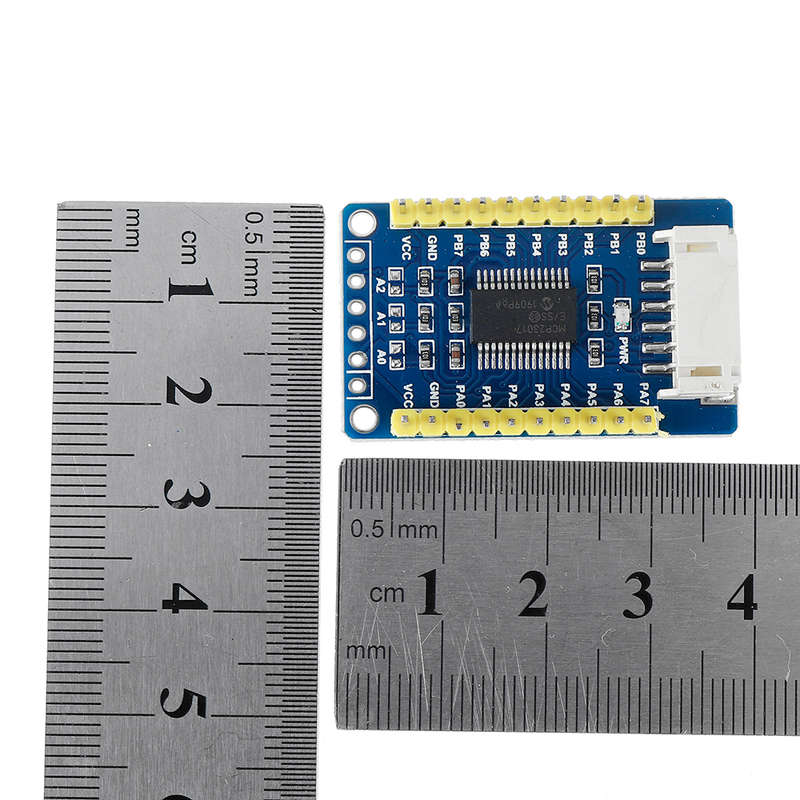

Working voltage: 5V/3.3V Control interface: I2C Interrupt pins: INTA, INTB Number of expansion I/O ports: 16 Product size: 38mm 23mm Via diameter: 2.0mm

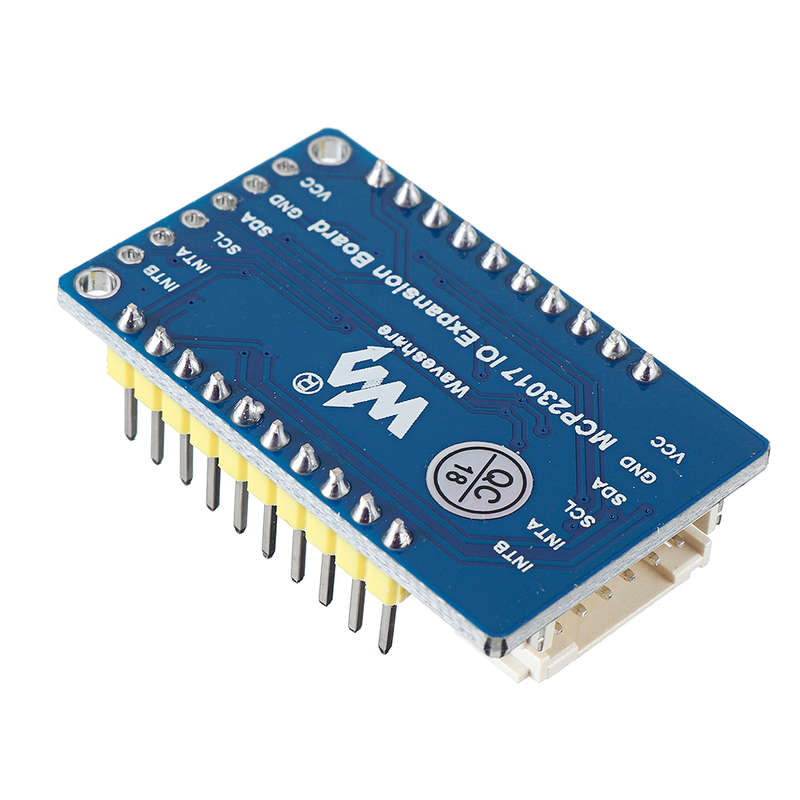

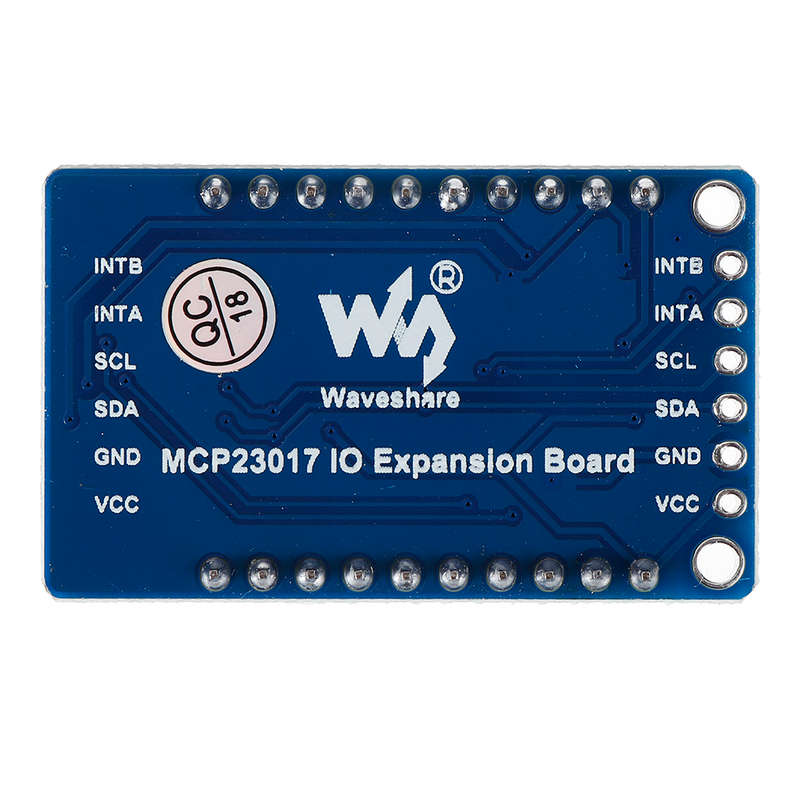

Pin Function	I2C interface
VCC	Positive power supply, can be connected to 3.3V/5V power supply
GND	Power ground
SDA	I2C data cable
SCL	I2C clock line
INTA	PA group port interrupt output
INTB	PB group port interrupt output
