Meanwell Power Supply 350W - 48V -7.3A
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details

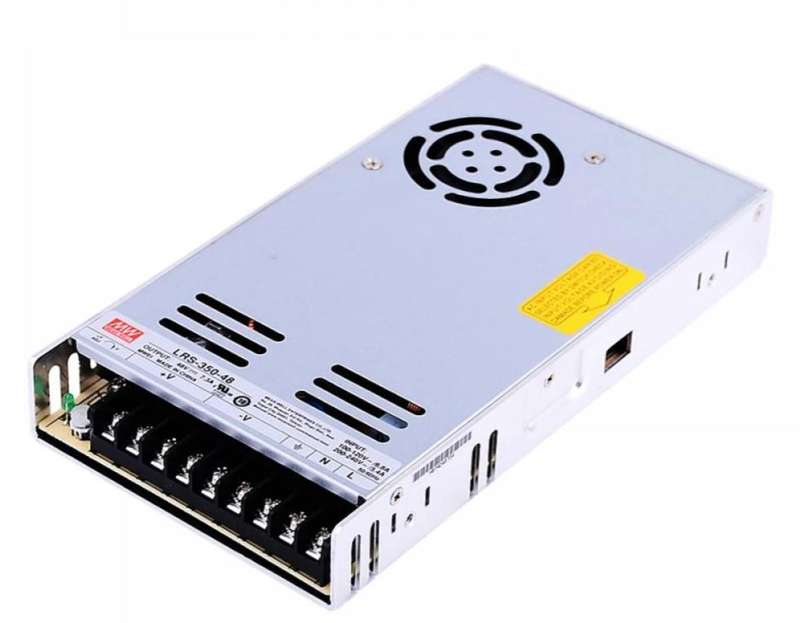

Meanwell Power Supply 350W - 48V -7.3A
Product Description
LRS-350 series is a 350W single-output enclosed type power supply with 30mm of low profile design. Adopting the input of 115VAC or 230VAC (select by switch), the entire series provides an output voltage line of 3.3V, 4.2V, 5V, 12V, 15V, 24V, 36V, and 48V. In addition to the high efficiency of up to 89%, the built-in long-life fan LRS-350 can work under -25~ +70℃ with a full load. Delivering an extremely low no-load power consumption (less than 0.75W), it allows the end system to easily meet the worldwide energy requirement.LRS-350 has complete protection functions and 5G anti-vibration capability; it complies with international safety regulations such as IEC / UL 62368-1. LRS-350 series serves as a high-price-to-performance power supply solution for various industrial applications.
Product Features
- Brand MEANWELL
- 48V DC 7.3A output
- AC input voltage range: 90 ~ 132VAC
- Rated power: 350.4W
- AC input range selectable by switch
- Withstand 300VAC surge input for 5 second
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Forced air cooling by built-in DC fan
- Built-in cooling Fan ON-OFF control
- 1U low profile
- Withstand the 5G vibration test
- LED indicator for power on
- No load power consumption<0.75W
- 100% full load burn-in test
- High operating temperature up to 70℃
- Operating altitude up to 5000 meters (Note.8)
- High efficiency, long life and high reliability
Product Resources
Data Sheet
Locally Stocked. Available for Immediate Shipping!
