1. Image sensor: SONY COMS 1/2.9 sensor
2. Video output frame rate: 2K/1080P@60fps Full HD (HDMI output), 1080P@30fps (USB output)
3. Photo pixel: HDMI photo 14 million pixels, USB photo 2 million pixels
4. Video output: 1920X1080P (HDMI interface) resolution
5. Digital zoom: 7x digital electronic zoom
6. Color: color/black and white/inverted color
7. Storage: 128GB TF memory card
8. Language settings: Chinese, English, Japanese, French, German, Russian, Italian, Arabic, Korean, etc.
9. Crosshairs: Support (8 horizontal lines, 8 vertical lines)
10. White balance: Support automatic and manual, support RGB adjustable
11. Exposure: Support automatic and manual
12. File format: video MP4, photo jpg
13. Camera interface: supports C (25mm)/CS interface
14. Mirror settings: standard/horizontal mirror/vertical mirror/horizontal + vertical
15. Light source frequency: 50hz 60hz

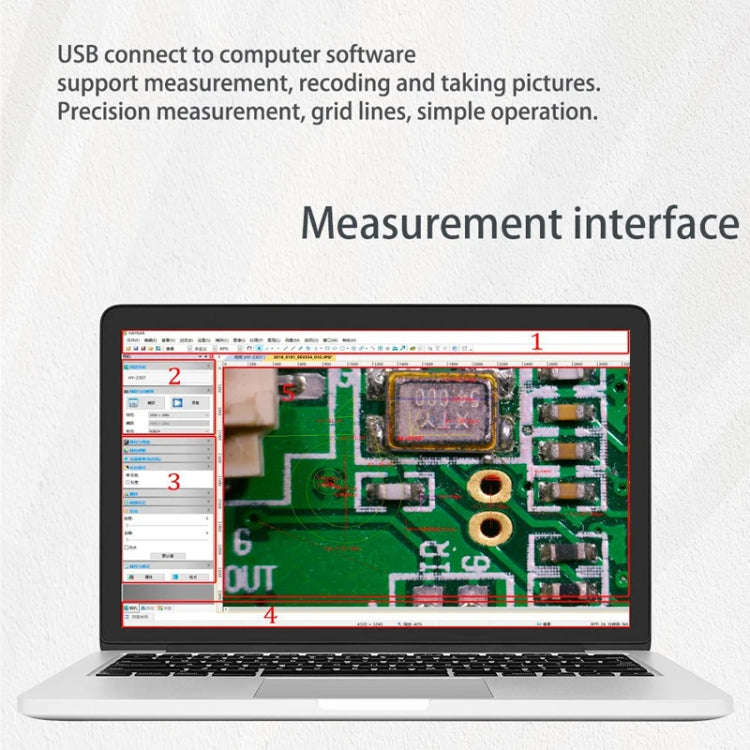

16. Measurement: supports window XP/7/8/10 systems, PC software with measurement function is provided
1. Anti-reflection coating, high refractive index, bright and clear imaging
2. Made of metal mirror body, standard interface, universal for stereo microscopes
3. Super large field of view, more comfortable viewing

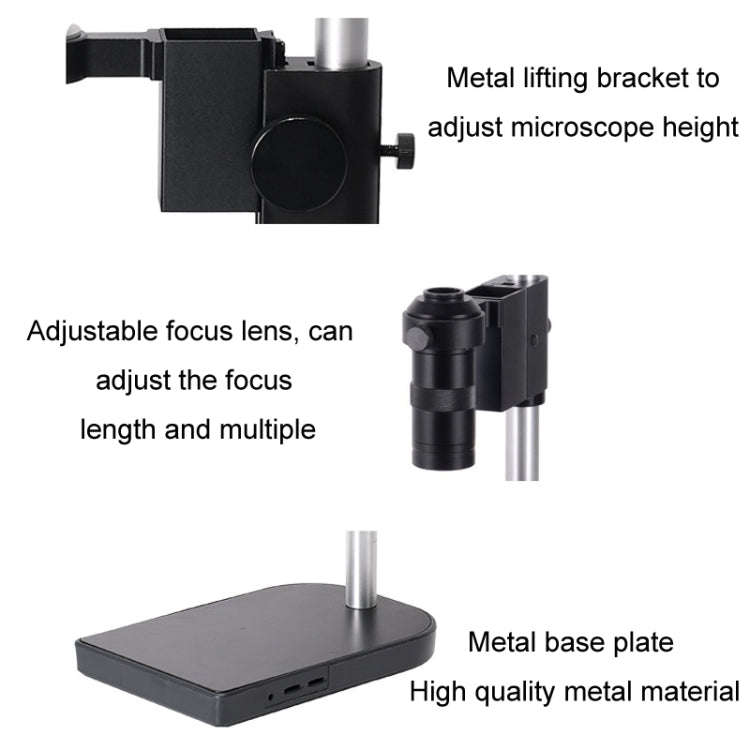

4. Metal lifting bracket can adjust the height of the microscope

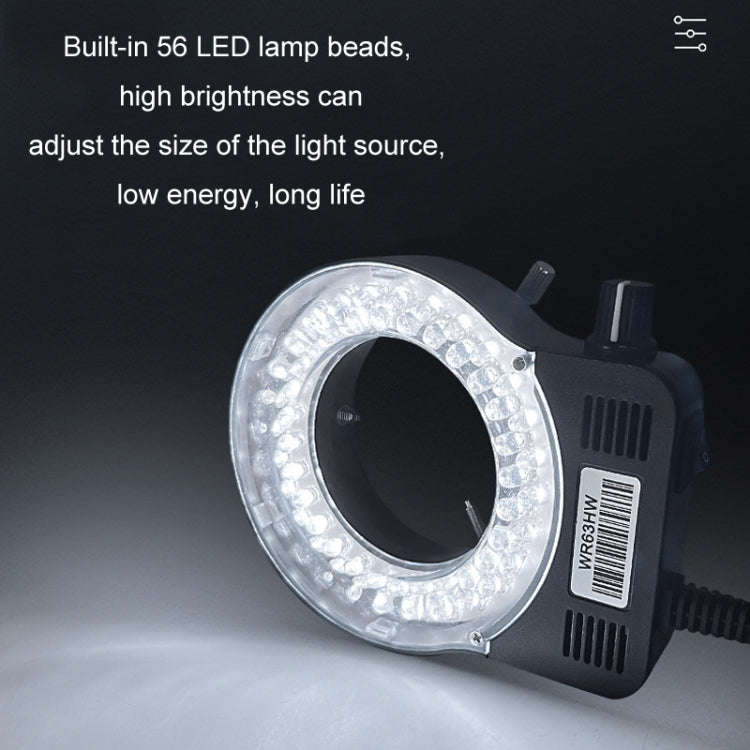

5. The ring light has 56 LED beads built in, high brightness and adjustable light source size, low energy and long life

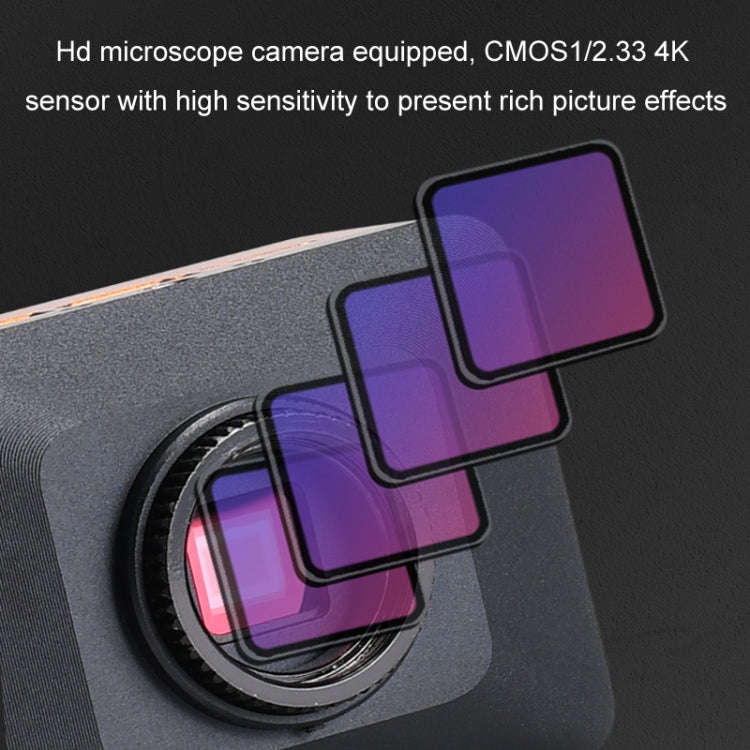

6. The microscope camera is equipped with CMOS1/2.33 sensor with high sensitivity to present rich picture effects

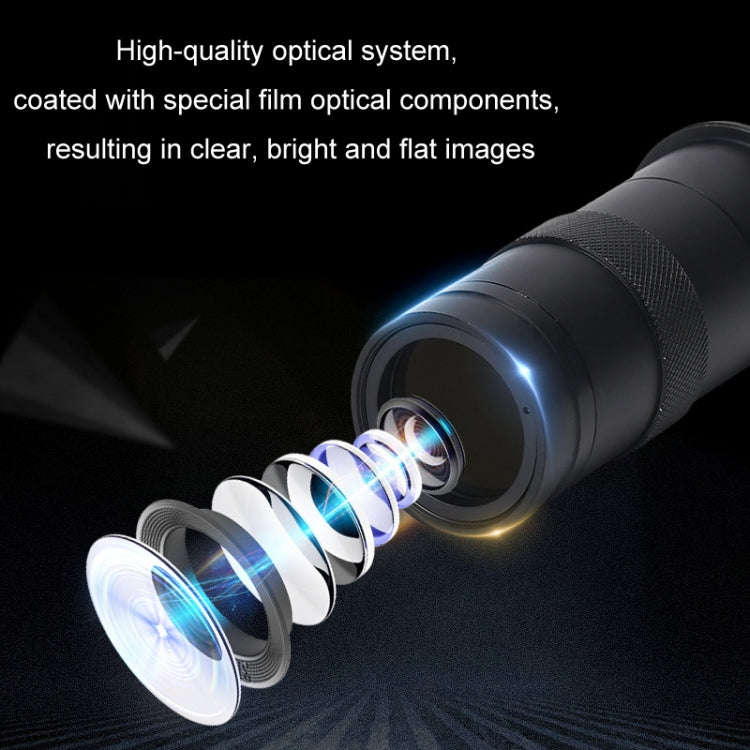

7. High-frequency zoom lens, high-quality optical system, optical components coated with special film layers, forming clear, bright and flat images
8. Widely used in microelectronics, molds, precision machinery, jewelry, watches, accessories, fingerprint identification, ticket identification, printing, mobile phone repair, archaeology, biological anatomy, school teaching and other fields, especially suitable for observing the microscopic structure of the surface of large objects
Photo, video, measurement functions:
1. Photo: Click the photo button to capture a photo, click the small arrow on the right side of the photo button, and a pop-up menu can be used to set the file format and photo size
2. Video: Click the video button to start recording, click again to stop recording, and the video file is an H.264 file with the suffix of mp4
3. Browse: Click the browse button to open the location where the image file is stored using Windows Explorer
