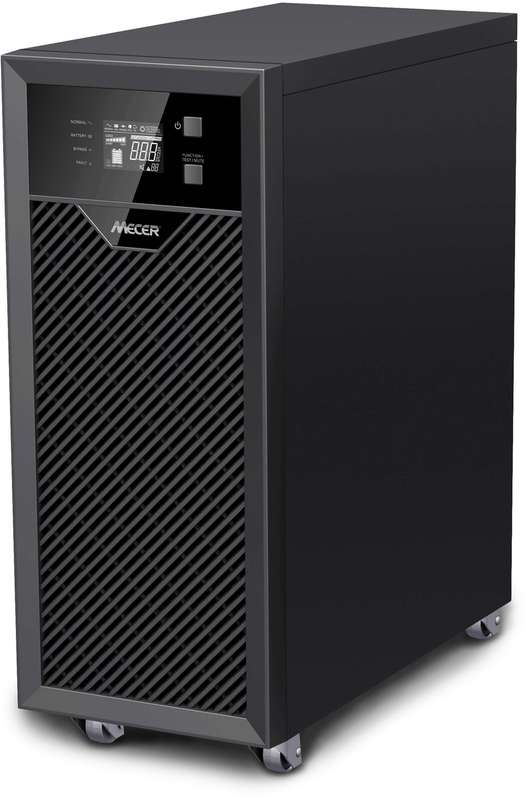

Mecer ME-10000-WPTV 10000VA / 10000W On-line Pure Sine Wave UPS - Tower, AVR, Monitoring Software + cable, Built-In Surge protection
Specifications:
item ME-6000-WPTV / ME-10000-WPTV
Dimensions W*D*H(mm) 248 x 500 x616 248 x500 x616
Weight(kg) 58.9 62.1
Power
Apparent Power(KVA) 6KVA / 10KVA
Active power(KW) 5.4KW / 9KW
Mains
Voltage range 120Vac-275Vac(phase to phase)
Current 32.1A max 52.6 A max
Frequency range 40Hz-70Hz
Power factor 0.99
Output
Rating Voltage 230Vac(±1%)
Rating Current 27A 45A
Frequency range 50Hz x (1±1%), Follow main power in phase lock range
Power factor 0.9
105%-125%, load transfer to bypass mode after 10 min (0-30°C) or
1min(30-40°C)
Output Overload 125%-150%, load transfer to bypass mode after 30s
Over 150%, load transfer to bypass after 0.5s
Load crest ratio 3:1( max)
THD Enviromental and safety
EMC Standard EN IEC 62040-2:2018 / EN 62040-2:2006 / IEC 62040-2:2016
Safety Standard EN62040-1:2008+A1:2013
Operation
Operation 0-40 °C
temperature
Store temperature -25 °C to 55 °C
Relative humidity 20% to 90%
Altitude
Some specification may differs in the upcoming model please make sure to check with our Customer Care before you order to get the Accurate Product you are willing to Order.
