Mecer 1200VA 1000W 12V DC-AC Inverter with LCD Display & MPPT built in

Mecer 1200VA / 1000W 12V Inverter With MPPT Solar Charger, Lithium And Lead Acid Battery Controller
(External Batteries Required)

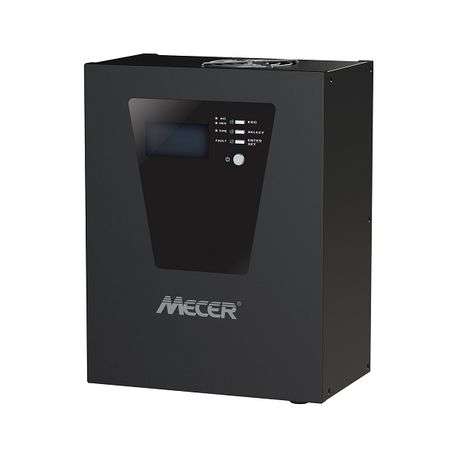

Mecer IVR-1200MPPT 1200VA 1000W 12V DC-AC Inverter with LCD Display & MPPT built in, Cables are included to connect to the battery, 1x cable to connect to a South African 3pin wall socket is included, Requires 1x 12V deep cycle battery, Please note of connection: Connect RED cable to (+) on battery and BLACK cable to (-) on battery
Features
Simulated sinewave inverter
Wide input voltage range
Overload and short circuit protection
LCD display for comprehensive information
MPPT

Specifications

Capacity: 1200VA/ 1000W
Power Factor: 0.83

Input
Voltage: 220-240 VAC
Voltage Range: 90-280VAC
Nominal Operating Frequency: 50 Hz/60 Hz
Maximum Input Current: 10A

Output
Nominal Output Voltage: 220-240 VAC
Voltage Regulation (Batt. Mode): ± 10%
Output Frequency Range: 50 Hz/60 Hz
Nominal Output Current: 5.2A
Inrush Current: 10A
Maximum Output Fault Current: 6.9A
Transfer Time: 20 ms typical
Waveform: Simulated Sine Wave

Battery
Battery Voltage: 12 VDC
Maximum Battery Discharge Current: 100A

Floating Charge Voltage: 13.7 VDC ±0.5 VDC

CV Charging Voltage
Lead Acid Battery: 14.3 VDC ±0.5 VDC
Lithium Battery: 14.6 VDC ±0.5 VDC
Cutt Off Voltage: 10.5 VDC ±0.5 VDC
Maximum AC Charging Current: 10 A or 25 A

Solar Charger
Solar Charger Type: MPPT
Maximum PV Array Open Circuit Voltage: 100 VDC
MPP Range @ Operating Voltage: 15 80 VDC
Max. PV array Input Power: 825W
Max. PV array Power to support: 660W
Maximum Solar Charging Current: 55 A
Maximum Charging Current (Utility + SCC): 55A

Physical
Dimension, D X W X H (mm): 272 x 212 x 127
Net Weight (kgs): 4.5
Protective Class: I
Ingress Protection Rating: IP20

Environment
Humidity: 0 to 90% RH (No condensing)
Operating Temperature: 0°C to 55°C

Altitude: 0 1000 m

What's in the box
1 x IVR-1200MPPT Mecer 1200VA, 12V
