Mecer has been one of South Africa's top-selling PCs over the past two decades. Mustek's ongoing interaction within the international IT industry has ensured that Mecer has remained a techno-leader at the forefront of technology.
*Please note that batteries are not included and needs to be bought separately
This unit is also intended for use with IT equipment and will not be able to run a kettle, heater or anything that uses a motor or an element.
Features:
- Simulated sine wave inverter
- Built-in AVR for voltage regulation
- Wide input voltage range: 90-280 VAC
- 12VDC available
- Overload and short circuit protection
- LCD display for comprehensive information
Specifications:

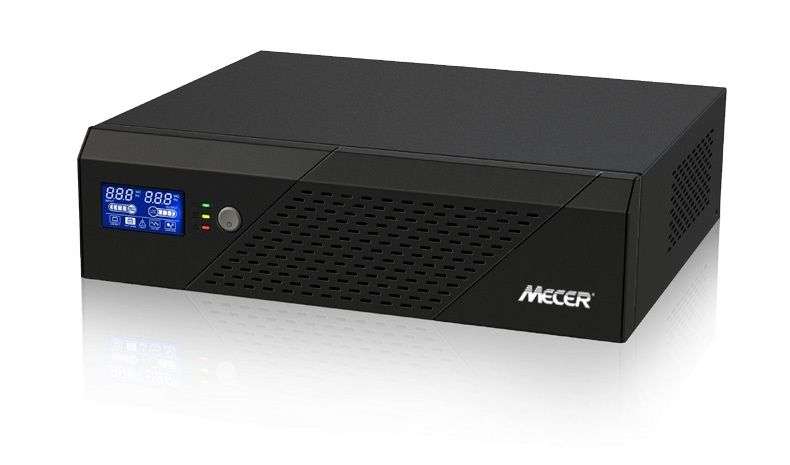

- MODEL Mecer IVR-1200LBK
- CAPACITY 1200 VA / 720 W
- POWER FACTOR 0.8
- Input Voltage range 90-280VAC
Line Mode:
- Output Voltage
- Bypass mode: 0utput voltage same as input voltage
- AVR mode: Output voltage = Input voltage 1.2 at Input voltage - Output Frequency Same as input
Battery Mode (BATTERIES NOT INCLUDED):
- Output Voltage 230Vac +/-10%
- Transfer Time 20ms typical
- Waveform Modified Sine-wave
Overload Capability:
- Bypass Mode (in VA and Watts) Load >110%+/-15% , alarm 5 mins then fault
- Load >130% +/-15%, fault immediately.
- AVR Mode (in VA and Watts)at Input voltage > 170VAC Load >100%+/-15%, go to bypass mode
- AVR Mode (in VA and Watts)at Input voltage < 170VAC Load >60%+/-15%, go to bypass mode
- Battery Mode (in W) Load>110% +/-15%, overload alarm for 15s, and then will switch to fault mode for 10s. Then unit will re-start for 5 times Load>120% +/-15% , fault & cut off O/P immediately.
Short Circuit Protection:
- Line Mode Breaker
- Battery Mode Current limit +Firmware Protection
Battery specs needed (NOT INCLUDED):
- Battery Voltage 12VDC
- Acceptable Battery Type Rechargeable lead-acid battery, Deep discharge battery
- Polarity Reserve Protection Yes
- Charger available I/P range 90 280V
Charger:
- Constant Current Charger Voltage 14.3VDC +/-2%
- Floating Charge Voltage 13.7VDC +/-2%
- Maximum Charge Current 10A or 20A
- DC Start Voltage >11VDC
Physical:
- Dimension, D X W X H (mm) 350 x 90 x 300
- Net Weight (kgs) 4.5
Environment:
- Operating Humidity 0 to 90% Relative Humidity(Non-condensing)
- Operating Temperature 0 degrees C to 40 degrees C
- Storage Temperature -15 degrees C to 50 degrees C
What's in the box

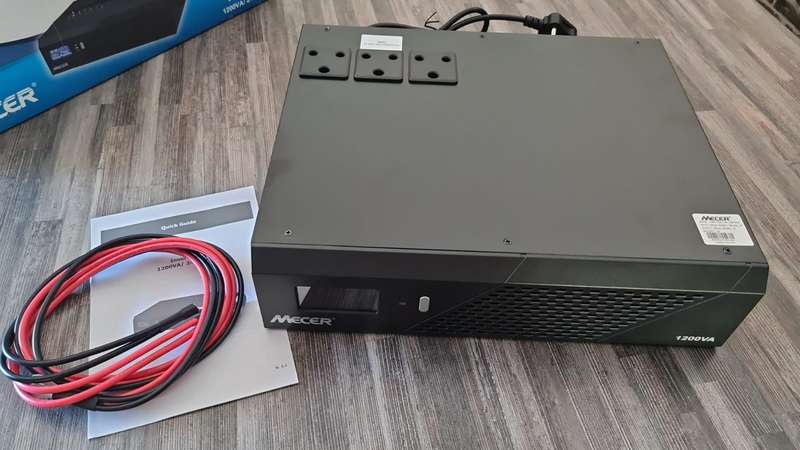

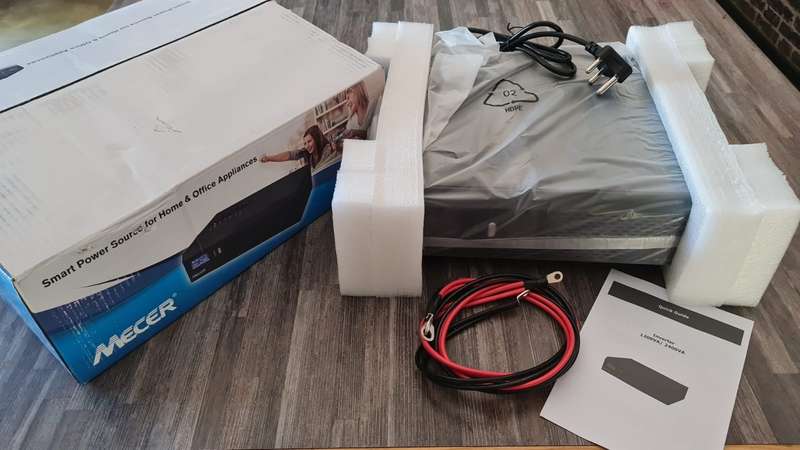

1x Mecer 1200VA 720W 12V Inverter (Not Compatible with Lithium Batteries)
