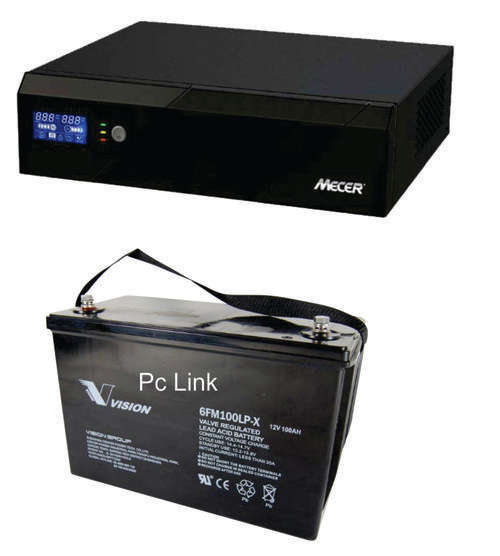

MECER 1200VA 720W 12V INVERTER / CHARGER / BATTER SET
| Capacity | 1.2KVA/ 720W |
| Power Factor | 0.6 |
| Intput voltage range | 90-280VAC |
| LINE MODE | |
| Output voltage | Bypass mode: 0utput voltage same as input voltage |
| AVR mode:Output voltage = Input voltage*1.2 @ Input voltage<200VAC | |
| Output Frequency | Same as input |
| BATTERY MODE | |
| Output voltage | 230Vac ±10% |
| Transfer Time | 20ms typical |
| Waveform | Modified Sine-wave |
| OVERLOAD CAPABILITY | |
| Bypass Mode (in VA and Watts) | Load >110%±15% , alarm 5 mins then fault |
| Load >130% ±15%, fault immediately. | |
| AVR Mode | Load >100%±15%, go to bypass mode |
| (in VA and Watts)@ Input voltage > 170VAC) | |
| AVR Mode | Load >60%±15%, go to bypass mode |
| (in VA and Watts)@ Input voltage < 170VAC | |
| Battery Mode (in W) | Load>110% ±15%, overload alarm for 15s, and then will switch to fault mode for 10s. |
| Then unit will re-start for 5 times. | |
| Load>120% ±15% , fault & cut off O/P immediately. | |
| SHORT CIRCUIT PROTECTION | |
| Line Mode | Breaker |
| Battery Mode | Current limit +Firmware Protection |
| BATTERY | |
| Battery Voltage | 12VDC |
| Acceptable Battery Type | Rechargeable lead-acid battery, Deep discharge battery |
| Polarity Reserve Protection | Yes |
| Charger available I/P range | 90~280V |
| CHARGER | |
| Constant Current Charger Voltage | 14.3VDC ±2% |
| Floating Charge Voltage | 13.7VDC ±2% |
| Maximum Charge Current | 10A or 20A |
| DC Start Voltage | >11VDC |
