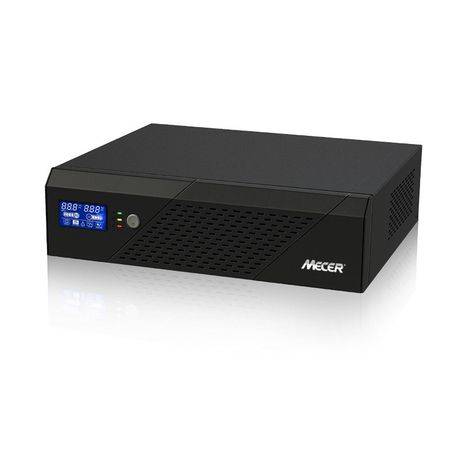

Mecer 1200VA 720W 12V Inverter

Mecer has been one of South Africa's top-selling PCs over the past two decades. Mustek's ongoing interaction within the international IT industry has ensured that Mecer has remained a techno-leader at the forefront of technology. Features: - Simulated sine wave inverter - Built-in AVR for voltage regulation - Wide input voltage range: 90-280 VAC - 12VDC available - Overload and short circuit protection - LCD display for comprehensive information Specifications: - MODEL Mecer IVR-1200LBK - CAPACITY 1200 VA / 720 W - POWER FACTOR 0.8 - Input Voltage range 90-280VAC Line Mode: - Output Voltage - Bypass mode: 0utput voltage same as input voltage - AVR mode:Output voltage = Input voltage 1.2 at Input voltage - Output Frequency Same as input Battery Mode: - Output Voltage 230Vac +/-10% - Transfer Time 20ms typical - Waveform Modified Sine-wave Overload Capability: - Bypass Mode (in VA and Watts) Load >110%+/-15% , alarm 5 mins then fault - Load >130% +/-15%, fault immediately. - AVR Mode (in VA and Watts)at Input voltage > 170VAC Load >100%+/-15%, go to bypass mode - AVR Mode (in VA and Watts)at Input voltage < 170VAC Load >60%+/-15%, go to bypass mode - Battery Mode (in W) Load>110% +/-15%, overload alarm for 15s, and then will switch to fault mode for 10s. Then unit will re-start for 5 times Load>120% +/-15% , fault & cut off O/P immediately. Short Circuit Protection: - Line Mode Breaker - Battery Mode Current limit +Firmware Protection Battery: - Battery Voltage 12VDC - Acceptable Battery Type Rechargeable lead-acid battery, Deep discharge battery - Polarity Reserve Protection Yes - Charger available I/P range 90 280V Charger: - Constant Current Charger Voltage 14.3VDC +/-2% - Floating Charge Voltage 13.7VDC +/-2% - Maximum Charge Current 10A or 20A - DC Start Voltage >11VDC Physical: - Dimension, D X W X H (mm) 350 x 90 x 300 - Net Weight (kgs) 4.5 Environment: - Operating Humidity 0 to 90% Relative Humidity(Non-condensing) - Operating Temperature 0 degrees C to 40 degrees C - Storage Temperature -15 degrees C to 50 degrees C
