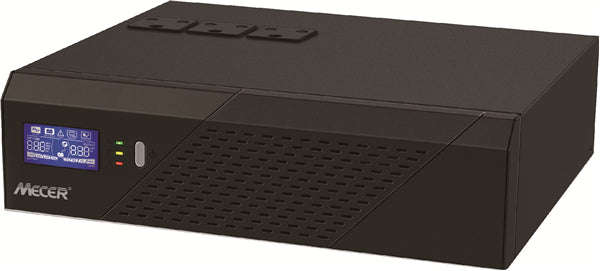

MECER 1200VA 720W 12V INVERTER

Mecer has been one of South Africa's top-selling PCs over the past two decades. Mustek's ongoing interaction within the international IT industry has ensured that Mecer has remained a techno-leader at the forefront of technology.

Features:
- Simulated sine wave inverter
- Built-in AVR for voltage regulation
- Wide input voltage range: 90-280 VAC
- 12VDC available
- Overload and short circuit protection
- LCD display for comprehensive information

Specifications:
- MODEL Mecer IVR-1200LBK
- CAPACITY 1200 VA / 720 W
- POWER FACTOR 0.8
- Input Voltage range 90-280VAC

Line Mode:
- Output Voltage
- Bypass mode: 0utput voltage same as input voltage
- AVR mode:Output voltage = Input voltage 1.2 at Input voltage<200VAC
- Output Frequency Same as input

Battery Mode:
- Output Voltage 230Vac +/-10%
- Transfer Time 20ms typical
- Waveform Modified Sine-wave

Overload Capability:
- Bypass Mode (in VA and Watts) Load >110%+/-15% , alarm 5 mins then fault
- Load >130% +/-15%, fault immediately.
- AVR Mode (in VA and Watts)at Input voltage > 170VAC Load >100%+/-15%, go to bypass mode
- AVR Mode (in VA and Watts)at Input voltage < 170VAC Load >60%+/-15%, go to bypass mode
- Battery Mode (in W) Load>110% +/-15%, overload alarm for 15s, and then will switch to fault mode for 10s. Then unit will re-start for 5 times Load>120% +/-15% , fault & cut off O/P immediately.

Short Circuit Protection:
- Line Mode Breaker
- Battery Mode Current limit +Firmware Protection

Battery:
- Battery Voltage 12VDC
- Acceptable Battery Type Rechargeable lead-acid battery, Deep discharge battery
- Polarity Reserve Protection Yes
- Charger available I/P range 90 280V

Charger:
- Constant Current Charger Voltage 14.3VDC +/-2%
- Floating Charge Voltage 13.7VDC +/-2%
- Maximum Charge Current 10A or 20A
- DC Start Voltage >11VDC

Physical:
- Dimension, D X W X H (mm) 350 x 90 x 300
- Net Weight (kgs) 4.5

Environment:
- Operating Humidity 0 to 90% Relative Humidity(Non-condensing)
- Operating Temperature 0 degrees C to 40 degrees C
- Storage Temperature -15 degrees C to 50 degrees C
