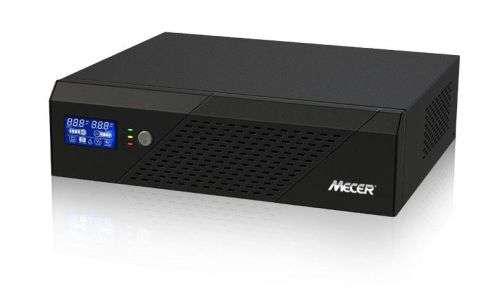

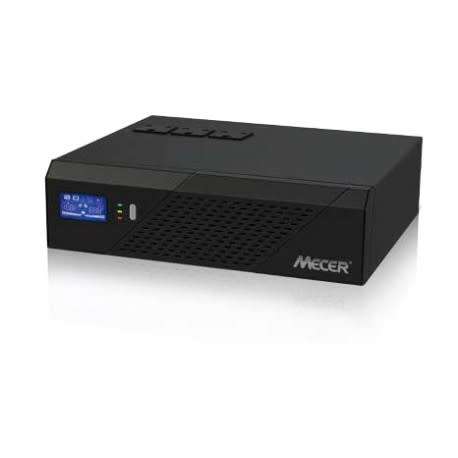

Mecer 1200VA 720W Inverter

Mecer 1200VA, 720W, 12V DC-AC Inverter

Cables to connect the unit to a battery are included.

A 220V power cable is included to recharge the battery while the power is on.

May be used as an inverter (to power 220V devices such as TVs from a battery) or
a UPS (runs the device from the standard 220V power while the battery charges)

EXTERNAL BATTERY REQUIRED:

Specifications:
- MODEL IVR-1200LBKS
- CAPACITY 1200 VA / 720 W

INPUT:
- Voltage 230VAC
- Acceptable Voltage Range 90-280VAC
- Frequency Range 60Hz or 50 Hz (auto sensing)

OUTPUT:
- AC Voltage Regulation (Batt. Mode) 10%
- Efficiency Peak - 82%
- Transfer Time 20 ms typical
- Waveform (Batt. Mode) Simulated Sine Wave

BATTERY SPECIFICATIONS:
- Battery Voltage 12 VDC
- Floating Charge Voltage 13.7 VDC 2%
- Low Battery Alarm Voltage 10.2VDC 2%
- Shutdown Voltage 9.9VDC 2%
- Overcharge Protection 15.0 VDC 2%
- Maximum Charge Current 10 A or 20 A

PROTECTION
- Full Protection Overload, and short circuit protection

PHYSICAL:
- Dimension, 300 x 360 x 88mm
- Net Weight (kgs) 4.6

OPERATING ENVIRONMENT
- Humidity 0 to 90% Relative Humidity(Non-condensing)
- Operating Temperature 0 0C to 40 0C
- Storage Temperature -15 0C to 50 0C

PACKAGE INCLUDES:

1 x Mecer 1200VA 720W Inverter

2 X Connection cables (red & black)

1 x User manual
