Excellent performance because of an MCU intelligent control technology
A wide range of applicable loads because of pure sine wave AC output
Convenient and practical 5VDC USB output port and 12VDC output port

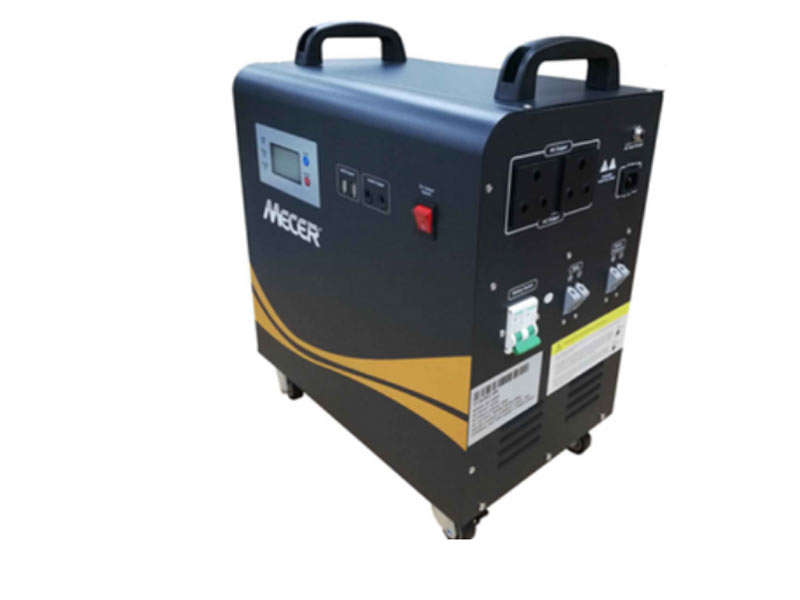

Mecer 1Kw 12V 1x100A Bat Pure Sine Wave (SOL-I-BB-M1)

Features and Specifications

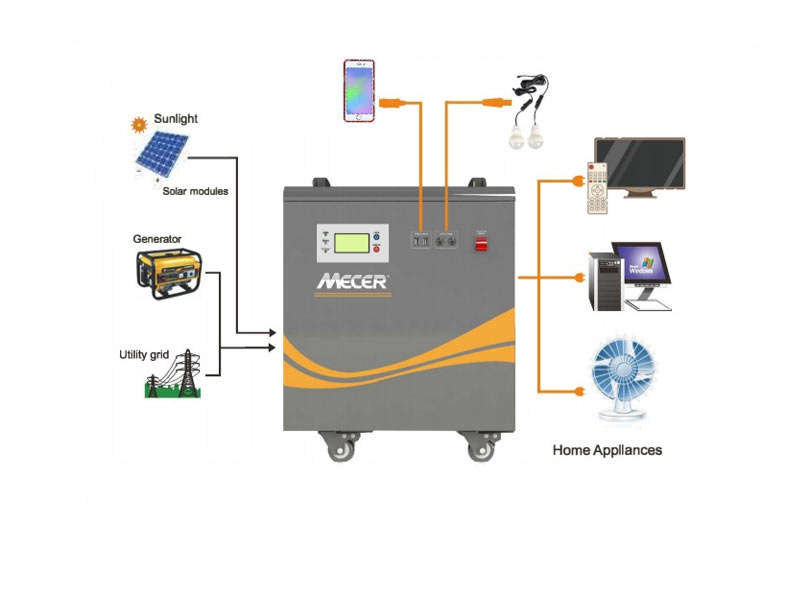

Solar array and battery connrnon-anode system input
Charge by mains supply for flexible configuration (optional function)
Overcharge protection and overdischarge protection for a longer battery life
LCD and LEDS for visualization of operation status of the equipment
Overall automatic protection and alarms including AC output over load protection, short circuit protection etc.

Inverter

Battery voltage 12v
In-built battery specification 100ah / 12v
Rated power 1000w
Output voltage 220vac
Output frequency 50/60hz
Output waveform Pure Sine Wave

Charge by a Mains Supply

Rated Voltage 220VAC
Charge Current 10A (MAX)

Solar Input

Maximum photovoltaic voltage (VDC) 25V
Charge Voltage (VDC) 10-25V
Rated Charge Current (A) 30A
Maximum Power (WP) 360WP
Voltage of Overcharge Protection (VDC) 14.2V
Voltage of Overcharge Recovery (VDC) 14.0V
Voltage of Floating Charge (VDC) 13.7V

DC Output

Voltage of High-Voltage Protection (VDC) 16V
Voltage of High-Voltage Recovery (VDC) 15.2V
Voltage of Low-Voltage Recovery (VDC) 12.6V
Voltage of Low-Voltage Protection (VDC) 11V

- 5VDC USB Output Port 2 UNITS / MAX 2A 2
- 12VDC Output Port DC Ports (Max 2A)
- Starting Temperature of the exhaust fan Ø 45'C
- Ambient Temperature for Operation 0-40'C
- Ambient Temperature for Storage -25 +55'C
- Operation/storage conditions 0-90%
