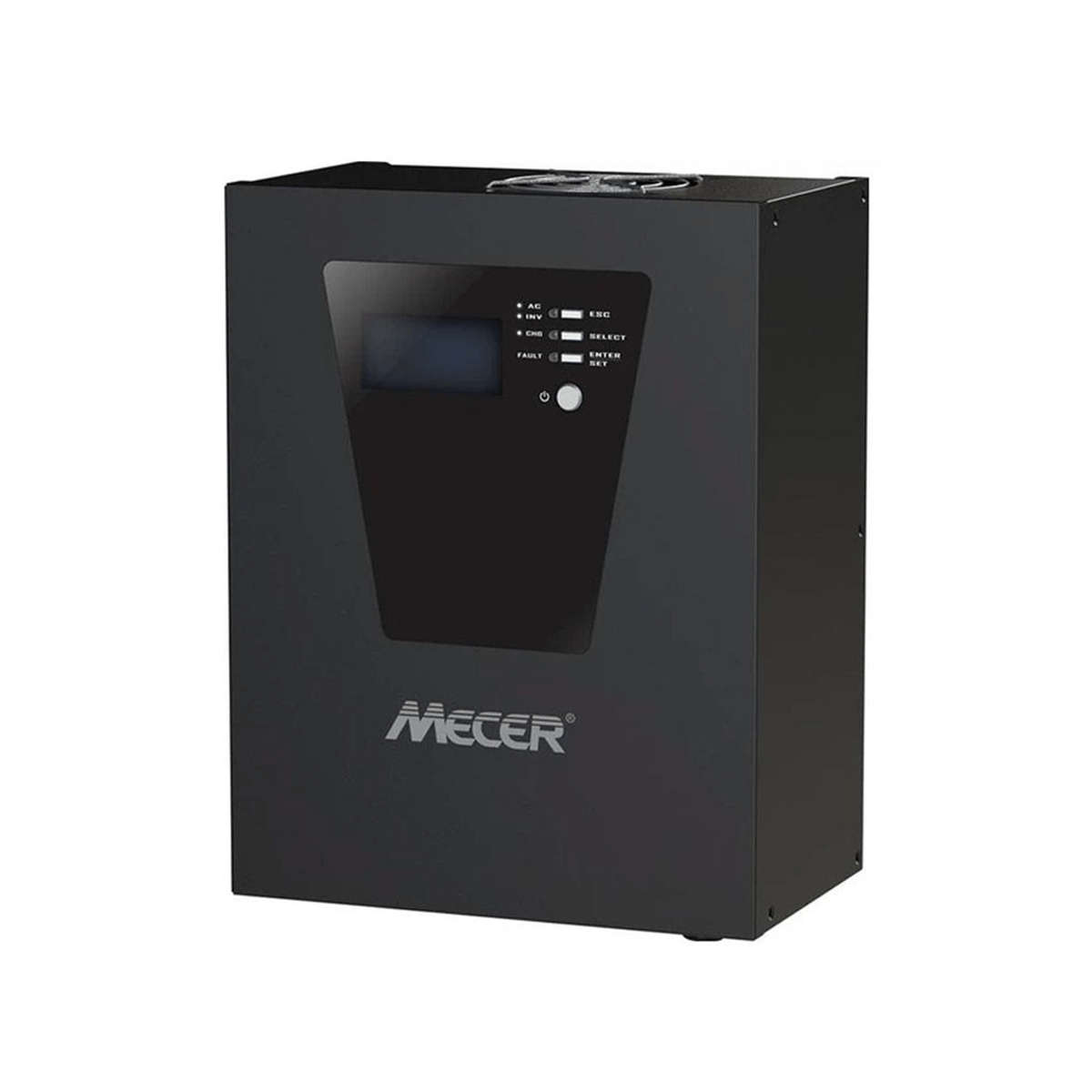

Mecer 2.4kVA 1800W 24v DC-AC Inverter with MPPT Module IVR-2400MPPT

Mecer 2.4kVA 1800W 24v DC-AC Inverter with MPPT Module

This simple Mecer 2.4kVA 1800W 24vDC Inverter with MPPT IVR-2400MPPT is designed to power your home appliances or precious 3C electronics. It also can handle motor-type loads with high surge power such as vacuums, small freezers, or drills. With built-in MPPT solar charger, it can convert solar power to battery power and provide continuous power to connected equipment during nighttime. Mecer IVR-2400MPPT 2400VA 1800W 24V DC-AC Inverter with LCD Display & MPPT built in, Cables are included to connect to the battery, 1x cable to connect to a South African 3pin wall socket is included, Requires 2x 12V deep cycle battery, Please note of connection: Connect RED cable to (+) on battery and BLACK cable to (-) on battery

Features:

• Simulated sinewave inverter
• Wide input voltage range
• 24VDC
• Overload and short circuit protection
• LCD display for comprehensive information
• No Batteries included

Specifications
Model: IVR-2400MPPT
Capacity: 2400VA/1800W
Power Factor: 0.75
Voltage: 220-240 VAC
Voltage Range: 90-280 VAC
Nominal Operating Frequency: 50/60Hz
Maximum Input Current: 13A
Nominal Output Voltage: 220-240 VAC
Voltage Regulation (Batt. Mode): +/-10%
Output Frequency Range: 50/60Hz
Nominal Output Current: 10.4 A
Inrush Current: 13 A
Maximum Output Fault Current: 13.6 A
Transfer Time: 20 ms
Typical Waveform: Simulated Sine Wave
Battery Voltage: 24 VDC
Maximum Battery Discharging Current: 90 A<
Floating Charge Voltage: 27,4 ± 1 VDC
CV Charging Voltage Lead Acid Battery: 28.6 VDC ±1 VDC
Lithium Battery: 29.2 ± 1 VDC
Cut Off Voltage: 21 VDC ± 1 VDC
Maximum AC Charging Current:10 A or 25 A
