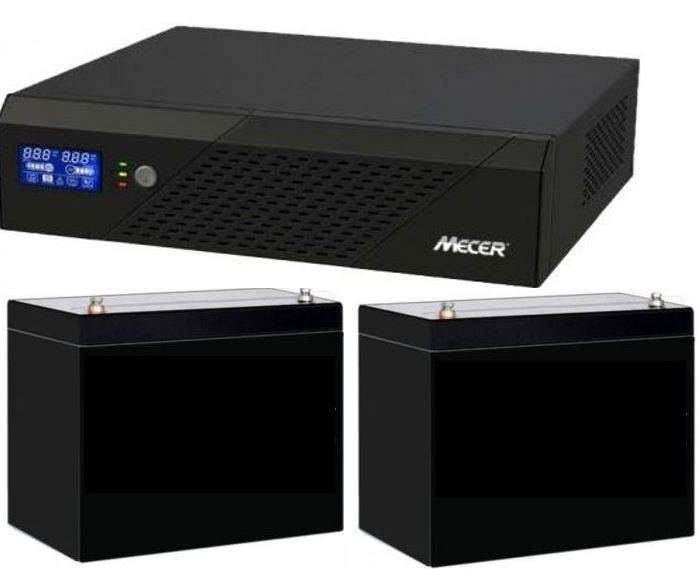

Mecer 2400VA, 1400W, 24V DC-AC Inverter Socket for Solar Power + 2x Vision FullySealed DeepCycle 12V

STOCKS JUST ARRIVED (VERY LIMIT STOCK CAN BE SOLD OUT ANYTIME)

PLEASE PLACE ORDER / MAKE PAYMENT TO SECURE THE STOCK!!

Mecer 2400VA, 1440W, 24V DC-AC Inverter with LCD Display and Socket for Solar Power

• CAPACITY 2.4KVA/ 1440W
• Power Factor 0.6

• Intput voltage range 90-280VAC

• LINE MODE

• Output voltage Bypass mode: 0utput voltage same as input voltage

• AVR mode:Output voltage = Input voltage*1.2 @ Input voltage<200VAC

• Output Frequency Same as input

• BATTERY MODE

• Output voltage 230Vac ±10%

• Transfer Time 20ms typical

• Waveform Modified Sine-wave

• OVERLOAD CAPABILITY

• Bypass Mode (in VA and Watts) Load >110%±15% , alarm 5 mins then fault

• Load >130% ±15%, fault immediately.

• AVR Mode

• (in VA and Watts)@ Input voltage > 170VAC Load >100%±15%, go to bypass mode

• AVR Mode

• (in VA and Watts)@ Input voltage < 170VAC Load >60%±15%, go to bypass mode

• Battery Mode (in W)

• Load>110% ±15%, overload alarm for 15s, and then will switch to fault mode for 10s.

• Then unit will re-start for 5 times.

• Load>120% ±15% , fault & cut off O/P immediately.

• SHORT CIRCUIT PROTECTION

• Line Mode Breaker

• Battery Mode Current limit +Firmware Protection

• BATTERY

• Battery Voltage 24VDC

• Acceptable Battery Type Rechargeable lead-acid battery, Deep discharge battery

• Polarity Reserve Protection Yes

• Charger available I/P range 90~280V

• CHARGER

• Constant Current Charger Voltage 14.3VDC ±2% 28.6VDC ±2%

• Floating Charge Voltage 27.4VDC ±2%

• Maximum Charge Current 10A or 20A

• DC Start Voltage 22VDC

• PHYSICAL

• Dimension, D X W X H (mm) 350 x 90 x 300

• Net Weight (kgs) 5.5

• ENVIRONMENT

• Operating Temperature 0ƒ to 40

• Storage Temperature -15to 50

• Operating Humidity 0 to 90% Relative Humidity(Non-condensing)

Vision Fully-Sealed Deep Cycle 12V 100AH Battery x2
www.vision-batt.com

Length(mm / inch) 339 / 13.35
Width(mm / inch) 173 / 6.81
Height(mm / inch) 214.5 / 8.44
Total Height(mm / inch) 220 / 8.66
Approx. Weight(Kg / lbs) 27.5 / 60.6
Performance Characteristics
Nominal Voltage 12V
Number of cell 6
Nominal Capacity 77oF(25oC)
10 hour rate (10.0A, 10.8V) 100Ah
5 hour rate (17.5A, 10.5V) 87.5Ah.
1 hour rate (66.2A, 9.6V) 66.2Ah
Internal Resistance
Fully Charged battery 77oF(25oC) 5.7mOhms
Self-Discharge
3% of capacity declined per month at 20oC(average)
Operating Temperature Range
Discharge -20~60oC
Charge -10~60oC
Storage -20~60oC
Max. Discharge Current 77oF(25oC) 900A(5s)
Short Circuit Current 2500A
Charge Methods: Constant Voltage Charge 77oF(25oC)
Cycle use
Maximum charging current 30A
Temperature compensation -30mV/oC
Standby use
Temperature compensation -20mV/oC
