Mecer 2400VA, 1440W, 24V DC-AC Inverter with LCD Display. No solar built-in (option not available).. Batteries not included. Includes: Battery cables, 1x cable with SA 3pin plug. Requires 2x 12V deep cycle batteries. Please take note of connection polarity (+Red, - Black). Output: 3-pin South African sockets at back of unit (SANS 164-1).
IVR-2400LBKS

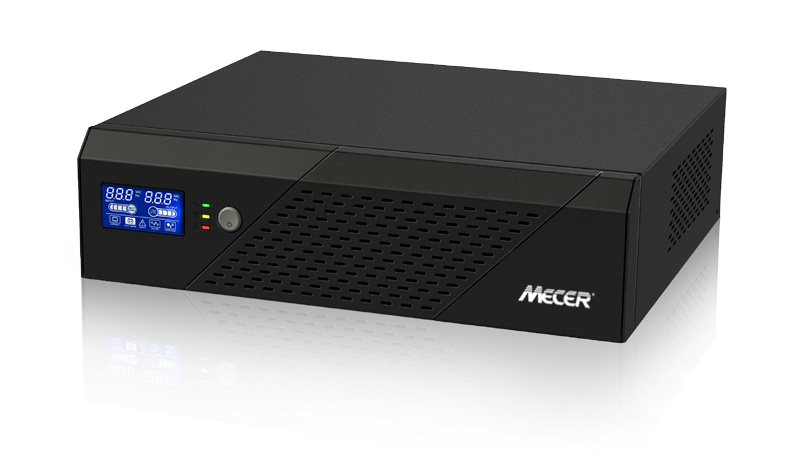

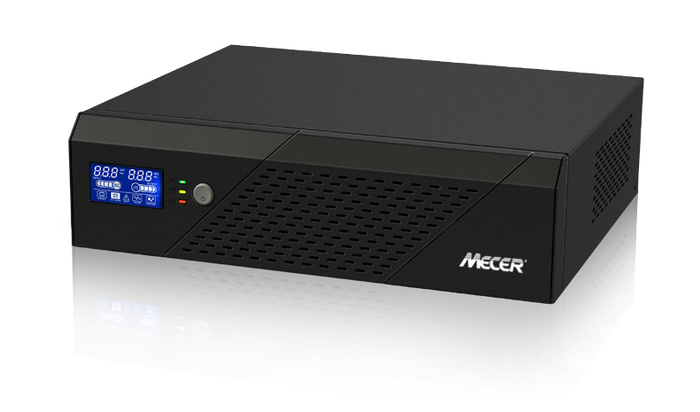

Mecer 2400VA, 1440W, 24V DC-AC Inverter
Mecer 2400VA, 1440W, 24V DC-AC Inverter with LCD Display. No solar built-in (option not available).. Batteries not included. Includes: Battery cables, 1x cable with SA 3pin plug. Requires 2x 12V deep cycle batteries. Please take note of connection polarity (+Red, - Black). Output: 3-pin South African sockets at back of unit (SANS 164-1).
Features:
- Simulated sinewave inverter
- Wide input voltage range
- 12VDC or 24VDC available
- Overload and short circuit protection
- LCD display for comprehensive information
*Please take note of connection polarity (+Red , - Black). : Connect RED cable to (+) on battery and the (+) on the unit, and BLACK cable to (-) on battery and the (-) on the unit. Place cable lug directly onto the battery terminal first, follow up with the washer and then the lock washer, and then the nut. Do not put a washer between the battery terminal and cable. Connect the positive cable first. Follow instructions in manual.
FAQ:
Does this product function like a ups?
Yes, it does function similar to a UPS, without the constant beeping.
Can I have everything connected to it and as soon as electricity goes then it'll power up from batteries and when electricity resumes it'll get charged automatically?
Yes, you have 220V outlets, and you can leave everything plugged in. When power goes out, everything continues to work without interruption.
| Specifications |
| Product Code | IVR-2400LBKS |
| MODEL | IVR-2400LBKS |
| CAPACITY | 2400VA/ 1440W |
| INPUT |
| Voltage | 230 VAC |
| Acceptable Voltage Range | 90-280 VAC |
| Frequency | 50 Hz/60 Hz (Auto sensing) |
| OUTPUT |
| AC Voltage Regulation (Batt. Mode) | ± 10% |
| Efficiency (Peak) | 85% |
| Transfer Time | 20 ms typical |
| Waveform (Batt. Mode) | Simulated sine wave |
| BATTERY & AC CHARGER |
| Battery Voltage | 24 VDC |
| Floating Charge Voltage | 27.4 VDC ±2% |
| Low Battery Alarm Voltage | 20.4Vdc ±2% |
| Shutdown Voltage | 19.8Vdc ±2% |
| Overcharge Protection | 30.0Vdc ±2% |
| Maximum Charge Current | 10 A or 20 A (Selectable) |
| PROTECTION |
| Full Protection | Overload, short circuit and polarity reserve protection |
| PHYSICAL |
| Dimension, D X W X H (mm) | 300 x 360 x 88 |
| Net Weight (kgs) | 4.8 |
|
