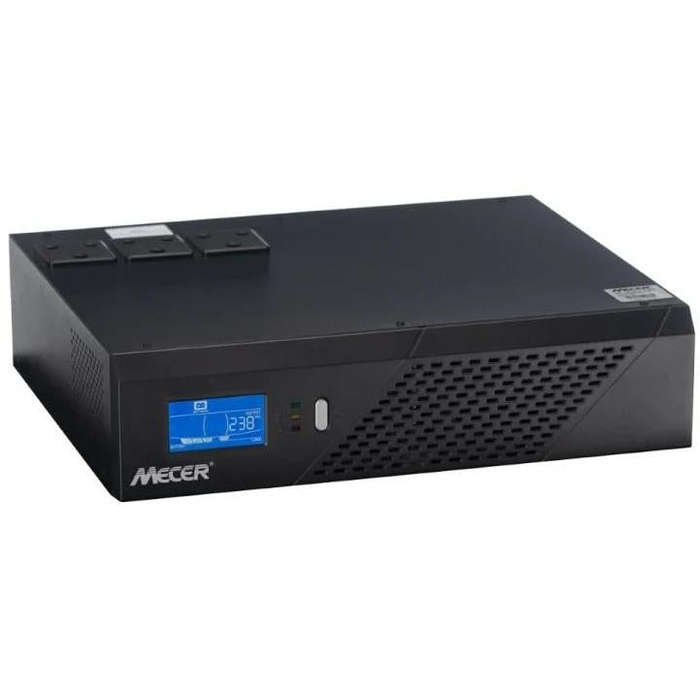

MECER 2400VA 1440W 24V INVERTER - NO BAT

MECER 2400VA 1440W 24V INVERTER - NO BAT - MR-2400;BKS

Features

Simulated sinewave inverter

Wide input voltage range

12VDC or 24VDC available

Overload and short circuit protection

LCD display for comprehensive information

Optional Solar Charger

MODEL: IVR- IVR-2400LBKS

CAPACITY:  2400VA/ 1440W

INPUT

Voltage: 230 VAC

Acceptable Voltage Range: 90-280 VAC

Frequency: 50 Hz/60 Hz (Auto sensing)

OUTPUT

AC Voltage Regulation (Batt. Mode): ± 10%

Efficiency (Peak): 85%

Transfer Time: 20 ms typical

Waveform (Batt. Mode): Simulated sine wave

BATTERY & AC CHARGER

Battery Voltage_ 24 VDC

Floating Charge Voltage_ 27.4 VDC ±2%

Low Battery Alarm Voltage_ 20.4Vdc ±2%

Shutdown Voltage_ 19.8Vdc ±2%

Overcharge Protection_30.0Vdc ±2%

Maximum Charge Current_ 10 A or 20 A (Selectable)

PROTECTION

Full Protection: Overload, short circuit and polarity reserve protection

PHYSICAL

Dimension, D X W X H (mm): 300 x 360 x 88

Net Weight (kgs): 4.8

OPERATING ENVIRONMENT

Humidity: 0 to 90% Relative Humidity(Non-condensing)

Operating Temperature: 0? to 40?

Storage Temperature_ -15? to 50?
