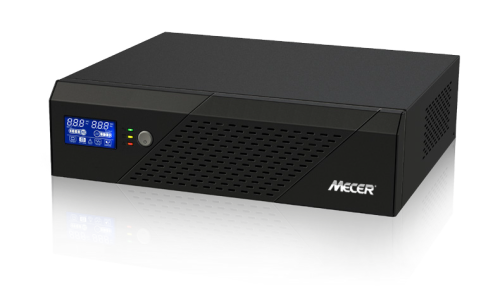

MECER 2400VA 1440W 24V Inverter

MODEL    IVR-2400LBKS: CAPACITY    2400VA/ 1440W

FEATURES:

• Simulated sine-wave inverter
• Wide input voltage range
• 12VDC or 24VDC available
• Overload and short circuit protection
• LCD display for comprehensive information

INPUT:

• Voltage    230 VAC
• Acceptable Voltage Range    90-280 VAC
• Frequency    50 Hz/60 Hz (Auto sensing)

OUTPUT:

• AC Voltage Regulation (Batt. Mode)    ± 10%
• Efficiency (Peak)    85%
• Transfer Time    20 ms typical
• Waveform (Batt. Mode)    Simulated sine wave

BATTERY & AC CHARGER:

• Battery Voltage    24 VDC
• Floating Charge Voltage    27.4 VDC ±2%
• Low Battery Alarm Voltage    20.4Vdc ±2%
• Shutdown Voltage    19.8Vdc ±2%
• Overcharge Protection    30.0Vdc ±2%
• Maximum Charge Current    10 A or 20 A (Selectable)

PROTECTION:

• Full Protection    Overload, short circuit and polarity reserve protection

PHYSICAL:

• Dimension, D X W X H (mm)    300 x 360 x 88
• Net Weight (kgs)    4.8

OPERATING ENVIRONMENT:

• Humidity    0 to 90% Relative Humidity(Non-condensing)
• Operating Temperature    0 to 40
• Storage Temperature    -15 to 50
