External Batteries Required
Features
- Simulated sine wave inverter
- Wide input voltage range
- 12VDC or 24VDC available
- Overload and short circuit protection
- LCD display for comprehensive information
- MPPT
Specifications:
Model: IVR-2400MPPT
Capacity: 2400VA/1800W
Power Factor: 0.75
Input:
Voltage: 220-240 VAC
Voltage Range: 90-280 VAC
Nominal Operating Frequency: 50/60Hz
Maximum Input Current: 13A
Output:
Nominal Output Voltage: 220-240 VAC
Voltage Regulation (Batt. Mode): +/-10%
Output Frequency Range: 50/60Hz
Nominal Output Current: 10.4A
Inrush Current: 13A
Maximum Output Fault Current: 13.6A
Transfer Time: 20 ms typical
Waveform: Simulated Sine Wave
Battery:
Battery Voltage: 24 VDC
Maximum Battery Discharging Current: 90A
Floating Charge Voltage: 27.4 VDC ±1 VDC
CV Charging Voltage:
Lead Acid Battery: 28.6 VDC ±1 VDC
Lithium Battery: 29.2 VDC ±1 VDC
Cut Off Voltage: 21.0 VDC ±1 VDC
Maximum AC Charging Current: 10A or 25A
Solar Charger:
Solar Charger Type: MPPT
Maximum PV Array Open Circuit Voltage: 100 VDC
MPP Range @ Operating Voltage: 30 ~ 80 VDC
Max. PV array Input Power: 1650W
Max. PV array Power to support: 1320W
Maximum Solar Charging Current: 55A
Maximum Charging Current (Utility +SCC): 55A
Physical:
Dimension (DxWxH) mm: 272 x 212 x 127
Net Weight (kgs): 4.8
Protective Class: I
Ingress Protection Rating: IP20
Environment:
Humidity: 0 ~ 90% RH (No condensing)
Operating Temperature: 0 ~ 55°C
Altitude: 0 ~ 1000 m
What's in the box

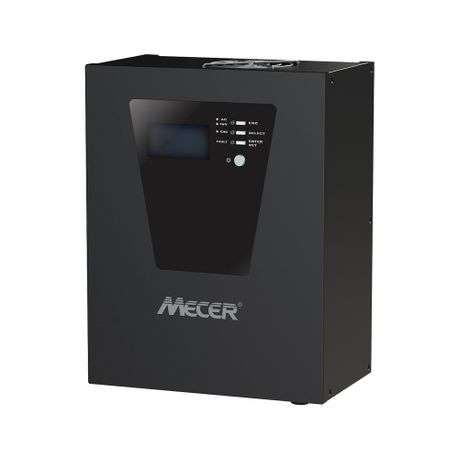

1 x Mecer 2400VA, 1800W, 24V Inverter With MPPT Solar Charger Lithium And Lead Acid Battery Controller - IVR-2400MPPT
