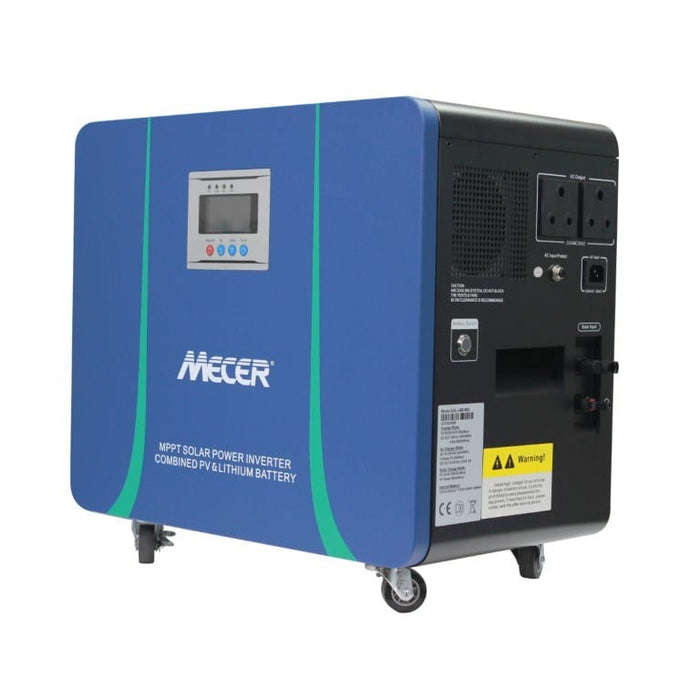

Mecer 2kVA 2kW 25.6V 100Ah Lithium Battery Mobile Inverter with 820W MPPT Controller SOL-I-BB-M2L

Mecer 2kVA 2kW 25.6V 100Ah Lithium Battery Mobile Inverter with 820W MPPT Controller SOL-I-BB-M2L

Features:

• Pure sine wave output

• 2000 cycles lifePO4 battery

• Mains supply mode, Battery mode

• 5VDC USB 2.0 ports

• 12VDC output ports

• MPPT solar charge controller

• Over charge protection as well as over discharge protection

• Intelligent exhaust fan

Technical Specification

Rated Power: 2 000VA / 2 000W

Input

Voltage range: 170 - 275V

Mains charging current: 10A

Frequency Range: 45-65Hz

Output

Voltage: 230V AC

Frequency: 50/60Hz

Output wave form: Pure Sine Wave

Battery

Battery Voltage: 25.6V DC

Battery capacity: 1X 100Ah

Battery cycle life: 2 000 Cycles @ DOD 80%

Solar Charger

Solar Charge Type: MPPT

Maximum PV Array Power: 840W

Number of MPPTs: 1

MPPT Range @ Operating Voltage: 35 - 100V DC

Maximum Solar Charge Current: 30A

Floating Charge Voltage: 28.4V DC

DC Output

Low Voltage Recovery: 26.8V DC

Low Voltage Protection: 22.4V DC

5V DC USB Output: 2 Pcs 5V DC, USB 2.0, Max 2A

12V DC Output Ports: 2 Pcs Max 2A

Physical

Heat Dissipation / Cooling: Intelligent exhaust fan (Temperature controlled)

Dimensions W X D X H (mm): 480 X 192 X 410

Package size W X D X H (mm): 527 X 277 X 475

Net Weight (kgs): 45 kg

Gross Weight (kgs): 48 kg

*Product images are for illustration purposes only.
