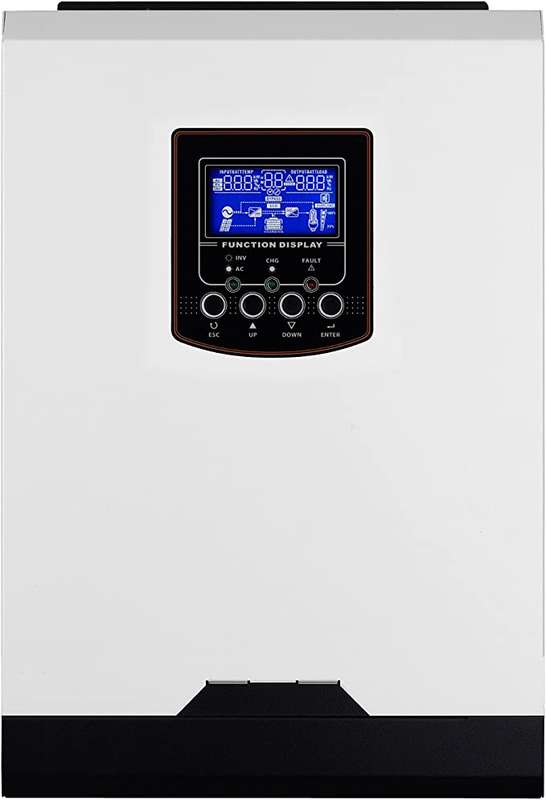

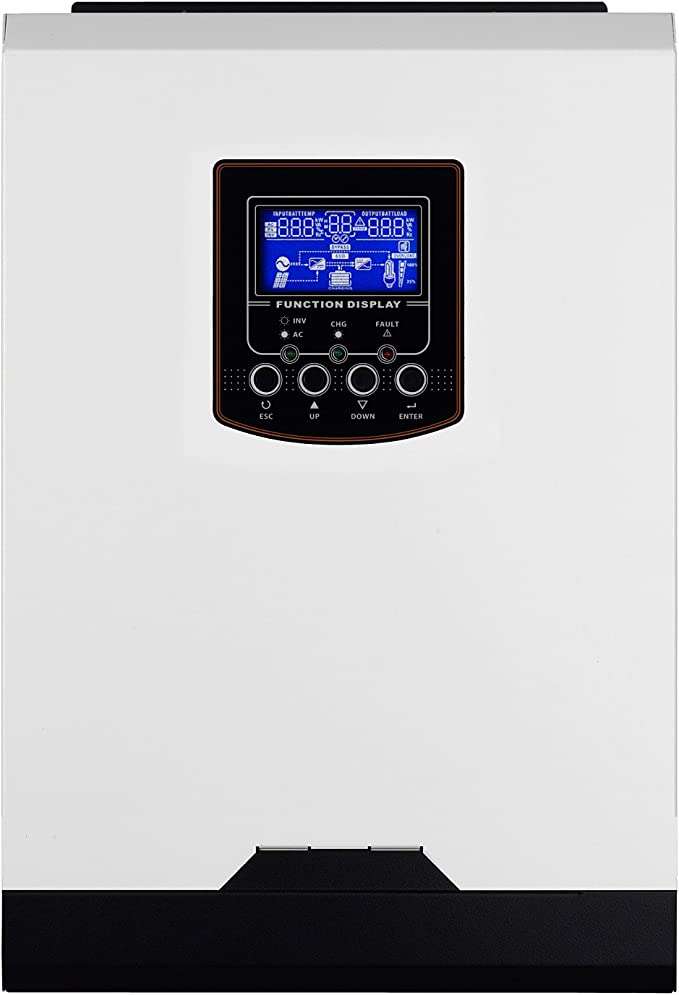

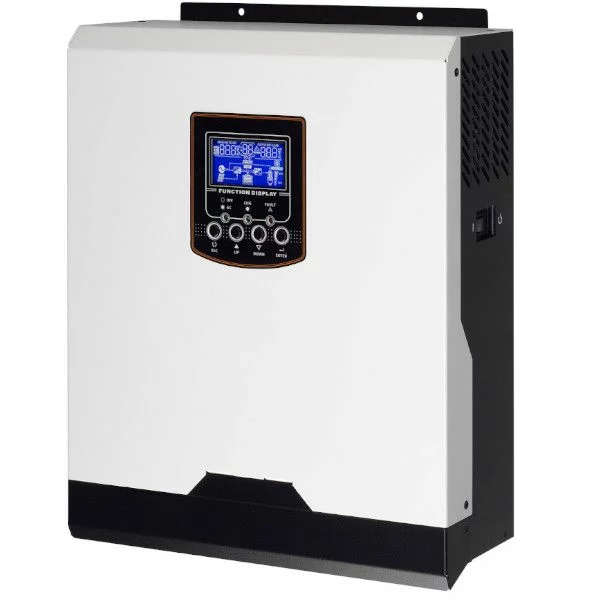

Mecer 3kW 24V 1200W PWM Off Grid Pure Sine Wave Inverter
Cost-effective solar inverter
This is a multi-functional inverter/charger, combining the functions of an inverter, solar charger and battery charger to offer uninterruptible power support in a portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operations such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Main Features
| MODEL | Axpert VP3000-24 |
| Rated Power | 3000 VA / 3000 W |
| INPUT | |
| Voltage | 230 VAC |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances) |
| Frequency Range | 60/50 Hz (Auto sensing) |
| OUTPUT | |
| AC Voltage Regulation (Batt. Mode) | 230 VAC 5% |
| Surge Power | 6000 VA |
| Efficiency (Peak) | 93% |
| Transfer Time | 10 ms (For Personal Computers); 20 ms (For Home Appliances) |
| Waveform | Pure Sine Wave |
| BATTERY | |
| Battery Voltage | 24 VDC |
| Floating Charge Voltage | 27 VDC |
| Overcharge Protection | 33 VDC |
| SOLAR CHARGER & AC CHARGER | |
| Solar Charger Type | PWM |
| Maximum PV Array Open Circuit Voltage | 80 VDC |
| Maximum PV Array Power | 1200W |
| MPPT Range @ Operating Voltage | N/A |
| Maximum Solar Charge Current | 50A |
| Maximum AC Charge Current | 25A |
| Maximum Charging Current | 70A |
| PHYSICAL | |
| Dimension, D X W X H (mm) | 100 x 285 x 334 |
| Net Weight (kgs) | 6.3 |
| Communication Port | USB, RS-232 |
| OPERATING ENVIRONMENT | |
| Operating Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | -10 to 50 |
| Storage Temperature | -15 to 60 |
