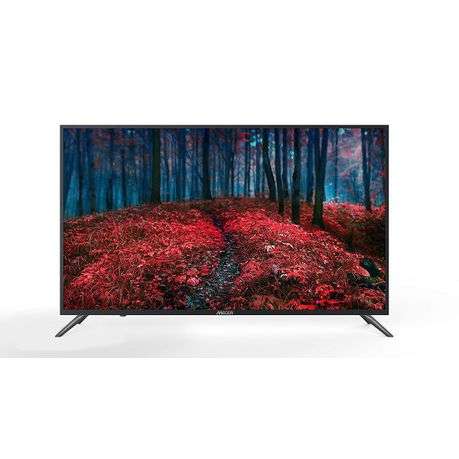

Mecer 55S93U 55" 4K UHD LED Display Panel

Mecer LED Display Panel Mecer 55" 16:9 4K UHD LED Panel Product Code 55S93U EAN Code 55S93U 3840 x 2160 3 x HDMI, 2 x USB Built-in Media Player Built-in Android 6.0 Module with ARM Cortex-A9 Dual Core CPU, 1.5GB DDR3 and 8GB eMMC Embedded 802.11 b/g/n Wireless LAN Support HDR Built-in Speakers (8W x 2) Includes Pedestal Panel Specification Panel supplier: FPD Size: 54.64" diagonal Panel: FPD panel(UHD) Display scale 16:09 Backlight: DLED direct Type Maximum resolution: 38402160 Best working resolution: 38402160@60Hz Active Area: 1209.6mm680.4mm Viewing angle: CR?10 Min(H:150,V:150)?Typ(H:178,V:178) LCM Center Luminance of White: 300cd/m2 Contrast ratio: 1200: 1 Response time: 8ms Display Colors: 1.07B Color Gamut(NTSC:): ?NTSC 62% .07G Hardware Specification Platform Model: MSD6586-T8E2- DVB(Android) CPU Frame: ARM Cortex A9/1.2GHz/dual-core GPU: Mali-T400MP2/dual-core ROM(Flash): 8GB RAM(DDR3): 1.5G DDR3 Remote control model: RC-E44-10 Remote control communicate protocol: NEC IR(infrared receiver) board Frequency 38KHz(Default) LED status power on off stand by blue Remote control active area ?8m straight line , ?7m horizontal30 and vertical15 AC Switch YES Power plug type - 3 Pin SA Plug; Power Cord length - 1.5m Loud Speakers Type - Open speakers; Audio power?output?- 8W+8W WIFI YES; Type - 1R1T Input Interface HDMI 1.4 (HDCP 1.4) HDMI 2.0 (HDCP 2.2) 3 USB 2.0 2 YPbPr In 1 CI 1 RJ-45 1 Earphone 1 SPDIF Out 1 Software Function General OSD languages Default Options OAD(on air download) YES Power on mode Standby Sleep time setting YES Channel list YES Channel Edit YES Teletext YES PVR YES EPG YES V_CHIP/Parental Guidance YES AD(Audio description) YES Picture mode Standard/Soft/Bright/User Color temperature Cold 13000K(?26") 9600K ??26") Standard(default) 10000K(?26") 8000K ( ?26") Warm 7500K (?26") 6500K (?26") Zoom full?default?/4:3/Film/subtitle/Auto 3D Comb filtering Sound mode Standard/Music/Movie/User Mute YES HDMI-ARC HDMI-1 HDMI-CEC YES Smart Operation system Android6.0 preinstall APK Settings,Browser,MemoryClean,ApkInstaller,Downloads,Multimedia,BackToTV,User's Manual Flash playing YES OTA YES Miracast/Wifi direct Miracast Structure Information Base(optional) Model name BCC6-55 Iron Gray Size? W x H x T without stand 124172083mm with stand 1243782240mm in carton 1355824175mm Net Weight without stand 13.04kg with stand 13.14kg Gross Weight without stand 17.04kg with stand 17.14kg Wall hanging 200mm200mm Power Management&Safety&Certificate Power input 100-240Vac Rated power 155W Standby power ?0.5W What's in the box 1x LCD (with power cord) 1x Stand 1x Remote control (with batteries) 1x Instructions
