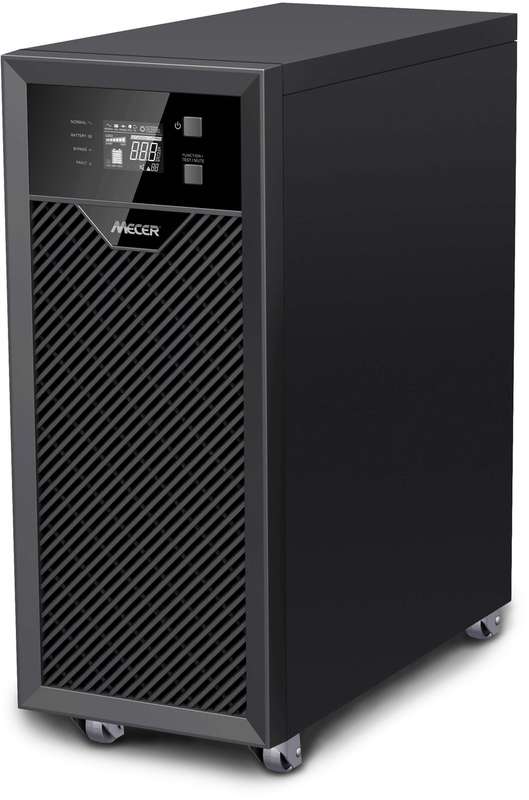

Mecer 6000VA / 6000W On-line Pure Sine Wave UPS - Tower

Mecer ME-6000-WPTV 6000VA 6000W On-line Pure Sine Wave UPS

MECER INNOVA 6KVA ON-LINE TOWER UPS PF: 0.9; Built-in Battery 15x 12V/9Ah + SNMP card - (Battery Warranty 6 Months).

Specifications
Product Code ME-6000-WPTVa
item ME-6000-WPTV / ME-10000-WPTV
Dimensions W*D*H(mm) 248 x 500 x616 248 x500 x616
Weight(kg) 58.9 62.1
Power
Apparent Power(KVA) 6KVA / 10KVA
Active power(KW) 5.4KW / 9KW
Mains
Voltage range 120Vac-275Vac(phase to phase)
Current 32.1A max 52.6 A max
Frequency range 40Hz-70Hz
Power factor 0.99
Output
Rating Voltage 230Vac(±1%)
Rating Current 27A 45A
Frequency range 50Hz x (1±1%), Follow main power in phase lock range
Power factor 0.9
105%-125%, load transfer to bypass mode after 10 min (0-30°C) or
1min(30-40°C)
Output Overload 125%-150%, load transfer to bypass mode after 30s
Over 150%, load transfer to bypass after 0.5s
Load crest ratio 3:1( max)
THD Environmental and safety
EMC Standard EN IEC 62040-2:2018 / EN 62040-2:2006 / IEC 62040-2:2016
Safety Standard EN62040-1:2008+A1:2013
Operation
Operation 0-40 °C
temperature
Store temperature -25 °C to 55 °C
Relative humidity 20% to 90%
Altitude
