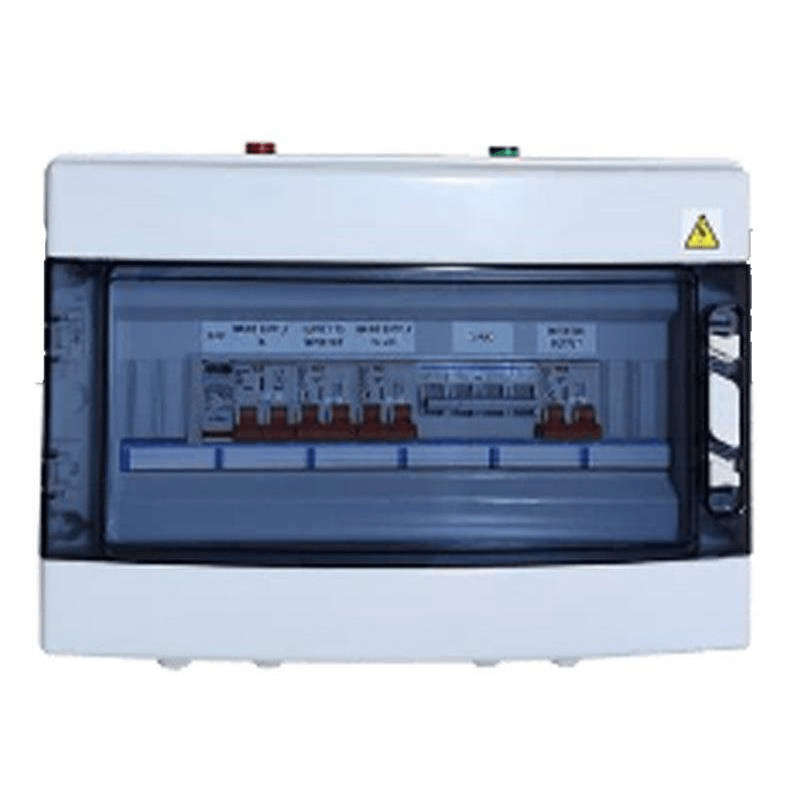

Mecer AC Backboard For 8kW Inverter SOL-I-AX-8 BACKBOARD
Features and Specifications
Eco-Friendly Design:
Manufactured using recycled materials, this backboard embodies a commitment to environmental responsibility.
Enhanced Safety:
Built-in safety features like surge protection and grounding ensure the safe operation of your inverter and connected equipment.
Streamlined Installation:
The pre-drilled mounting holes and easy-to-follow instructions facilitate a quick and hassle-free installation process.
Optimal Performance:
Engineered to optimize inverter performance, this backboard ensures efficient energy conversion and distribution.
Durable Construction:
Crafted from high-quality, UV-resistant materials, this backboard is built to withstand harsh weather conditions, guaranteeing long-lasting performance.
Improved System Organization:
The backboard provides a centralized location for mounting your inverter and other essential components, promoting a neat and organized solar setup.
- AC input isolatable
- Prewired for ease of installation
- Grid and backup indication via LED
- Break before making a changeover switch
- Inverter input and output protection via circuit breakers
- Type II AC surge protection device with status indication
Technical Data
- Max open circuit voltage Voc 460V AC
- Max current 2 Pole 63A
- Max backup port current 2 Pole 40A
- Changeover switch — centre off 2 Pole 63A SANS/IEC 60947-3
- Change over switch grid - inverter Grid — off — inverter 2 Pole 63A
- AC connection input M20 compression glands
- AC connection output M20 compression glands
- Earth connection M6 earth stud
- Breather plug M12 Incorporated
- Operating state/fault indication Green / Red
- Grid on indication Red light illuminated
- Backup port on indication Green light illuminated
- IP Rating IP65
- Double insulated Class II
- UV Protection ISO Standard 4892-2 Method A:500H
- Resistance to impact IK08
Embrace sustainable practices and empower your home with clean energy using the Sustainable Energy AC Backboard.
This eco-friendly solution offers a safe, efficient, and user-friendly platform for managing your solar power system.
