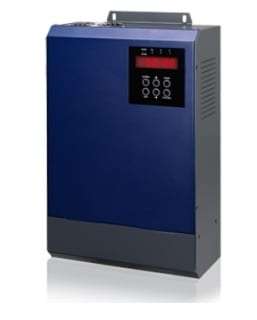

Introducing the Mecer Aspire Water Pump Solar Inverter 3 Phase 2.2kW
Specifications
Product Code: SOL-I-AS-2
Model: Aspire 2.2KW
RATED OUTPUT POWER: 2200 W(3HP) (supports 0.75~3HP water pump)
PV INPUT (DC): Nominal DC Voltage / Maximum DC Voltage: 540 VDC / 800 VDC
Start-up Voltage: 250 VDC
MPPT Voltage Range: 250 VDC ~ 780VDC
Number of MPP Trackers: 1
AC INPUT: Input Voltage: N/A (-15% ~ +10%)
Input Frequency: 47 Hz ~ 63 Hz
OUTPUT: Nominal Voltage: 3 x 380/400/415/440 VAC
Efficiency: > 97%
Nominal Output Current: 5.0 A
Motor Type: Three-phase asynchronous motor
motor Frequency Precision: ±0.2%
PROTECTION: Full Protection Phase lost, dry pumping, motor locked, weak sunlight, over-voltage, under-voltage, over-current, surge, overtemperature and short circuit protection
PHYSICAL: Dimension, D x W x H (mm): 110 x 230 x 342
Net Weight (kgs): 5.5
Type of Mechanical Protection: IP20
INTERFACE: Communication Port: RS-232/RS-485
ENVIRONMENT: Humidity: Operating Temperature: -20°C ~ 45°C at 100% full load, 46°C ~ 60°C power derating
Power Your Pump with the Mecer Aspire Water Pump Solar Inverter 3 Phase 2.2kW!
Elevate your water pumping experience with the amazing Mecer Aspire Water Pump Solar Inverter. Instantly upgrade to three-phase power and experience exclusive efficiency with this 2.2kW powerhouse. No more worrying about power outages or fluctuating energy this inverter ensures consistent and reliable performance for your water pump.
Experience Advanced Features
Say goodbye to motor issues with the built-in protections including phase loss, dry pumping, and over-voltage. The Mecer Aspire Water Pump Solar Inverter offers precision control, with ±0.2% frequency precision, ensuring optimal performance for your three-phase asynchronous motor. With a sturdy IP20 mechanical protection, this inverter is built to last.
Act Fast Limited Availability!
This high-demand product is flying off the shelves. Don't miss your chance to get your hands on the Mecer Aspire Water Pump Solar Inverter 3 Phase 2.2kW. Order now before it's gone!
Ready to Power Up? Add to Cart Now!
