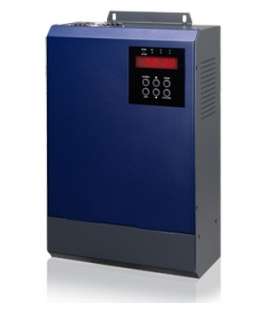

MECER Aspire Water Pump Solar Inverter 3 Phase 2.2kW

MECER Aspire Water Pump Solar Inverter 3 Phase 2.2kW, Built-in MPPT solar charger, 800 VDC Maximum DC Voltage, Built-in full protection and self-diagnosis, Soft start function prevents water hammer effect and extends system lifecycle, Comprehensive LEDs and display screen for real-time system status, Remote monitoring through RS-485

Overview:

Aspire Solar Pump Inverter
The 3-phase in, 3-phase out solar pump inverter is environmentally friendly with a long lifetime and lower maintenance costs. Built-in MPPT ensures you to get the best output power and optimizes the performance of water pump solar Inverter along the day as it starts and stops automatically based on the intensity of solar radiation.

Features:

Built-in MPPT solar charger
Supports single phase or three-phase asynchronous motor depending on models
Supports single phase AC input when PV energy is not sufficient (only for Aspire 2.2KW LS model)
Built-in full protection and self-diagnosis
Soft start function prevents water hammer effect and extends system lifecycle
Comprehensive LEDs and display screen for real-time system status
Remote monitoring through RS-485
Optional remote panel available

Specifications:

Model Aspire 2.2KW
RATED OUTPUT POWER 2200 W(3HP)
(supports 0.75~3HP
water pump)
PV INPUT (DC)
Nominal DC Voltage /Maximum DC Voltage 540 VDC / 800 VDC
Start-up Voltage 250 VDC
MPPT Voltage Range 250 VDC ~ 780VDC
Number of MPP Trackers 1
AC INPUT
Input Voltage N/A
(-15% ~ +10%)
Input Frequency 47 Hz ~ 63 Hz
OUTPUT
Nominal Voltage 3 x 380/400/415/440 VAC
Efficiency > 97%
Nominal Output Current 5.0 A
Motor Type Three-phase asynchronous motor
motor
Frequency Precision ±0.2%
PROTECTION
Full Protection Phase lost, dry pumping, motor locked, weak sunlight, over-voltage, under-voltage, over-current, surge, overtemperature and short circuit protection
PHYSICAL
Dimension, D x W x H (mm) 110 x 230 x 342
Net Weight (kgs) 5.5
Type of Mechanical Protection IP20
INTERFACE
Communication Port RS-232/RS-485
ENVIRONMENT
Humidity Operating Temperature -20°C ~ 45°C at 100% full load, 46°C ~ 60°C power derating
