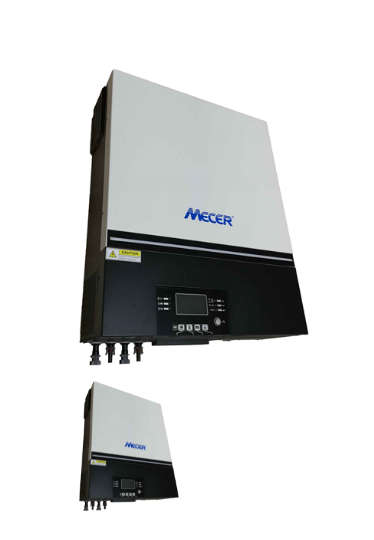

Mecer Axpert MAX Hybrid Off-Grid Inverter 8KVA 8KW SOL-I-AX-8M

STOCK AVAILABILITY

Please confirm stock prior to purchase: We can'tguarantee all products are in stock at time of order. To avoid disappointment,please confirm availability prior to purchase

Please do NOT order withno intention of paying.

Features
Customizable status LED bar with RGB breathing lights.
Built-in Wi-Fi for mobile monitoring (Android/iOS App is available).
Supports USB On-the-Go function.
Reserved communication port for BMS (RS485, CAN-BUS or RS232).
Replaceable fan design for ease of maintenance.
Battery independent function.
Enhanced AC/Solar charger to 120A.
Built-in anti-dust kit.
Parallel operation up to 6 units.

Specifications
Model: SOL-I-AXMAX-8K48V.
Rated Power: 8000VA/8000W.
Parallel Capability: Yes, 6 units.

Input
Voltage: 230 VAC.
Voltage Range: 170-280 VAC (For Computers), 90-280 VAC (For Home Appliances).
Frequency Range: 50 Hz/60 Hz (Auto sensing).

Output
AC Voltage Regulation (Batt. Mode): 230VAC ± 5%.
Efficiency (Peak): 90% ~ 93%.
Transfer Time: 15 ms (For Personal Computers), 20 ms (For Home Appliances).
Waveform: Pure sine wave.
No Load Power Consumption: <70W.

Efficiency
Battery Voltage: 48 VDC.
Floating Charge Voltage: 54 VDC.
Overcharge Protection: 66 VDC.

Solar Charger & AC Charger
Solar Charger Type: MPPT.
Maximum PV Array Power: 8000W (4000W x 2).
MPP Range @ Operating Voltage: 90 ~ 450 VDC.
Maximum PV Array Open Circuit Voltage: 500 VDC.
Number of MPP Trackers: 2.
Maximum Solar Charge Current: 120 A.
Maximum AC Charge Current: 120 A.
Maximum Charge Current: 120 A.
