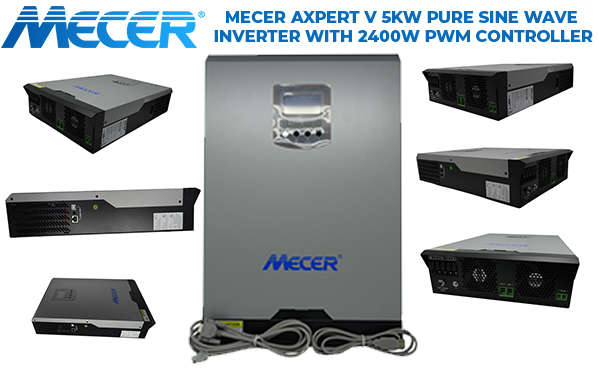

Mecer Axpert V 5kW Pure Sine Wave Inverter with 2400W PWM controller - Configurable AC/Solar Input priority via LCD setting, PWM Solar charger Type, 2400W Maximum PV Array power, 105 VDC Maximum PV Array open Circuit voltage, USB & RS-232 communication Port, 48 VDC battery voltage, 10 MS transfer time, Retail Box , 1 year Limited Warranty
Product Overview
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
There are two different types of built-in solar chargers: PWM and MPPT solar charger. For the detailed product specification, please consult your local dealers.
Features
Pure sine wave inverter
Configurable input voltage range for home appliances and personal computers via LCD setting
Configurable battery charging current based on applications via LCD setting
Configurable AC/Solar Charger priority via LCD setting Compatible to mains voltage or generator power
Auto restart while AC is recovering
Overload/ Over temperature/ short circuit protection
Smart battery charger design for optimized battery performance
Cold start function
Optional anti-dust kit

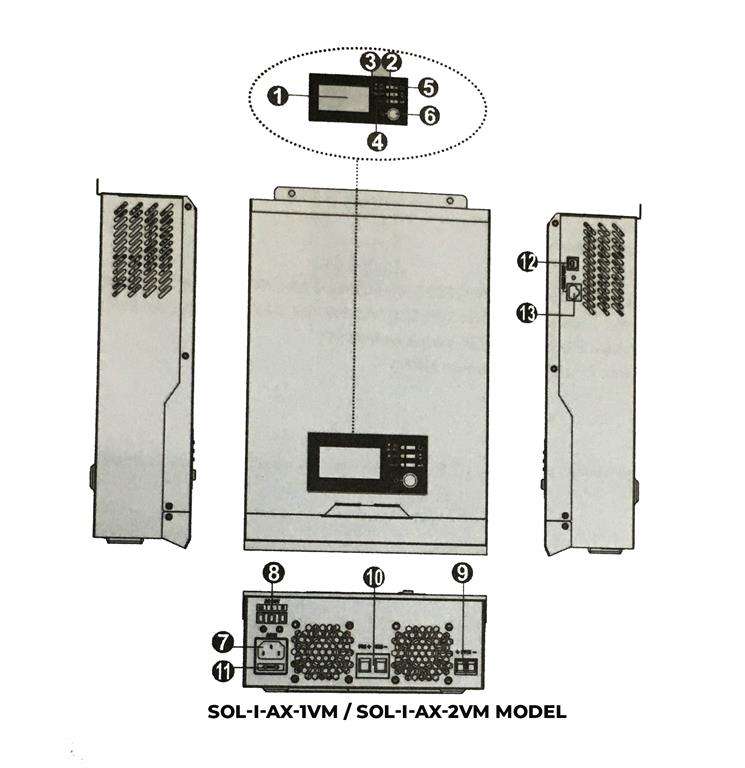

1. LCD display 2. Status indicator 3. Charging indicator 4. Fault indicator 5. Function buttons 6. Power on/off switch 7. AC input 8. AC output 9 PV input 10. Battery input Ill Circuit breaker 12. USB communication port 13. RS-232 communication port

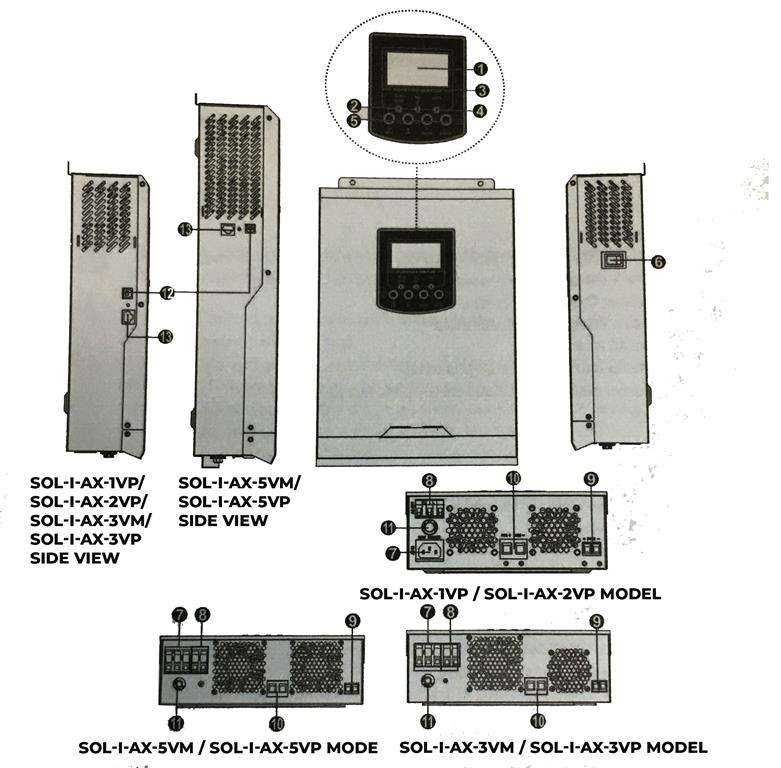

1. LCD display 2. Status indicator 3. Charging indicator 4. Fault indicator 5. Function buttons 6. power on/off switch 7. AC input 8. AC output 9. PV input 10. Battery input 11. Fuse 12. USB communication port 13. R5-232 communication port
