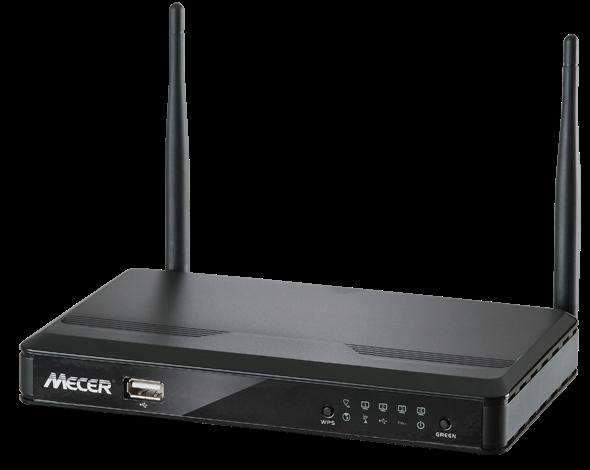

Mecer CDD461AM Dual-WAN 3G / ADSL2+ Router
Device Interface
- ADSL Line: 1 x RJ-11 port for DSL line
- Wireless WAN: 1 x USB 2.0 for External 3G HSPA Modem
- USB Sharing: USB 2.0 for external Storage device Option
- Ethernet LAN: 4 x RJ-45 ports, 10/100Mbps, auto-MDI/MDIX
- Antenna: 2 x 1.8 dBm detachable antenna
- ADSL2 /2+ Module: 1 x ADSL2+ Connector
- WPS and Reset Button: WPS Connection / Reset Router Settings to Factory Default
- On /Sleep Button: Green Function Button
- LED Indication Status: WAN / LAN1-LAN4 / WiFi / Power / ADSL
- Power Jack: DC Power Jack via external DC 12V/1.5A Switching Power Adapter
Wireless LAN / WiFi
- Standard: IEEE 802.11b/g/n compliance
- SSID: SSID broadcast or in stealth mode
- Channel: Auto-selection, manually
- Security: WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
- WPS: WPS (Wi-Fi Protected Setup)
- WMM: WMM (Wi-Fi Multimedia)
Functionality
- ADSL WAN: PPPoE / PPPoA / IPoA / Static IP / Dynamic IP
- WAN Connection: Auto-reconnect, dial-on-demand, manually
- One-to-Many NAT: Virtual server, special application, DMZ
- Smart Green: Standby Mode - Save 30% Energy
- SPI Firewall: IP/Service filter, URL blocking, MAC control
- DoS Protection: DoS (Denial of Service) Detection and Protection
- Routing Protocol: Static route, Dynamic route (RIP v1/v2)
- Management: SNMP, UPnP IGD, Syslog
- Administration: Web-based UI, Remote Login, Backup/Restore Setting
Fixed-network Broadband Gateway
Built-in NAT function for many PC’s or devices to share one IP internet address
Integrate with ADSL Module for internet WAN connection
USB Por for 3G Modem internet WAN connection like HSDPA, EVDO, TD-WCDMA
Automatic failure over support for main & backup access between USB and DSL Internet
Industrial Compliant Wireless LAN & LAN
802.11N Wireless LAN, Backwards compatible to IEEE 802.11b/g Standards
10/100M Ethernet LAN, Compliant with IEEE 802.3 and 802.3u Standards
Secure Network Connection
Establish secured Wireless Connection via WPS Function
Supports WEP, WPA-PSK / WPA2-PSK Wireless Security
Support NAT Firewall Features, with SPI function to protect against DoS Attacks
Support Internet Access control, URL Blocking & MAC Filtering
Advanced Networking Functions
Supports Multiple Sessions IPSec, L2TP and PPTP VPN Pass-through
Supports Virtual Server, ALG, DMZ and UPnP for Various Networking Applications
Supports QoS Mechanism for efficiently prioritizing the Various types of Traffic
Easy Installation & Management
Web-based UI Management and Ez Setup Installation Wizard
Intelligent Ez Setup Installation Wizard with Auto WAN Detection
Easy Firmware Upgrade & Save/Restore Settings to Flash Memory by Web UI
Smart Green Functions - Power Savings for a Greener Earth
Three-mode design to save power according to packet loading and user scenario
Save up to 30% under Standby mode with Auto Load Detection
Save up to 100% under Sleep mode with Smart Scheduling Management
Built-in Ethernet Switch supports Cable Length Dynamically and Link Down per Port Power Saving
