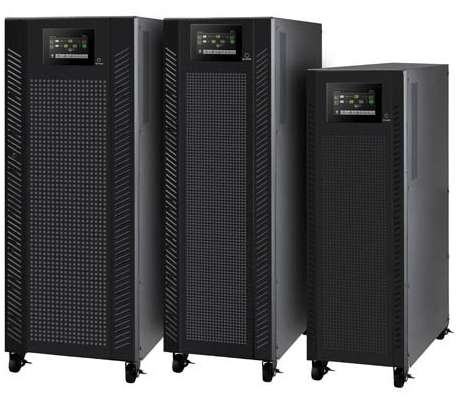

Mecer Galleon II 3P-3P 10K Online Tower 3 phase UPS PF1.0

Mecer Galleon II 3P/3P 10K / Online Tower 3 phase UPS PF1.0, 3-phase in / 3-phase out, Up to 6 units in parallel, Zero transfer time Inverter to bypass, Pure Sine Wave, 9 hours recover to 90% capacity typical recharge time, 12v/9ah battery TypeOverview:Galleon II 3P/3P 10K-80K PF1, three-level inverter, common batteryGalleon II 3P/3P 10K-80K provides better output power factor up to 1.0 with higher performance and efficiency for critical applications. Its same as Galleon series with programmable power management outlets which can extend available battery time to critical devices by shutting down unnecessary devices. This Galleon II 3P/3P 10K-80K series is also suitable for laser printer and ultrasound system load.Features:True double-conversionDSP technology guarantees high reliabilityOutput power factor 1.0Active power factor correction in all phases50hz/60hz frequency converter modeECO mode operation for energy savingEmergency power off function (EPO)Optional parallel operationSmart battery charger design to optimize battery performanceMaintenance bypass availableAdjustable battery designSpecifications:MODEL Galleon II-3/3 10K(L)CAPACITY 10 KVA / 10 KWPHASE 3-phase in/3-phase outPARALLEL CAPABILITY up to 6 units in parallelINPUTVoltage Range 190 - 520 VAC (3-phase) @ 50% load, 305 - 478 VAC (3-phase) @ 100% loadNominal Voltage 3 x 380/ 400/ 415 VAC ( 3 Ph+N)Frequency Range 40~70 HzPower Factor >= 0.99 @ 100% loadOUTPUTOutput Voltage 3 x 360*/380/400/415 (3 Ph +N)AC Voltage Regulation (Batt. Mode) ± 1%Frequency Range (Batt. Mode) 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 HzTransfer Time AC Mode to Battery Mode zeroTransfer Time Inverter to Bypass zeroWaveform (Batt. Mode) Pure Sine WaveCurrent Crest Ratio 3:1 (max.)Harmonic Distortion ? 2 % THD (Linear Load), ? 5 % THD (Non-linear Load)Frequency Range (Synchronized Range) 46~54Hz or 56~64HzOverload AC Mode 100-110% for 60 min, 110-125% for 10 min, >150% immediatelyOverload Battery Mode 100-110% for 60 min, 110-125% for 10 min, >150% immediatelyEFFICIENCYBattery Mode 96%ECO Mode 99%AC Mode 96%BATTERYModel-Battery Type Depending on the capacity of external batteriesModel-Charging Current (max.) 1A ~ 12A (Adjustable)Model-Charging Voltage +/-136.5 VDC ± 10%Model-Numbers (10+10) pcsBattery Type 12V/9AhCharging Current (max.) 1A~12A (Adjustable)Charging Voltage +/-136.5 VDC ± 10%Numbers (10+10)pcsTypical Recharge Time 9 hours recover to 90% capacityINDICATORSLCD Panel UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditionsENVIRONMENTOperating Temperature 0~40°COperating Humidity
