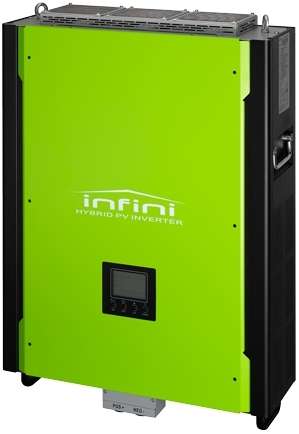

Mecer Infinisolar 15kW 3 phase Pure Sine Wave Hybrid Inverter, 3-phase in / 3-phase out, 22500W Maximum PV Input power, 15000W rated Output power, 15000 W Maximum charging power, 48 VDC nominal DC voltage
Overview:
InfiniSolar 10KW-15KW Hybrid inverter
InfiniSolar 10KW/15KW is a hybrid inverter which combines solar system, AC utility, and battery power source to supply continuous power. It is suitable for remote areas where the cost of utility is too high or emergency usage when utility is not stable.
Features:
Pure sine wave output
Self-consumption and Feed-in to the grid
Programmable supply priority for PV, Battery or Grid
User-adjustable battery charging current suits different types of batteries
Programmable multiple operation modes: Grid-tie, off-grid and grid-tie with backup
Built-in timer for various mode of on/off operation
Multiple communication for USB, RS-232, Modbus and SNMP
Monitoring software for real-time status display and control
Parallel operation up to 6 units
Specifications:
MODEL InfiniSolar 3P 15KW
PHASE 3-phase in/3-phase out
Maximum PV Input Power 22500W
Rated Output Power 15000W
Maximum Charging Power 15000 W
GRID-TIE OPERATION
PV INPUT (DC)
Nominal DC Voltage / Maximum DC Voltage 720 VDC / 900 VDC
Start-up Voltage / Initial Feeding Voltage 320 VDC / 350 VDC
MPPT Voltage Range 400 VDC~800 VDC
Number of MPP Trackers/Max. Input Current 2 / A: 37.65A, B: 18.6A
GRID OUTPUT (AC)
Nominal Output Voltage 230 VAC (P-N)/400 VAC (P-P)
Output Voltage Range 184-265 VAC* per phase
Nominal Output Current 21.7A per phase
Power Factor > 0.99
EFFICIENCY
Maximum Conversion Efficiency (DC/AC) 96%
European Efficiency@Vnominal 95%
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage / Auto Restart Voltage 120-140 VAC per phase / 180 VAC per phase
Acceptable Voltage Range 170-280 VAC per phase
Maximum AC Input Current 40A
PV INPUT (DC)
Maximum DC Voltage 900 VDC
MPPT Voltage Range 350 VDC ~ 850 VDC
Number of MPP Trackers/Max. Input Current 2 / A: 37.65A, B: 18.6A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage 230 VAC (P-N)/400 VAC (P-P)
Output Waveform Pure Sine Wave
Efficiency (DC to AC) 91%
HYBRID OPERATION
PV INPUT (DC)
Nominal DC Voltage / Maximum DC Voltage 720 VDC / 900 VDC
Start-up Voltage / Initial Feeding Voltage 320 VDC / 350 VDC
MPPT Voltage Range 350 VDC ~ 850 VDC
Number of MPP Trackers/Max. Input Current 2 / A: 37.65A, B: 18.6A
GRID OUTPUT (AC)
Nominal Output Current 14.5A per phase
Nominal Output Voltage 230 VAC (P-N)/400 VAC (P-P)
Output Voltage Range 184-264.5 VAC per phase
AC INPUT
AC Start-up Voltage / Auto Restart Voltage 120-140 VAC per phase / 180 VAC per phase
Acceptable Voltage Range 170-280 VAC per phase
Maximum AC Input Current 40A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage 230 VAC (P-N)/400 VAC(P-P)
Efficiency (DC to AC) 91%
BATTERY & CHARGER
Nominal DC Voltage 48 VDC
Maximum Charging Current Default 60A, 5A-300A (Adjustable)
GENERAL
PHYSICAL
Dimension, D X W X H (mm) 219 x 650 x 820
Net Weight (kgs) 62
INTERFACE
Communication Port RS-232, USB and Dry contact
Intelligent Slot Optional SNMP, Modbus and AS-400 cards available
ENVIRONMENT
Operating Humidity 0~90% RH (Non-condensing)
Operating Temperature -10 to 55 °C
Altitude 0~1000 m
