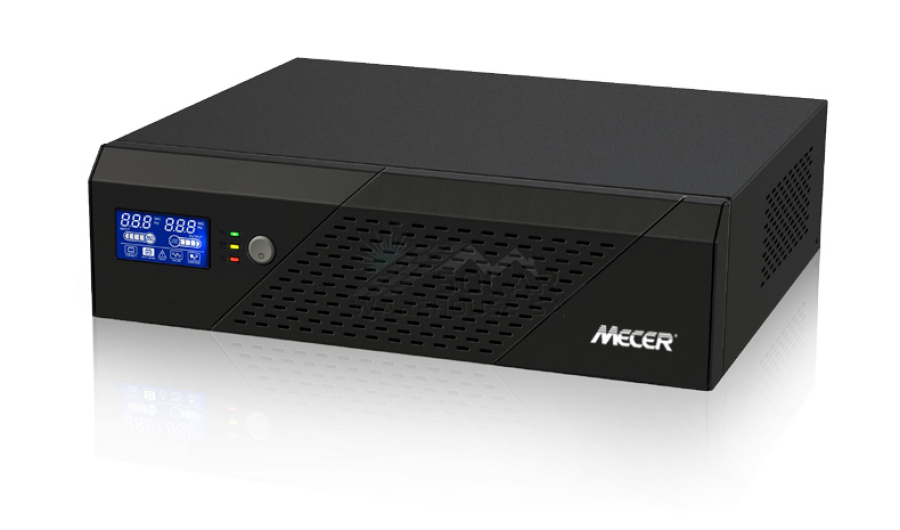

MECER 2400VA 1440W 24V INVERTER
SKU IVR-2400LBKS
Features / Detailed Supplier Specifications
Simulated sinewave inverter
Wide input voltage range
24 V DC
Overload and short circuit protection
LCD display for comprehensive information
| MODEL | IVR-2400LBKS | |
| CAPACITY | 2400VA/ 1440W | |
| INPUT | ||
| Voltage | 230 VAC | |
| Acceptable Voltage Range | 90-280 VAC | |
| Frequency | 50 Hz/60 Hz (Auto sensing) | |
| OUTPUT | ||
| AC Voltage Regulation (Batt. Mode) | 10% | |
| Efficiency (Peak) | 85% | |
| Transfer Time | 20 ms typical | |
| Waveform (Batt. Mode) | Simulated sine wave | |
| BATTERY & AC CHARGER | ||
| Battery Voltage | 24 VDC | |
| Floating Charge Voltage | 27.4 VDC 2% | |
| Low Battery Alarm Voltage | 20.4Vdc 2% | |
| Shutdown Voltage | 19.8Vdc 2% | |
| Overcharge Protection | 30.0Vdc 2% | |
| Maximum Charge Current | 10 A or 20 A (Selectable) | |
| PROTECTION | ||
| Full Protection | Overload, short circuit and polarity reverse protection | |
| PHYSICAL | ||
| Dimension, D X W X H (mm) | 300 x 360 x 88 | |
| Net Weight (kgs) | 4.8 | |
| OPERATING ENVIRONMENT | ||
| Humidity | 0 to 90% Relative Humidity(Non-condensing) | |
| Operating Temperature | 0 to 40 | |
| Storage Temperature | -15 to 50 | |
