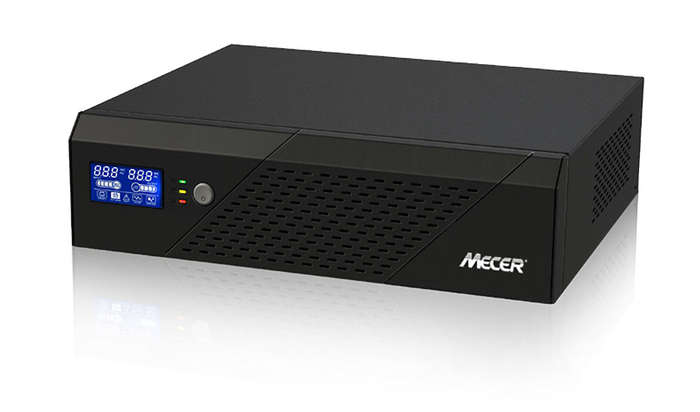

Mecer IVR-1200LBKS 1200VA, 720W, 12V DC-AC Inverter

Mecer 1200VA, 720W, 12V DC-AC Inverter with LCD Display. *Cables are included to connect to the battery, 1x cable to connect to a South African 3pin wall socket is included. Requires 1x 12V deep cycle battery (not included) *Please take note of battery connection polarity, or the blade fuses will blow inside the unit (+ Red, - Black). Output: 3-pin South African sockets at back of unit (SANS 164-1). SOLAR NOT AVAILABLE.
IVR-1200LBKS
Mecer IVR-1200LBKS 1200VA, 720W, 12V DC-AC Inverter
Mecer 1200VA, 720W, 12V DC-AC Inverter with LCD Display. *Cables are included to connect to the battery, 1x cable to connect to a South African 3pin wall socket is included. Requires 1x 12V deep cycle battery (not included) *Please take note of battery connection polarity, or the blade fuses will blow inside the unit (+ Red, - Black). Output: 3-pin South African sockets at back of unit (SANS 164-1). SOLAR NOT AVAILABLE.
Features:
Simulated sinewave inverter
Wide input voltage range
12VDC or 24VDC available
Overload and short circuit protection
LCD display for comprehensive information
Note: Connect RED cable to (+) on battery and the (+) on the unit, and BLACK cable to (-) on battery and the (-) on the unit. Place cable lug directly onto the battery terminal first, follow up with the washer and then the lock washer, and then the nut. Do not put a washer between the battery terminal and cable. Connect the positive cable first. Follow instructions in manual. Solar not available on 1200VA model.
FAQ:Does this product function like a ups?Yes, it does function similar to a UPS, without the constant beeping.Can I have everything connected to it and as soon as electricity goes then it'll power up from batteries and when electricity resumes it'll get charged automatically?Yes, you have 220V outlets, and you can leave everything plugged in. When power goes out, everything continues to work without interruption.
Product Code
IVR-1200LBKS
MODEL
IVR-1200LBKS
CAPACITY
1200VA/ 720W
INPUT
Voltage
230 VAC
Acceptable Voltage Range
90-280 VAC
Frequency
50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)
± 10%
Efficiency (Peak)
82%
Transfer Time
20 ms typical
Waveform (Batt. Mode)
Simulated sine wave
BATTERY & AC CHARGER
Battery Voltage
12 VDC
Floating Charge Voltage
13.7 VDC ±2%
Low Battery Alarm Voltage
10.2Vdc ±2%
Shutdown Voltage
9.9Vdc ±2%
Overcharge Protection
15.0Vdc ±2%
Maximum Charge Current
10 A or 20 A (Selectable)
SOLAR CHARGER (Optional)
Note
Solar Charge controller not included, will request to purchase separately
Maximum PV Array Open Circuit Voltage
40 VDC
Operating Voltage Range
15~18 VDC
